2002 Kawasaki W650 (Canada Only) Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

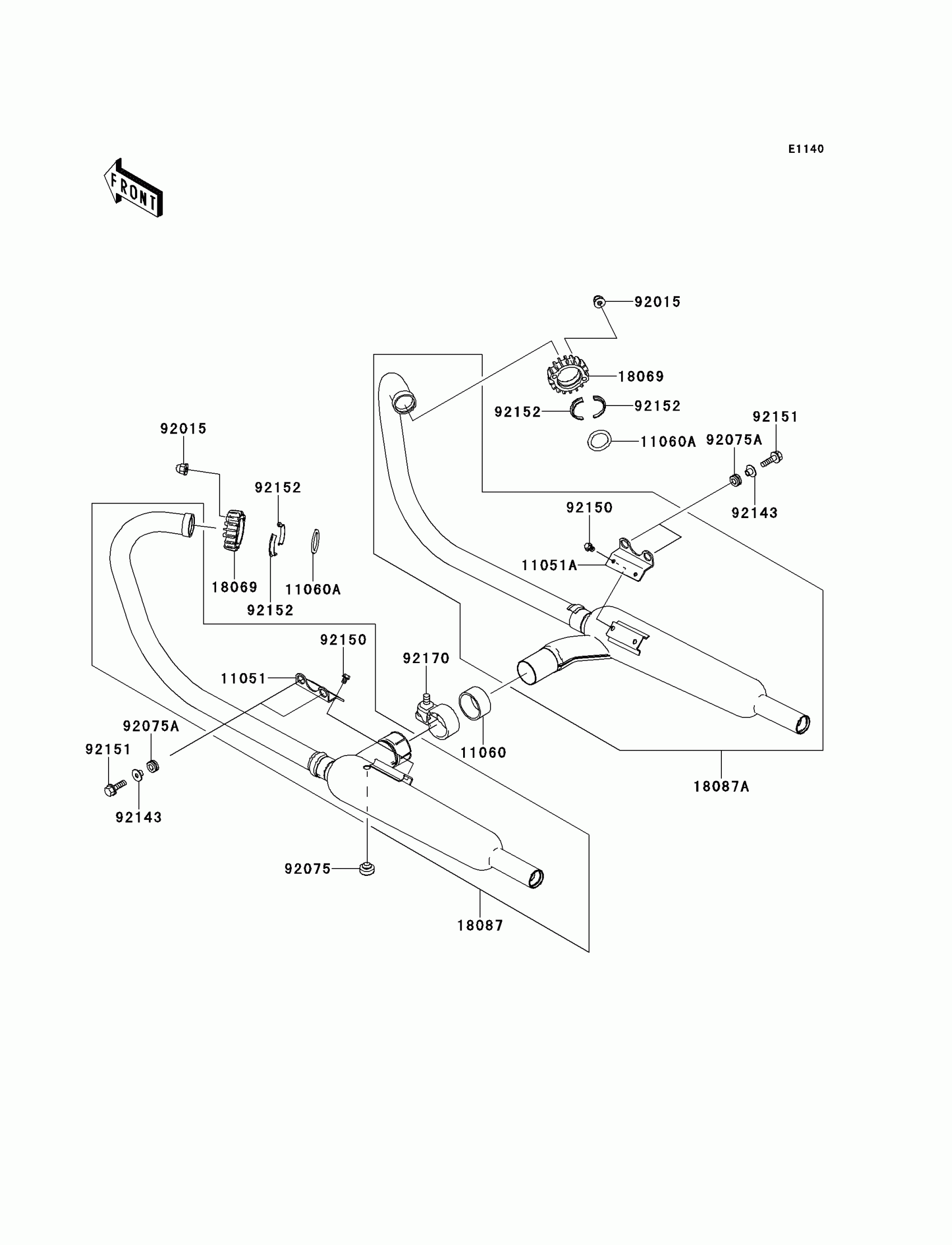

2002 Kawasaki W650 (Canada Only) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET,LH

11051-1214

1

$9.36

In stock

11051A

BRACKET,RH

11051-1215

1
Out of stock

11060

1

$26.99

In stock

11060A

1

$6.49

In stock

18069

HOLDER-EXHAUST PIPE

18069-1150

1

$29.74

In stock

18087

MUFFLER,LH

18087-1102

1

$855.57

In stock

18087A

MUFFLER,RH

18087-1103

1

$771.42

In stock

92015

NUT,CAP,8MM

92015-1371

1

$3.97

In stock

92075

DAMPER

92075-1045

1

$7.04

In stock

92075A

DAMPER

92075-1898

1

$3.72

In stock

92143

COLLAR

92143-1753

1

$6.24

In stock

92150

BOLT,8X12

92150-1780

1

$4.16

In stock

92151

BOLT,8X22

92151-1477

1

$2.29

In stock

92152

COLLAR,EXHAUST PIPE

92152-1149

1

$1.97

In stock

92170

1

$26.31

In stock
