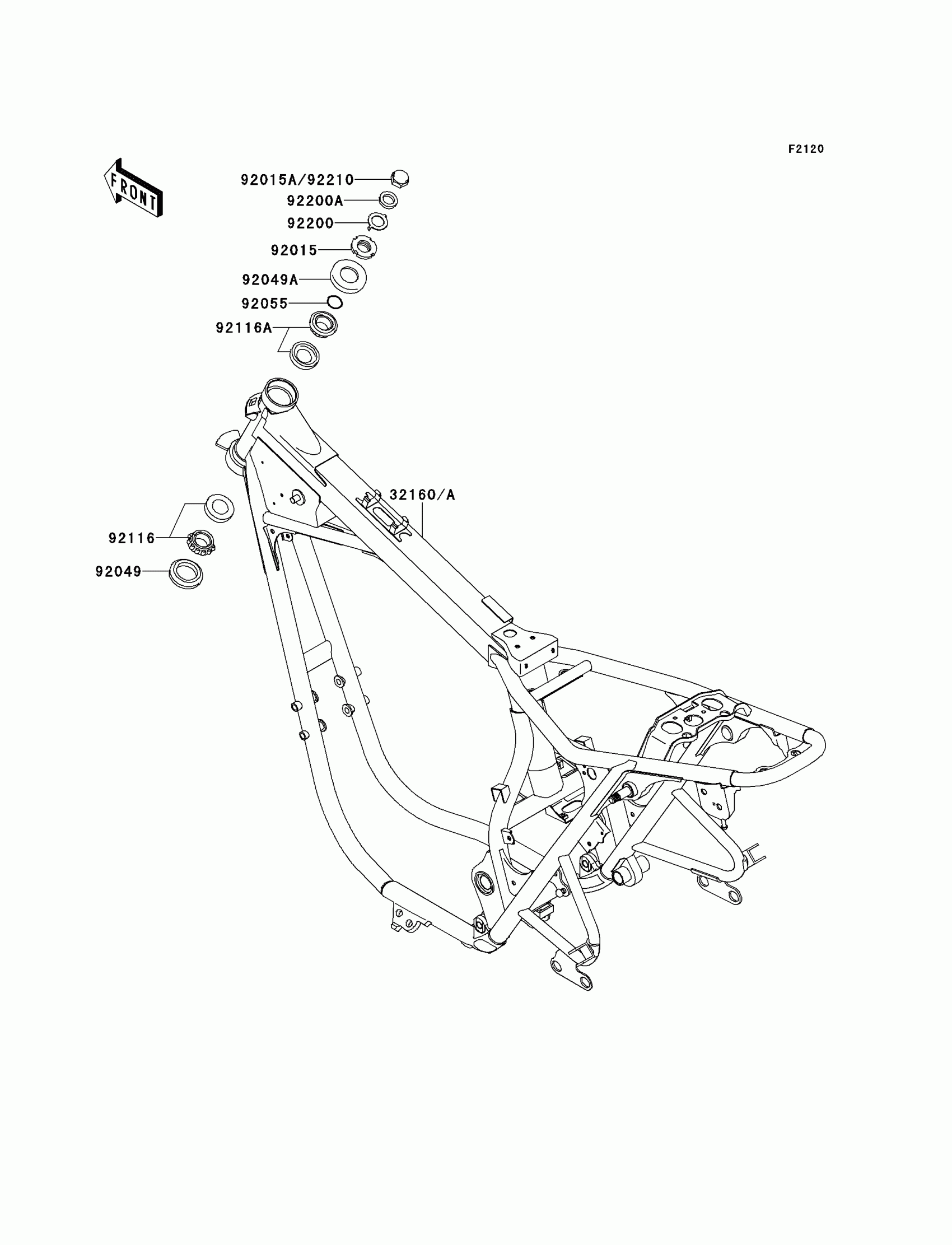

Kawasaki W650 (Canada Only) Frame Diagram

#

Description
Price

32160A

FRAME-COMP

32160-1708

Unavailable

92015

NUT,25MM,T=12

92015-1546

$19.66

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$7.08

92049A

SEAL-OIL,STEERING STEM

92049-1214

$12.66

92055

RING-O,ID=24.5

92055-1459

$3.60

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$32.44

92116A

BEARING-ROLLER,HI-CAP32005JR-1

92116-1056

$43.76

92200

WASHER,CLAW,18.5X30X2.3

92200-1357

$7.49

92200A

WASHER,19X32X2.6

92200-1489

$1.35

92210

NUT,CAP,18MM

92210-1287

$18.03
