2002 Kawasaki W650 (Canada Only) Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

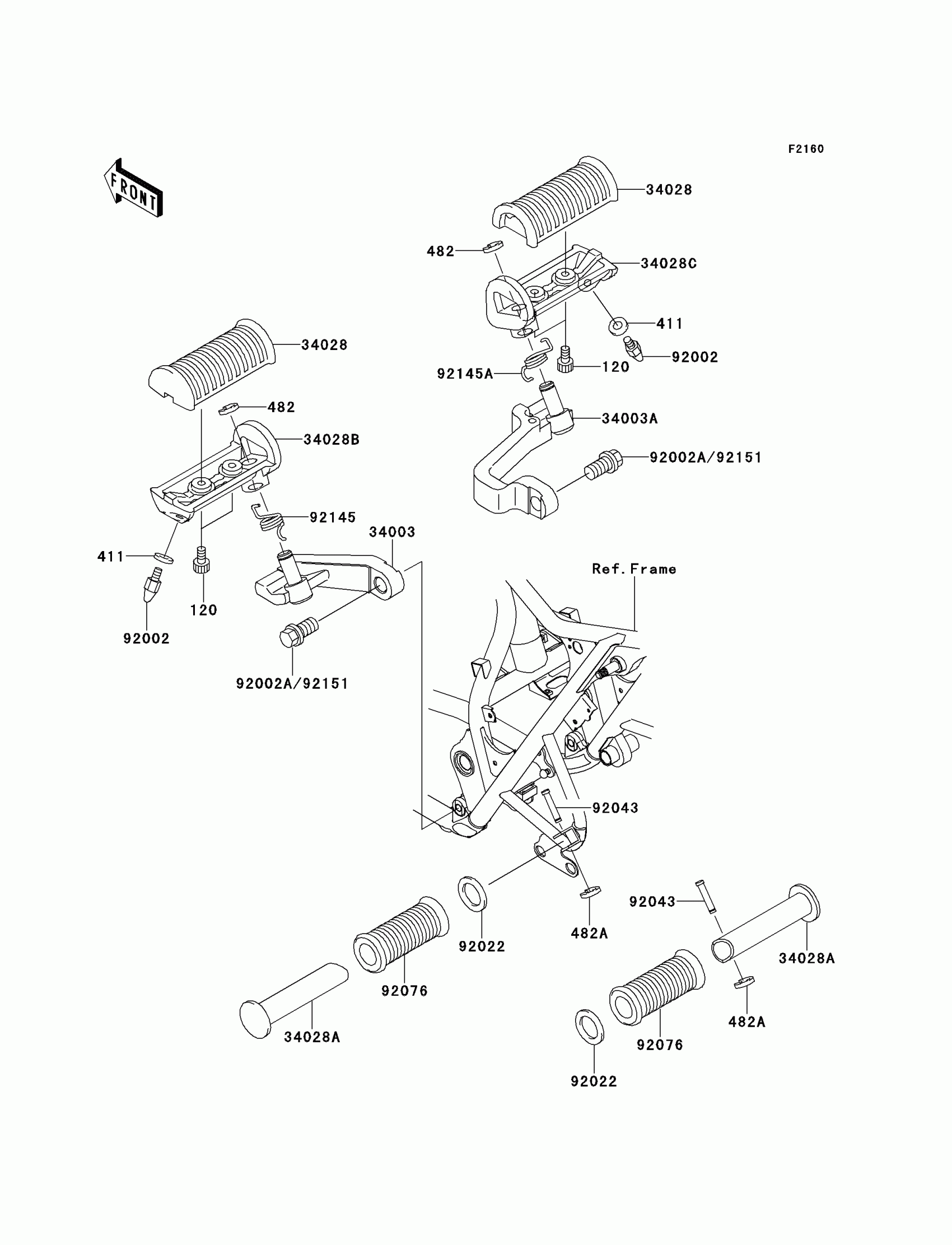

2002 Kawasaki W650 (Canada Only) Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

411

WASHER PLAIN

411F0600

1

$1.08

In stock

482

1

$0.98

In stock

482A

1

$1.20

In stock

34003

HOLDER-STEP,FR,LH

34003-1491

1

$122.29

In stock

34003A

HOLDER-STEP,FR,RH

34003-1492

1

$122.29

In stock

34028

STEP,RUBBER

34028-1372

1

$22.15

In stock

34028A

STEP,RR

34028-1373

1

$29.50

In stock

34028B

STEP,FR,LH

34028-1477

1

$51.68

In stock

34028C

STEP,FR,RH

34028-1478

1

$51.68

In stock

92002

BOLT,BANK SENSOR

92002-1742

1
Out of stock

92022

WASHER,20X30X2.3

92022-1568

1

$3.85

In stock

92043

PIN,6X30

92043-1607

1

$4.46

In stock

92076

DAMPER

92076-020

1

$22.91

In stock

92145

SPRING,STEP RETURN,LH

92145-1217

1
Out of stock

92145A

1

$5.78

In stock

92151

BOLT,FLANGED,12X30

92151-1942

1

$8.90

In stock
