2002 Kawasaki W650 (Canada Only) Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

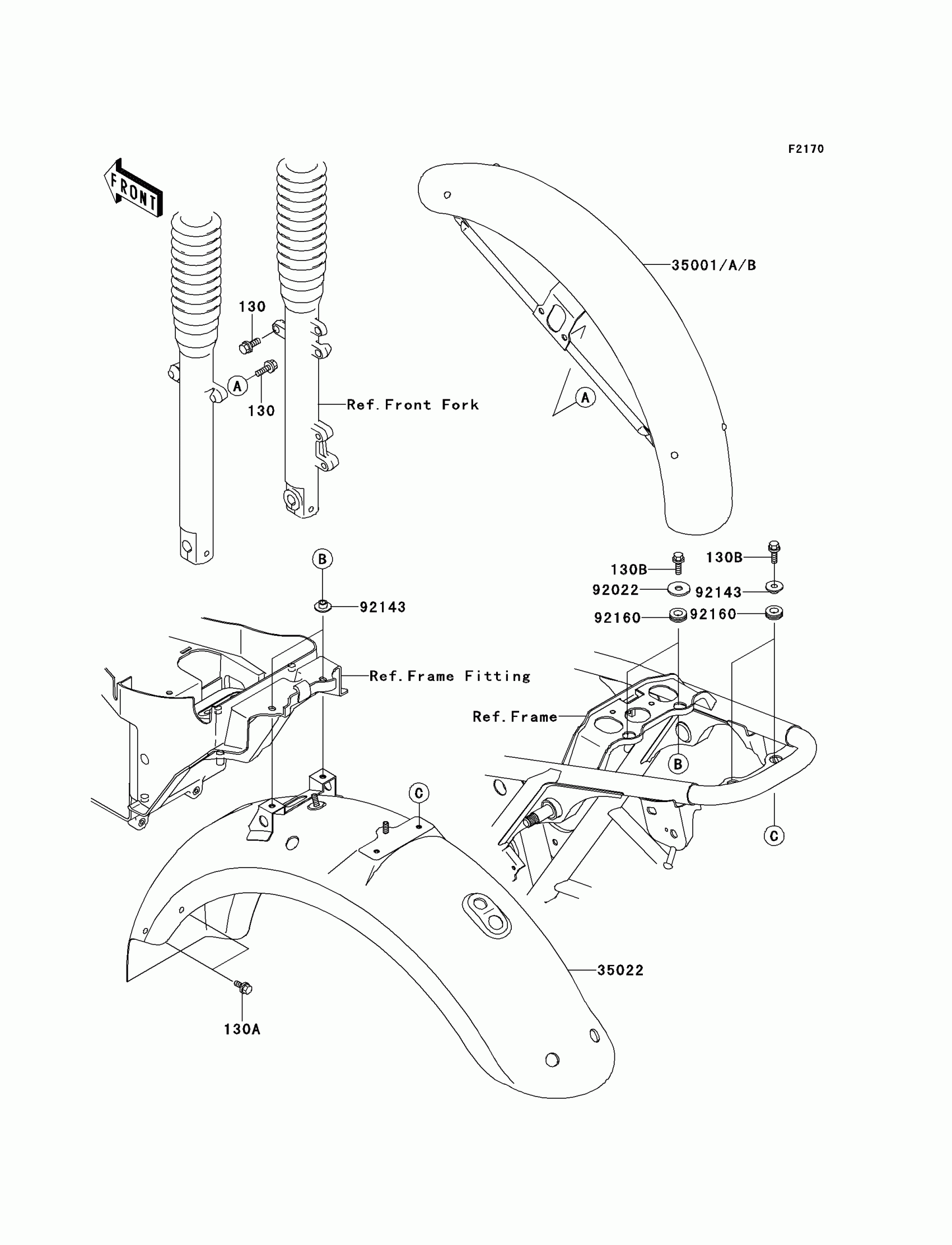

2002 Kawasaki W650 (Canada Only) Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130H0814

1
Out of stock

130A

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130B

BOLT-FLANGED

130J0620

1
Out of stock

35001B

FENDER-ASSY-FRONT

35001-1208

1
Out of stock

35022

FENDER-COMP-REAR

35022-1343

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92143

COLLAR,L=7.4

92143-1019

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock
