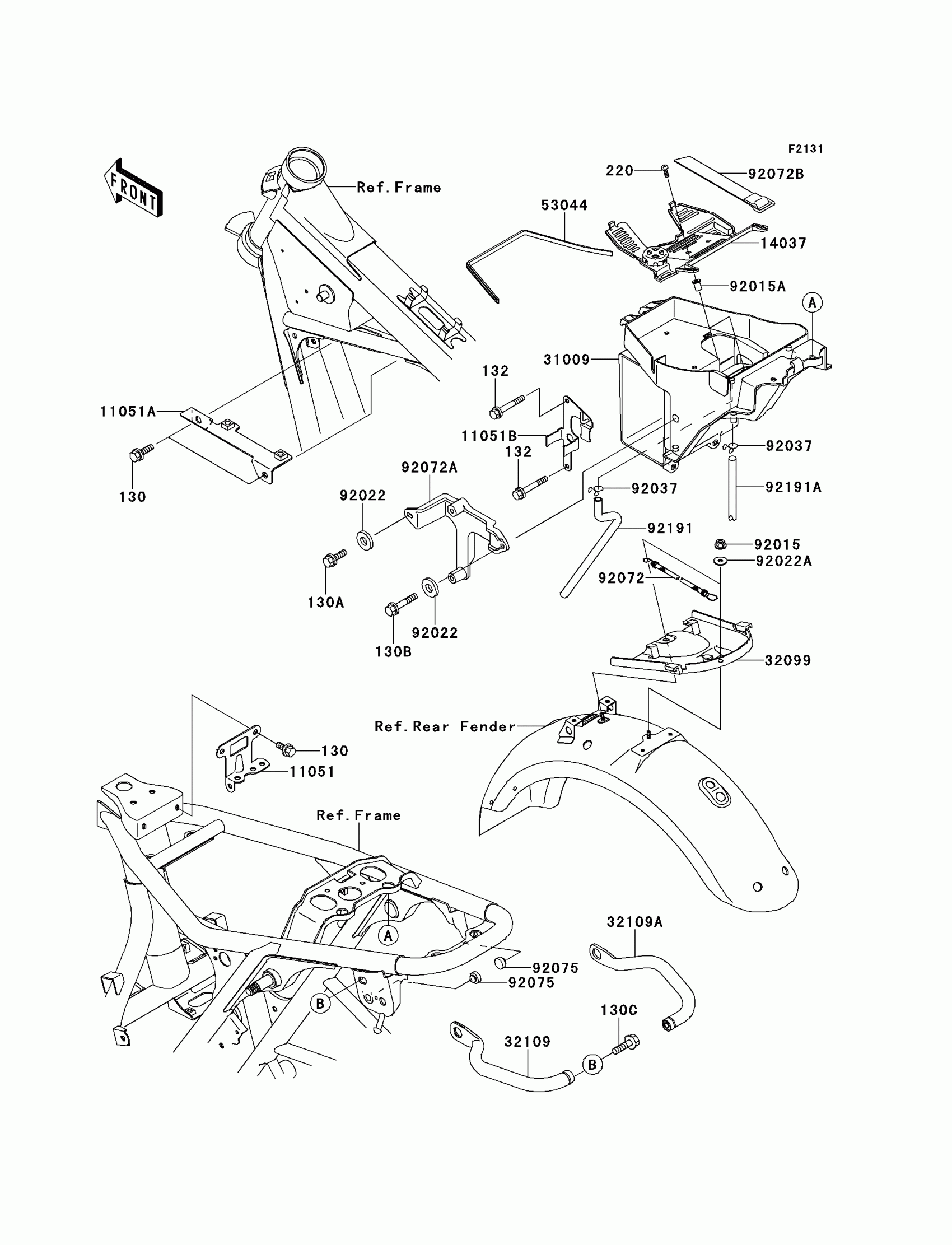

Find the part on the Frame Fittings diagram for your 2002 Kawasaki W650 (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki W650 (Canada Only) Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130J0610

1
Out of stock

130A

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130B

BOLT-FLANGED,6X25

130J0625

1
Out of stock

130C

BOLT-FLANGED,8X20

130J0820

1
Out of stock

132

BOLT-FLANGED-SMALL,6X40

132J0640

1
Out of stock

220

SCREW-PAN-CROS,6X16,BLACK

220C0616

1
Out of stock

11051

BRACKET

11051-1262

1
Out of stock

11051A

BRACKET,IGNITION COIL

11051-1549

1
Out of stock

11051B

BRACKET,RELAY

11051-1559

1
Out of stock

14037

SCREEN

14037-1276

1
Out of stock

31009

CASE-COMP-BATTERY

31009-1055

1
Out of stock

32099

CASE,U LOCK

32099-1202

1
Out of stock

32109

GRIP-FRAME,LH

32109-1287

1
Out of stock

32109A

GRIP-FRAME,RH

32109-1288

1
Out of stock

53044

TRIM,L=350

53044-1290

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015A

NUT

92015-1700

1
Out of stock

92022

WASHER,7X16X1.2

92022-1344

1
Out of stock

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92072

BAND,U LOCK CASE

92072-1369

1
Out of stock

92072A

BAND,BATTERY

92072-1370

1
Out of stock

92072B

BAND,L=410

92072-1371

1
Out of stock

92075

DAMPER,9X24X14

92075-281

1
Out of stock

92191

TUBE,DRAIN,L=215

92191-1396

1
Out of stock

92191A

TUBE,7X10X50

92191-1420

1
Out of stock
