2025 Kawasaki W230 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

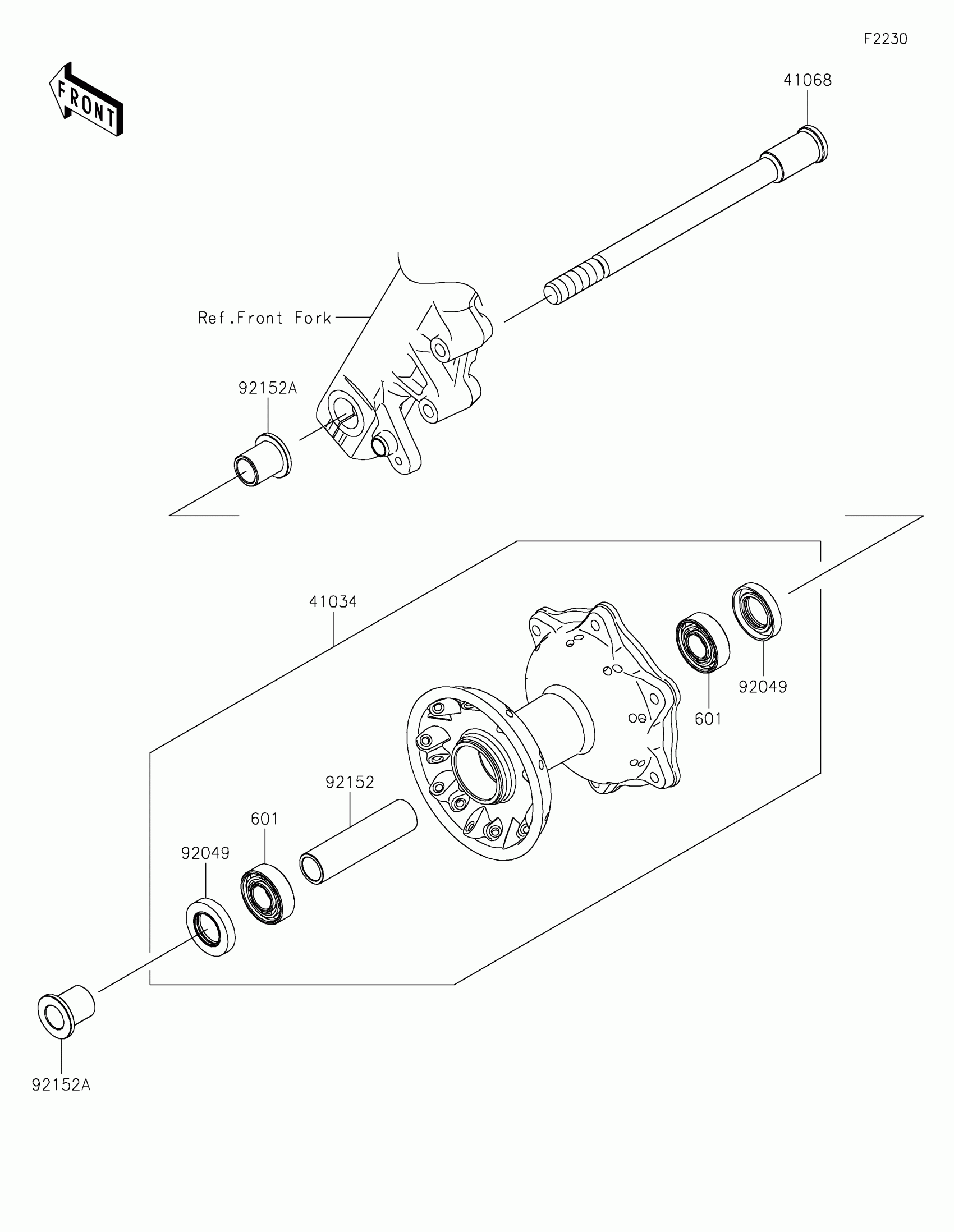

2025 Kawasaki W230 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,FR,P.SILVER

41034-0626-458

1

$496.15

In stock

41068

AXLE,FR

41068-0073

1

$56.81

In stock

92049

SEAL-OIL

92049-0114

1
Out of stock

92152

COLLAR,15.2X20X79

92152-2543

1

$20.25

In stock

92152A

1

$16.03

In stock

601

BEARING-BALL

601B6202UU

1

$20.38

In stock
