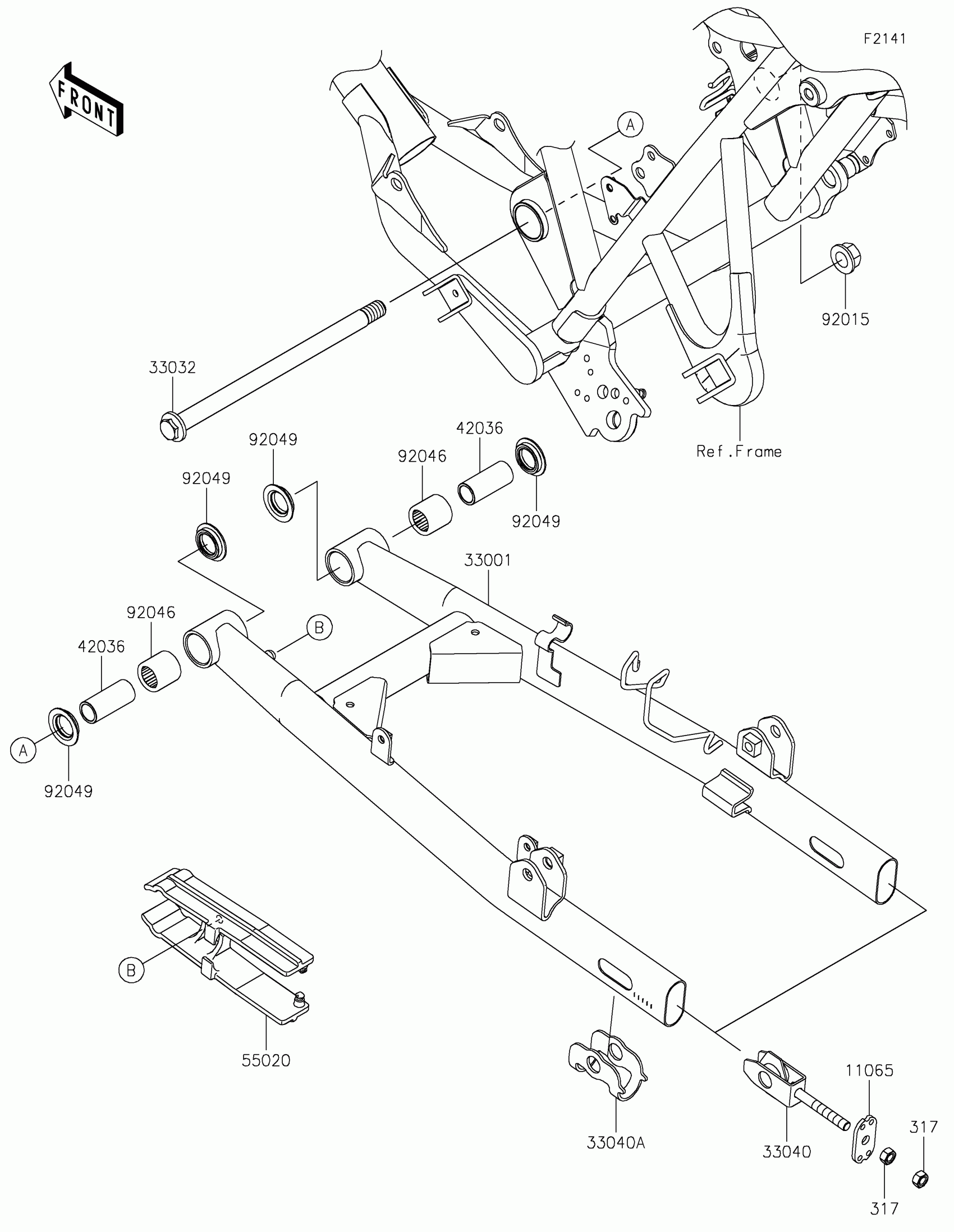

Find the part on the Swingarm diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki W230 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,CHAIN ADJUSTER

11065-0813

1

$3.64

In stock

33001

ARM-COMP-SWING

33001-0767

1

$414.81

In stock

33032

1

$43.10

In stock

33040

1

$19.08

In stock

33040A

ADJUSTER-CHAIN,OUTER

33040-1167

1
Out of stock

42036

SLEEVE,15X20X46

42036-0908

1

$21.39

In stock

55020

GUARD,CHAIN

55020-2482

1

$25.51

In stock

92015

NUT,14MM

92015-1407

1

$7.86

In stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

317

NUT-HEX-SMALL,8MM

317AA0800

1

$0.73

In stock
