2022 Suzuki VZR1800BZM2 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2022 Suzuki VZR1800BZM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

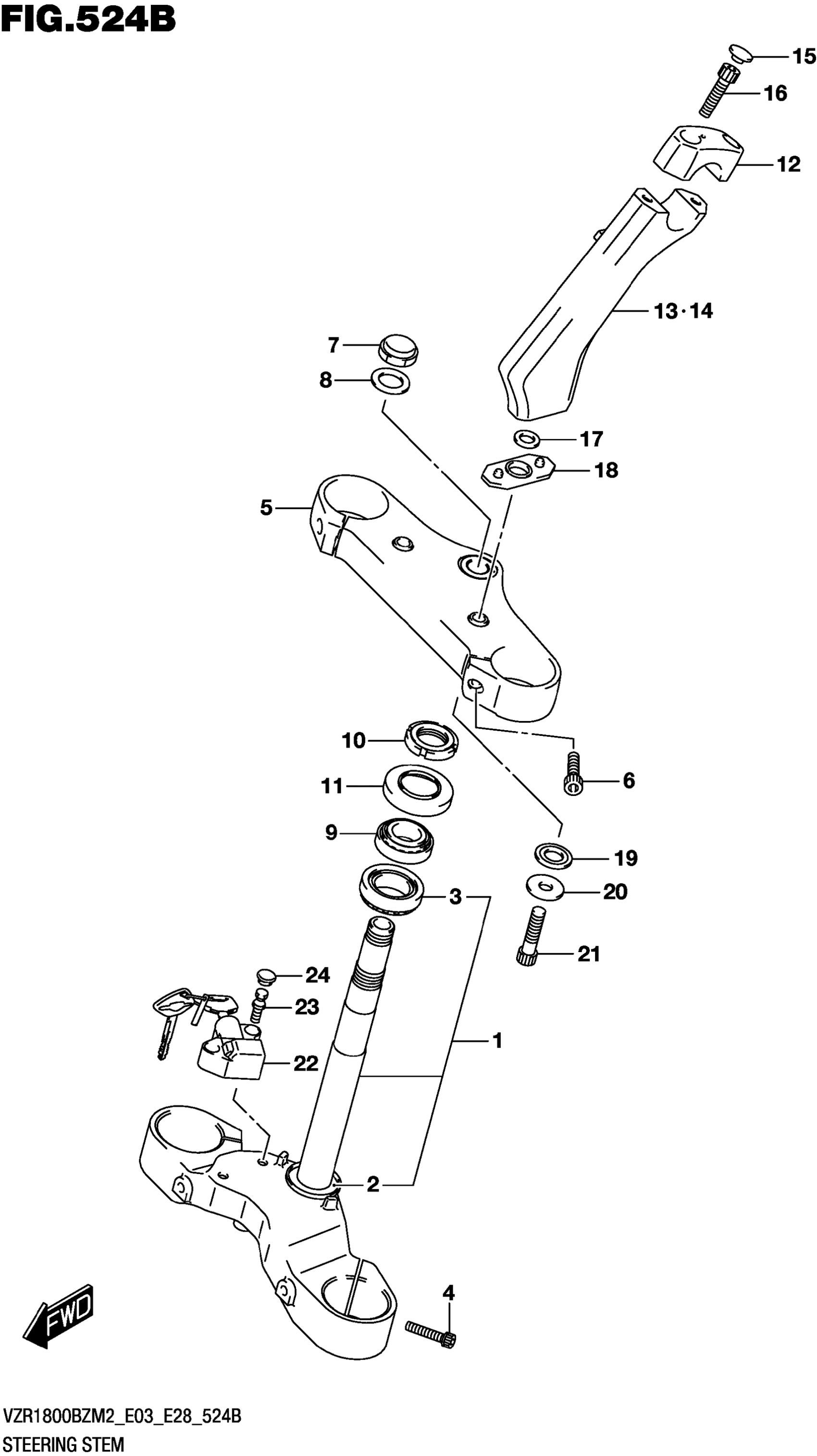

2022 Suzuki VZR1800BZM2 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,UNDER

51410-48G30

1
Out of stock

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

1
Out of stock

3

.BEARING (30X55X17)

09265-30020

1
Out of stock

4

BOLT (8X40)

51328-44G10

541
Out of stock

5

BRACKET,UPPER

51311-48G30

1
Out of stock

6

BOLT

51321-44G00

2
Out of stock

7

NUT,CAP

51353-24B00

1
Out of stock

8

WASHER

51356-48G30

1
Out of stock

9

BEARING (25X47X15)

09265-25038

1
Out of stock

10

NUT,STEERING STEM

51631-31F00

1
Out of stock

11

SEAL,DUST

51643-40503

1
Out of stock

12

HOLDER,HANDLE

56211-48G30

2
Out of stock

13

HOLDER,HANDLE RH

56224-48G30

1
Out of stock

14

HOLDER,HANDLE LH

56225-48G30

1
Out of stock

15

CAP (OD:14.5)

09250-06004

4
Out of stock

16

BOLT (8X40)

51328-44G10

541
Out of stock

17

WASHER

51354-48G00

2
Out of stock

18

RUBBER,HANDLE HOLDER

56245-48G00

2
Out of stock

19

RUBBER,HANDLE LOWER

56245-39G20

2
Out of stock

20

WASHER

51355-48G00

2
Out of stock

21

BOLT

51226-48G00

2
Out of stock

22

LOCK SET,STEERING

51900-48810

1
Out of stock

23

SCREW,STEERING LOCK

51925-48G00

2
Out of stock

24

PLUG,STEERING LOCK

51926-48G00

2
Out of stock
