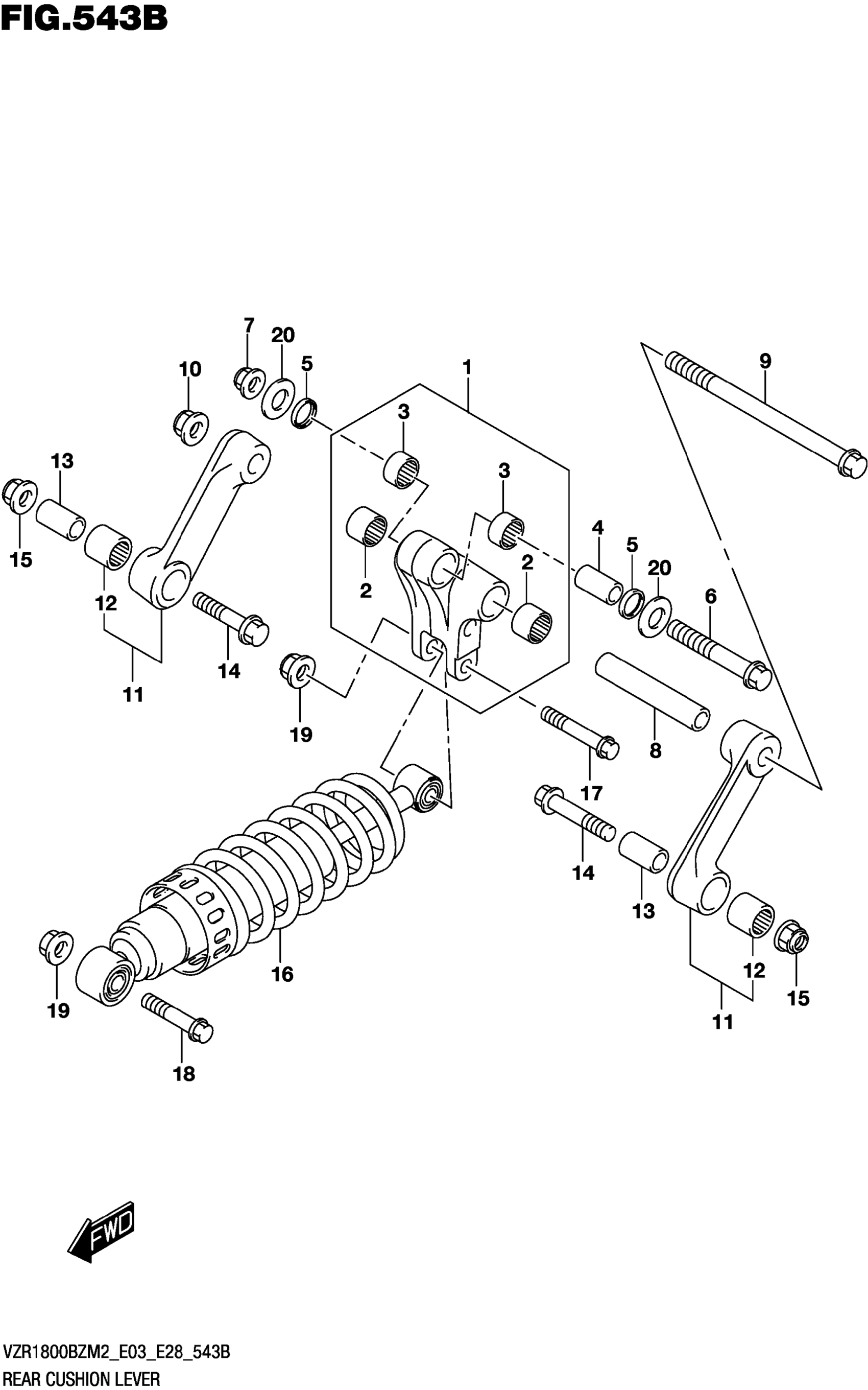

Suzuki VZR1800BZM2 (2022) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,RR CUSHION

62600-48871

$434.38

2

.BEARING

09263-20116

$28.11

3

.BEARING (20X26X14)

09263-20090

$14.85

4

SPACER,RR CUSHION LEVER UPPER

62684-48G00

Unavailable

5

OIL SEAL (20X26X4)

09284-20003

$7.03

6

BOLT,REAR CUSHION LEVER,FRONT

62658-33D00

Unavailable

7

NUT

08319-3114A

$8.84

8

SPACER (14X20X102)

09180-14018

Unavailable

9

BOLT,RR CUSHION LEVER LOWER

62621-48G00

$30.92

10

NUT

08319-3114A

$8.84

11

ROD SET,RR CUSHION

62600-48881

$183.95

12

.BEARING

09263-20116

$28.11

13

SPACER (14X20X34)

09180-14014

$19.02

14

BOLT (14X66)

09103-14016

Unavailable

15

NUT

08319-3114A

$8.84

16

ABSORBER ASSY,RR SHOCK

62100-48GB1

$921.53

17

BOLT,RR CUSHION LEVE,FRONT (1

62658-01C60

$15.28

18

BOLT (12X57)

09103-12042

$9.23

19

NUT

09159-12056

$6.65

20

WASHER

08211-14341

$3.72
