Description

Price

1

WHEEL,RR (BLACK)

64111-48G10-019

Unavailable

2

BUSH (12X41X34)

09319-12019

$12.00

3

SPACER,REAR WHEEL BEARING

64731-48G00

$81.65

4

.BEARING (25X52X15)

09262-25186

$40.52

5

BEARING,REAR WHEEL,L

08143-6205B

$26.22

6

.SEAL,OIL (32X52X7)

09285-32004

$7.20

7

DISC,RR BRAKE

69210-10F60

$322.53

8

BOLT (8X21)

09106-08160

$3.22

9

BRACKET,REAR CALIPER

69721-48G10

Unavailable

10

BOLT (12X40)

09103-12109

$5.75

11

AXLE,REAR

64711-48G00

$242.02

12

SPACER,REAR AXLE RH

64741-48G00

$29.88

13

SPACER,REAR AXLE LH

64772-48G00

$45.40

14

NUT

64721-13K00

$11.54

15

WASHER (22X35X2)

09160-22081

$2.80

16

JOINT ASSY,REAR HUB DRIVEN

64680-48G00

$425.25

17

O-RING (D:2.4,ID:79.8)

09280-80001

$3.52

18

BOLT (6X16)

09119-06049

$1.63

19

WASHER,REAR HUB DRIVEN JOINT

64679-48G00

$7.10

20

WASHER,THRUST

64677-48G10

$8.37

21

TIRE,REAR (240/40R18M/C 79V)

65110-48G01

$1,030.53

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

23-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

23-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

23-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93

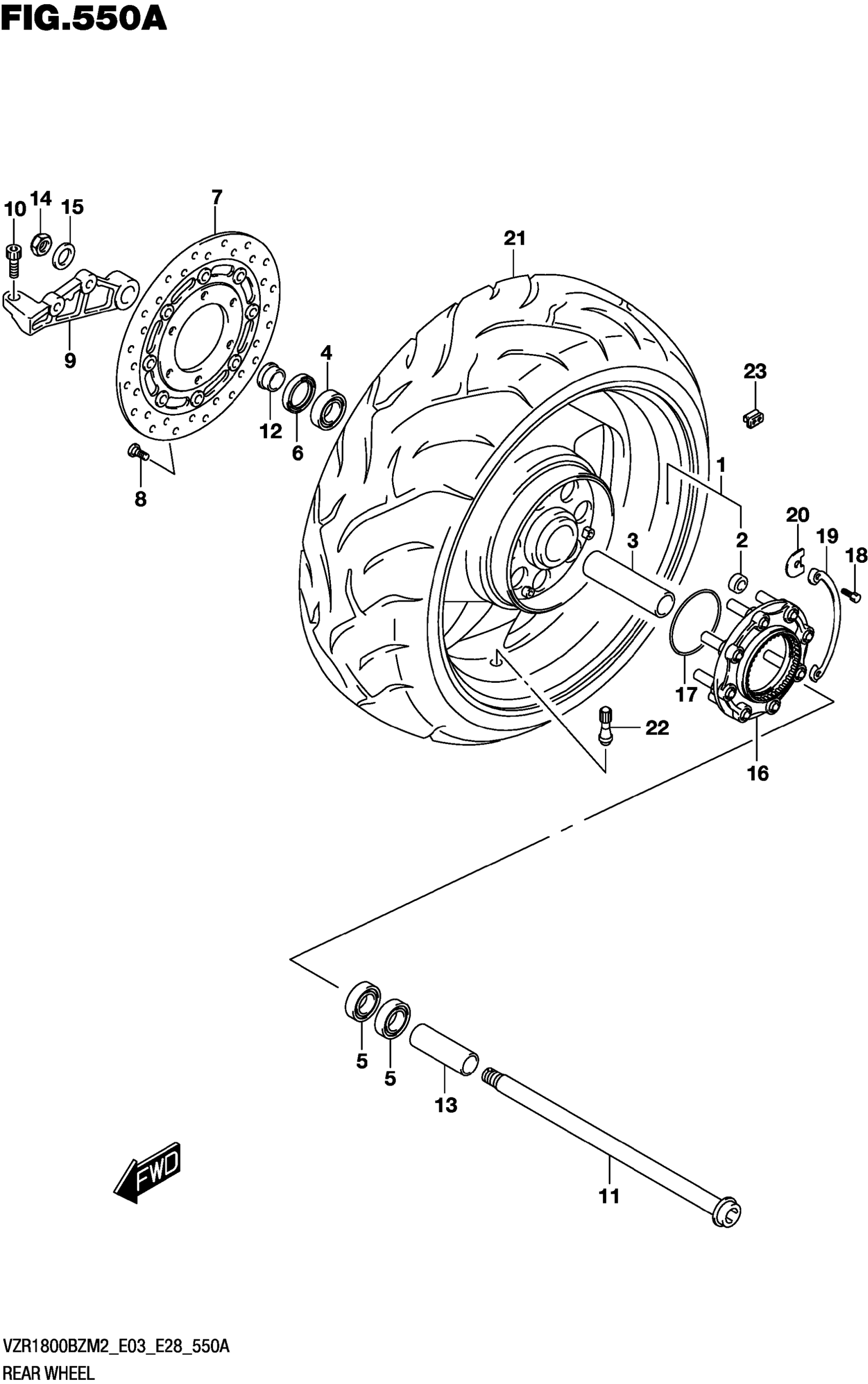

Suzuki VZR1800BZM2 (2022) REAR WHEEL Diagram
