Description

Price

1

GRIP,THROTTLE

57110-26D11

$41.38

2

LEVER ASSY,BRAKE

57300-48G20

$116.18

3

.BOLT,PIVOT

57431-48G00

$10.42

4

.NUT

08319-2106A

$1.97

5

SWITCH ASSY,FR BRAKE

57460-14J02

$36.79

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

7

GRIP,L

57210-26D01

$28.92

8

CAP,GRIP,END

57216-38A00

$6.91

9

LEVER ASSY,CLUTCH

57500-48G33

$92.92

10

.LEVER,CLUTCH

57621-48G20

$34.69

11

.BOLT,LEVER PIVOT

57531-48G00

$42.35

12

.COLLAR

57623-48G00

$33.85

13

NUT

08319-3106A

$2.09

14

.ADJUSTER,WIRE

57441-08C01

$11.13

15

..NUT,LOCK

57442-08C01

$8.01

16

.SWITCH ASSY,CLUTCH

57560-05A10

$30.34

17

.SCREW,CLUTCH SWITCH

57562-41G01

$10.82

18

.BOLT

07130-06207

$2.88

19

COVER,CLUTCH LEVER

57541-48G11

$10.54

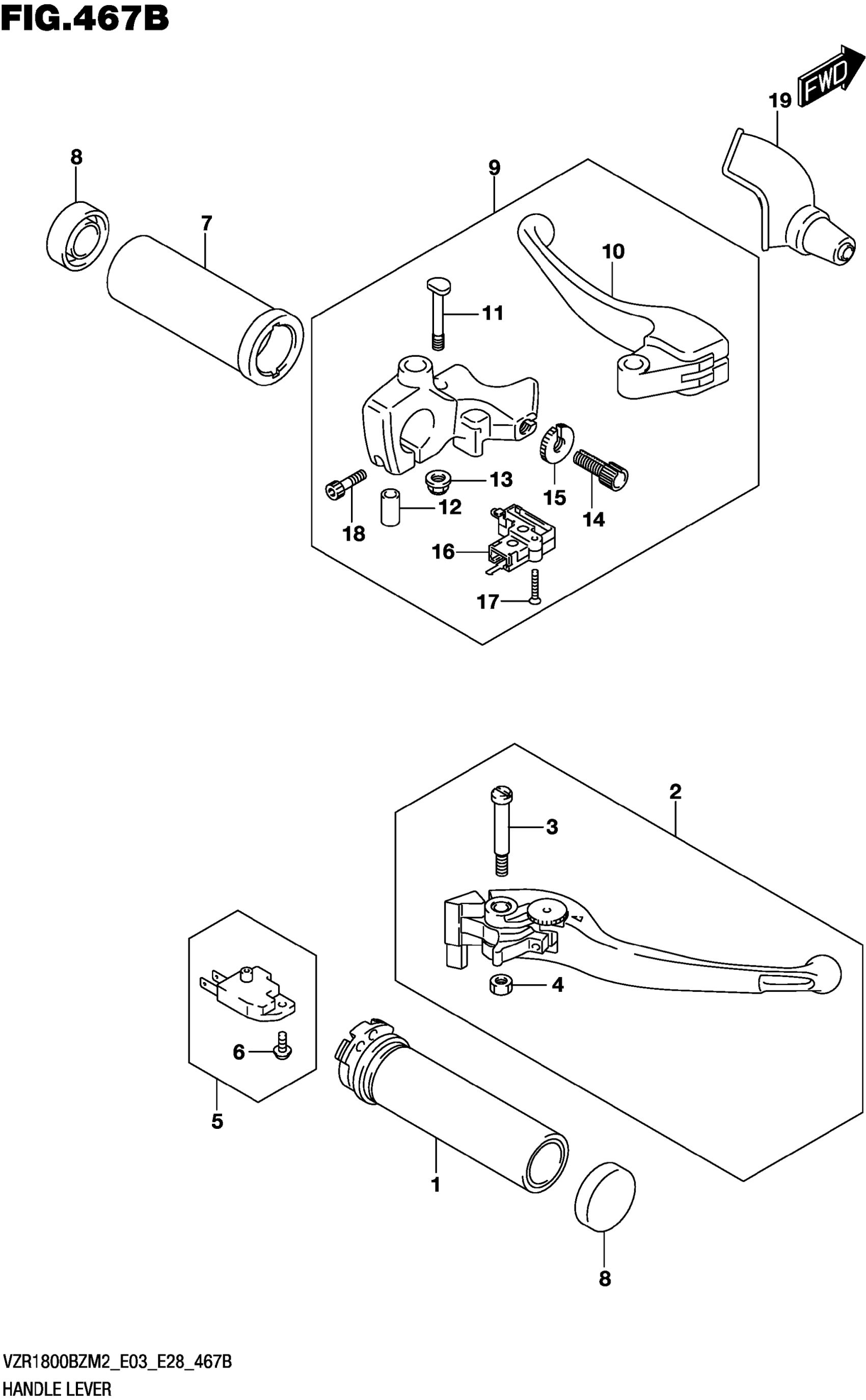

Suzuki VZR1800BZM2 (2022) HANDLE LEVER Diagram
