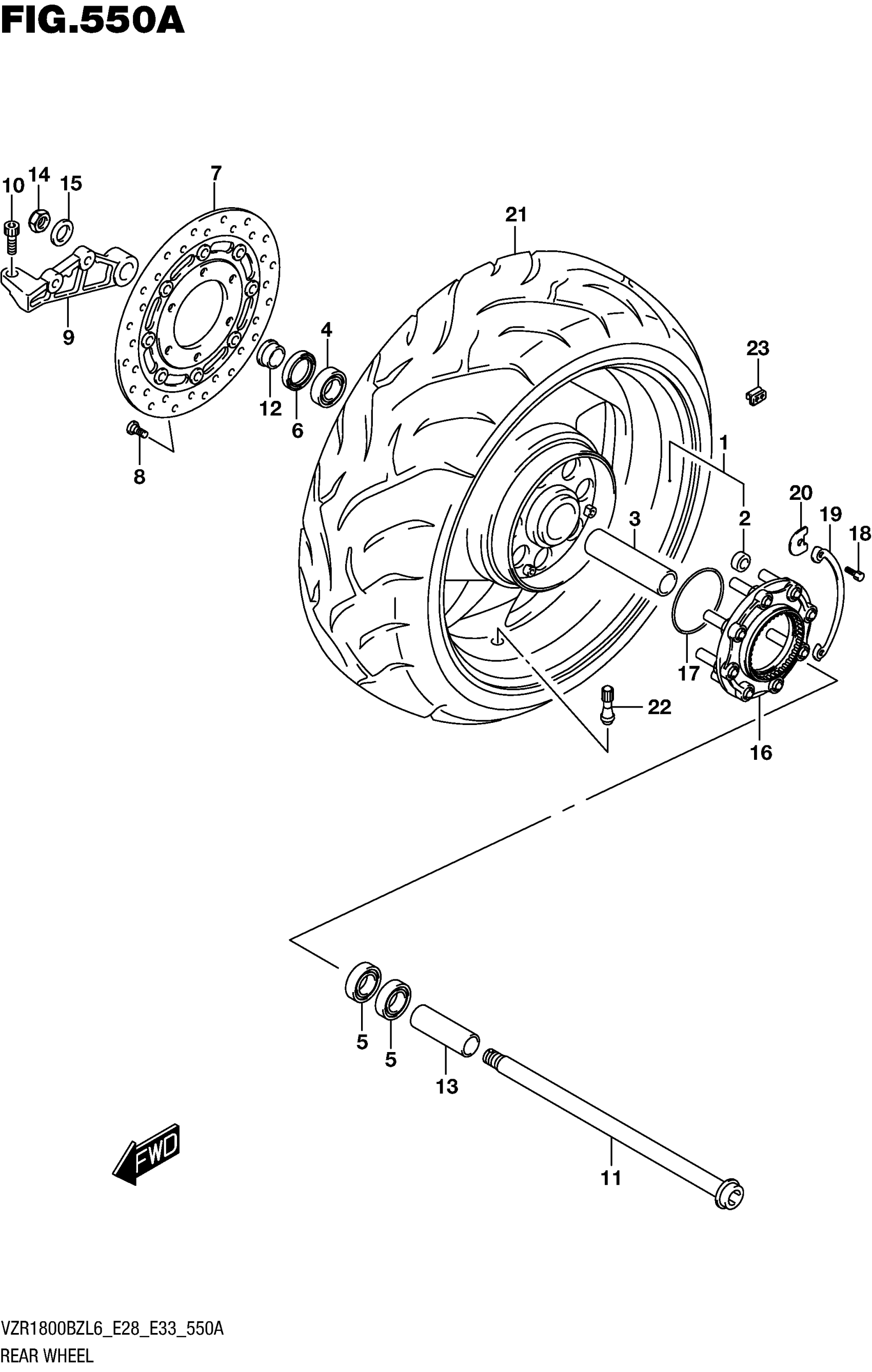

Find the part on the Rear Wheel diagram for your 2016 Suzuki VZR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki VZR1800 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL SET, REAR (18M/CXMT8.5)

64100-48820-019

1
Out of stock

1

(BLACK)

64100-48820-019

1
Out of stock

2

.BUSH

09319-12019

8
Out of stock

3

SPACER, REAR WHEEL BEARING

64731-48G00

1
Out of stock

4

BEARING (25X52X15) | RH

09262-25072

1
Out of stock

5

BEARING (25X52X15) | LH

08143-62057

2
Out of stock

6

.SEAL,OIL (32X52X7)

09285-32004

1
Out of stock

7

DISC, REAR BRAKE

69210-10F60

1
Out of stock

8

BOLT (8X21)

09106-08160

6
Out of stock

9

BRACKET, REAR CALIPER

69721-48G10

1
Out of stock

10

BOLT (12X40)

09103-12109

1
Out of stock

11

AXLE, REAR

64711-48G00

1
Out of stock

12

SPACER, REAR AXLE, RH

64741-48G00

1
Out of stock

13

SPACER, REAR AXLE, LH

64772-48G00

1
Out of stock

14

NUT

09159-22007

1
Out of stock

15

WASHER (22X35X2)

09160-22081

1
Out of stock

16

JOINT ASSY, REAR HUB DRIVEN

64680-48G00

1
Out of stock

17

O RING (D:2.4,ID:79.8)

09280-80001

1
Out of stock

18

BOLT (6X16)

09119-06049

4
Out of stock

19

WASHER, REAR HUB DRIVEN JOINT

64679-48G00

2
Out of stock

20

WASHER, THRUST

64677-48G10

4
Out of stock

21

TIRE, REAR | DUNLOP

65110-48G01

1
Out of stock

21

(240/40R18M/C 79V D221)

65110-48G01

1
Out of stock

22

VALVE ASSY, WHEEL RIM, (TR412

43130-24A00

1
Out of stock

23-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

1
Out of stock

23-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

1
Out of stock

23-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

1
Out of stock
