2016 Suzuki VZR1800 Front Fork Damper Diagram

← All diagrams

Find the part on the Front Fork Damper diagram for your 2016 Suzuki VZR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

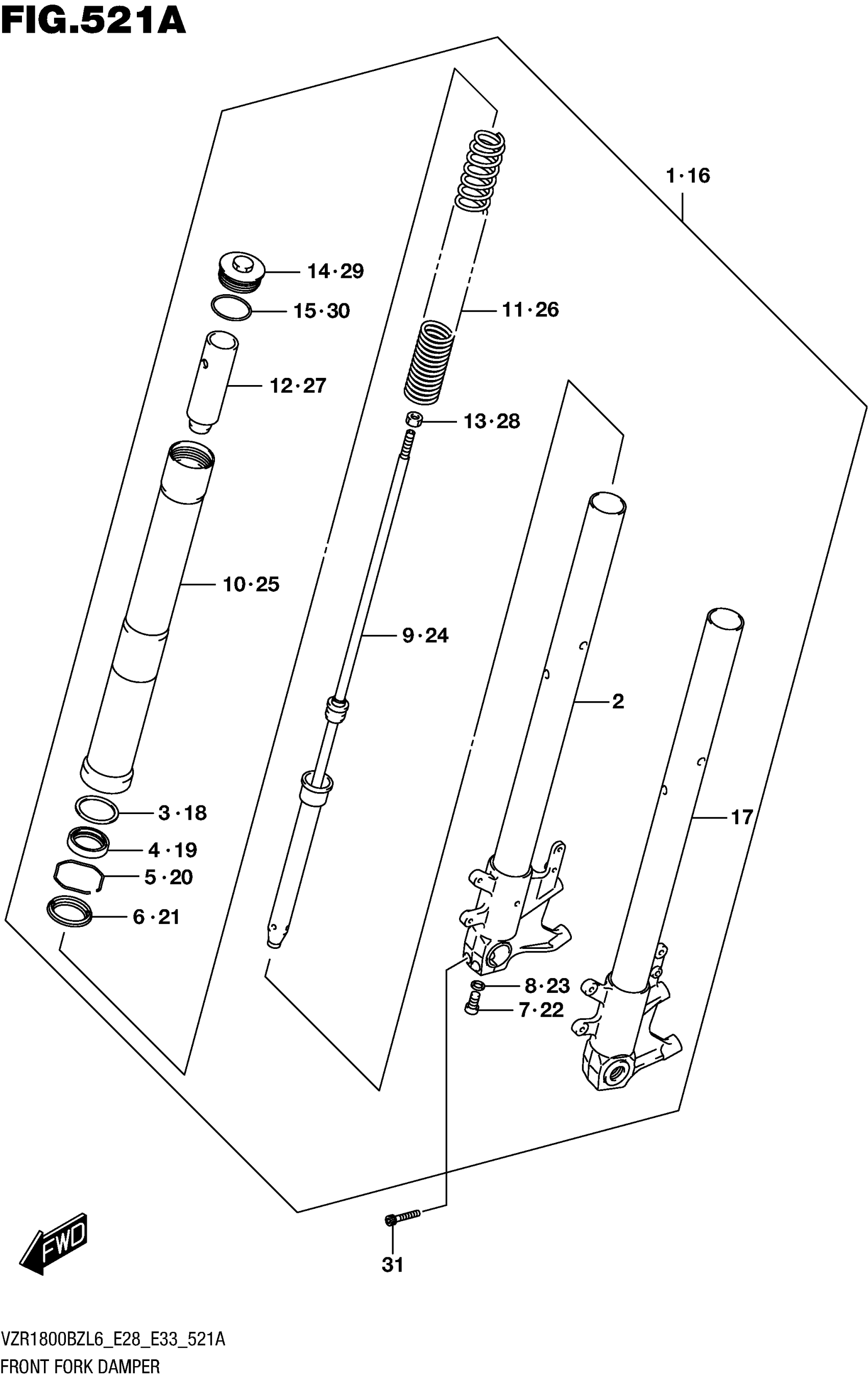

2016 Suzuki VZR1800 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,567.10

In stock

2

.TUBE, INNER RH

51110-48G30

1

$948.58

In stock

3

.WASHER

51158-27C00

1

$6.18

In stock

4

.OIL SEAL

51153-48G00

1

$25.09

In stock

5

.RING, STOPPER

51156-27C00

1

$5.95

In stock

6

.SEAL, DUST

51173-42F00

1

$26.50

In stock

7

.BOLT

51147-05H00

1
Out of stock

8

.GASKET

51148-41310

1
Out of stock

9

.CYLINDER

51146-48G20

—
Out of stock

10

.TUBE, OUTER

51130-48G30

1
Out of stock

11

.SPRING, FRONT

51171-48G20

1

$122.46

In stock

12

.SPACER, SPRING

51176-21H00

1

$30.92

In stock

13

.NUT, ROD

51352-13A60

1
Out of stock

14

.CAP

51351-48G30

1
Out of stock

15

1

$3.13

In stock

16

1

$1,692.47

In stock

17

.TUBE, INNER LH

51120-48G30

1
Out of stock

18

.WASHER

51158-27C00

1

$6.18

In stock

19

.OIL SEAL

51153-48G00

1

$25.09

In stock

20

.RING, STOPPER

51156-27C00

1

$5.95

In stock

21

.SEAL, DUST

51173-42F00

1

$26.50

In stock

22

.BOLT

51147-05H00

1
Out of stock

23

.GASKET

51148-41310

1
Out of stock

24

.CYLINDER

51146-48G20

—
Out of stock

25

.TUBE, OUTER

51130-48G30

1
Out of stock

26

.SPRING, FRONT

51171-48G20

1

$122.46

In stock

27

.SPACER, SPRING

51176-21H00

1

$30.92

In stock

28

.NUT, ROD

51352-13A60

1
Out of stock

29

.CAP

51351-48G30

1
Out of stock

30

1

$3.13

In stock

31

BOLT

51328-39G20

2

$13.27

In stock
