2016 Suzuki VZR1800 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2016 Suzuki VZR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

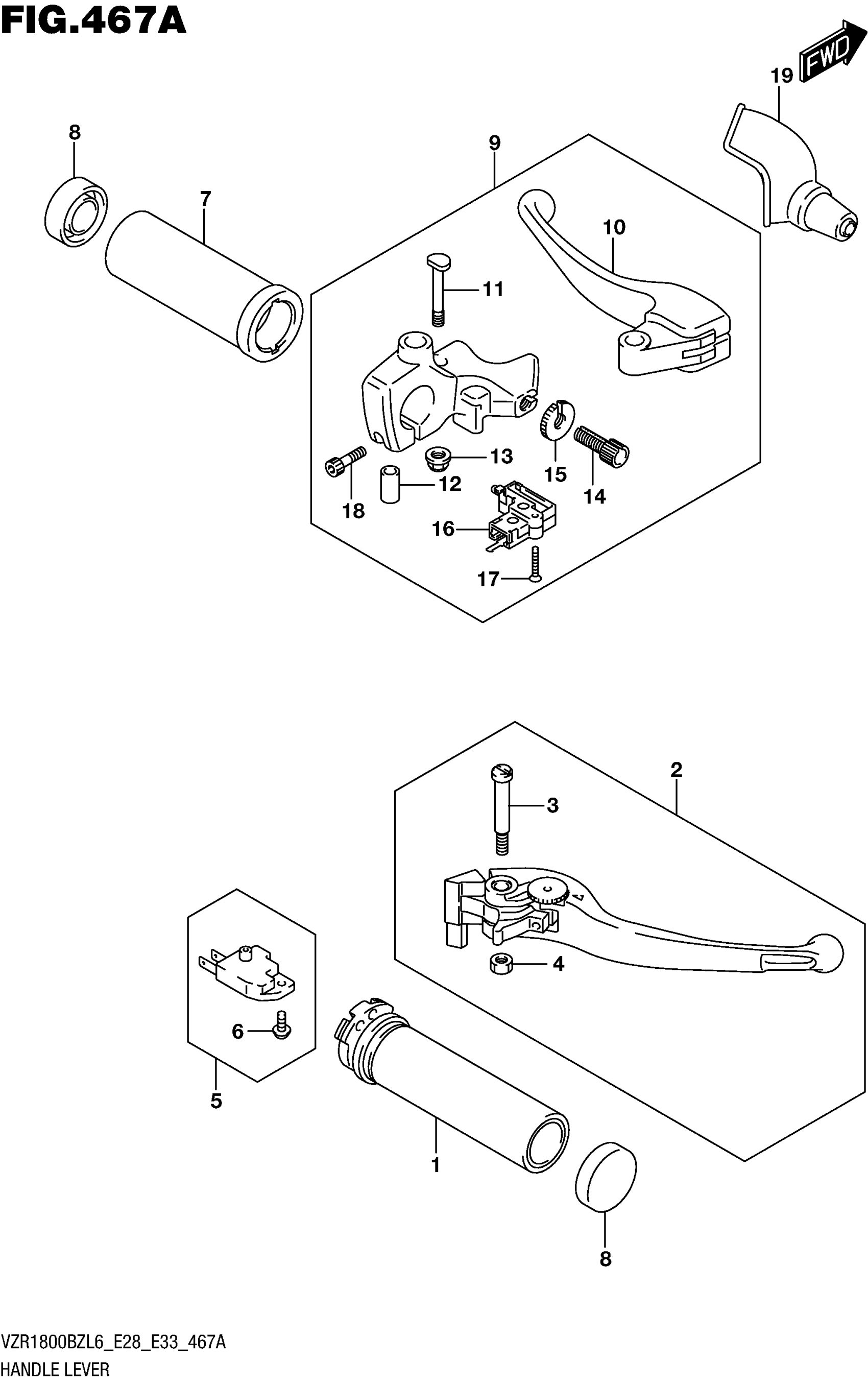

2016 Suzuki VZR1800 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP,THROTTLE This part replaces 57110-26D10.

57110-26D11

1
Out of stock

2

LEVER ASSY, BRAKE

57300-48G20

1
Out of stock

3

.BOLT, PIVOT

57431-48G00

1
Out of stock

4

.NUT

08319-2106A

1
Out of stock

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

1
Out of stock

6

.SCREW

57465-17C00

1
Out of stock

7

GRIP,L This part replaces 57210-26D00.

57210-26D01

1
Out of stock

8

CAP, GRIP END

57216-38A00

2
Out of stock

9

LEVER ASSY,CLUTCH This part replaces 57500-48G31.

57500-48G33

1
Out of stock

10

.LEVER, CLUTCH

57621-48G11

1
Out of stock

11

.BOLT, LEVER PIVOT

57531-48G00

1
Out of stock

12

.COLLAR

57623-48G00

1
Out of stock

13

NUT

08319-3106A

1
Out of stock

14

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

1
Out of stock

15

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

1
Out of stock

16

.SWITCH ASSY,CLUTCH

57560-05A10

1
Out of stock

17

.SCREW,CLUTCH SWITCH

57562-41G01

1
Out of stock

18

.BOLT

07130-06207

1
Out of stock

19

COVER,CLUTCH LEVER This part replaces 57541-48G10.

57541-48G11

1
Out of stock
