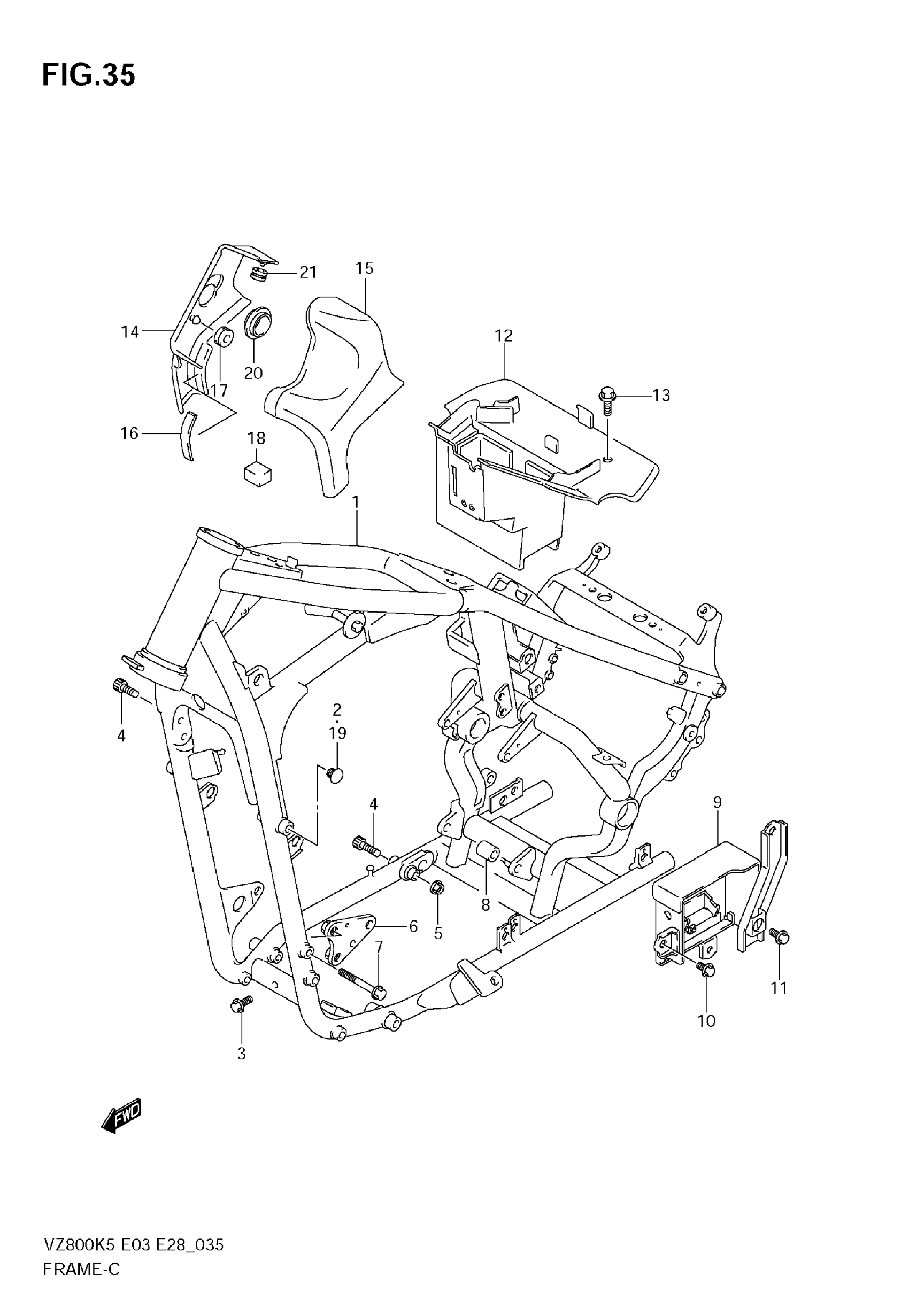

Suzuki VZ800 (2009) FRAME (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL K5/K6 This part replaces 41100-39G00-019.

41100-39G01-019

Unavailable

1

FRAME (BLACK) | MODEL K7/K8

41100-39G01-019

Unavailable

2

CAP This part replaces 09250-09001.

09250-09008

$1.56

3

BOLT (8X16) | MODEL K5/K6 This part replaces 01550-08163.

01550-0816A

$2.31

3

BOLT, LOWER BRIDGE FRONT | MODEL K7/K8

01550-0816B

$2.75

4

BOLT | MODEL K5/K6 This part replaces 07130-10353.

07130-1035B

$5.63

4

BOLT | MODEL K7/K8

07130-1035B

$5.63

5

NUT This part replaces 08319-31103.

08319-3110A

$2.73

6

PLATE, ENGINE MOUNT LH

41920-41F00

Unavailable

7

BOLT

09112-08013

Unavailable

8

SPACER, LOWER

41941-41F00

Unavailable

9

HOLDER, ELECTRIC PARTS

41540-41F10

Unavailable

10

BOLT, CLAMP | MODEL K5/K6 This part replaces 01550-06123.

01550-0612A

$1.97

10

BOLT, FRONT | MODEL K7/K8

01550-0612B

$2.38

11

BOLT (8X16) | MODEL K5/K6 This part replaces 01550-08163.

01550-0816A

$2.31

11

BOLT, HOLDER | MODEL K7/K8

01550-0816B

$2.75

12

HOLDER, ELECTRIC PARTS

47410-41F01

Unavailable

13

BOLT

09113-06001

$2.75

14

COVER,FRAME HEA This part replaces 47351-41F00-019.

47351-41F10-019

$70.01

15

COVER,FRAME HEA This part replaces 47361-41F00-019.

47361-41F10-019

$70.40

16

CUSHION

53145-40A00

$2.30

17

CUSHION

09320-08018

$2.80

18

CUSHION, LOWER

17798-39G00

$6.12

19

CAP This part replaces 09250-09001.

09250-09008

$1.56

20

CAP, HEAD COVER RH This part replaces 47355-41F00.

47355-41F01

$8.55

21

CUSHION, UPPER

09320-09501

$2.06
