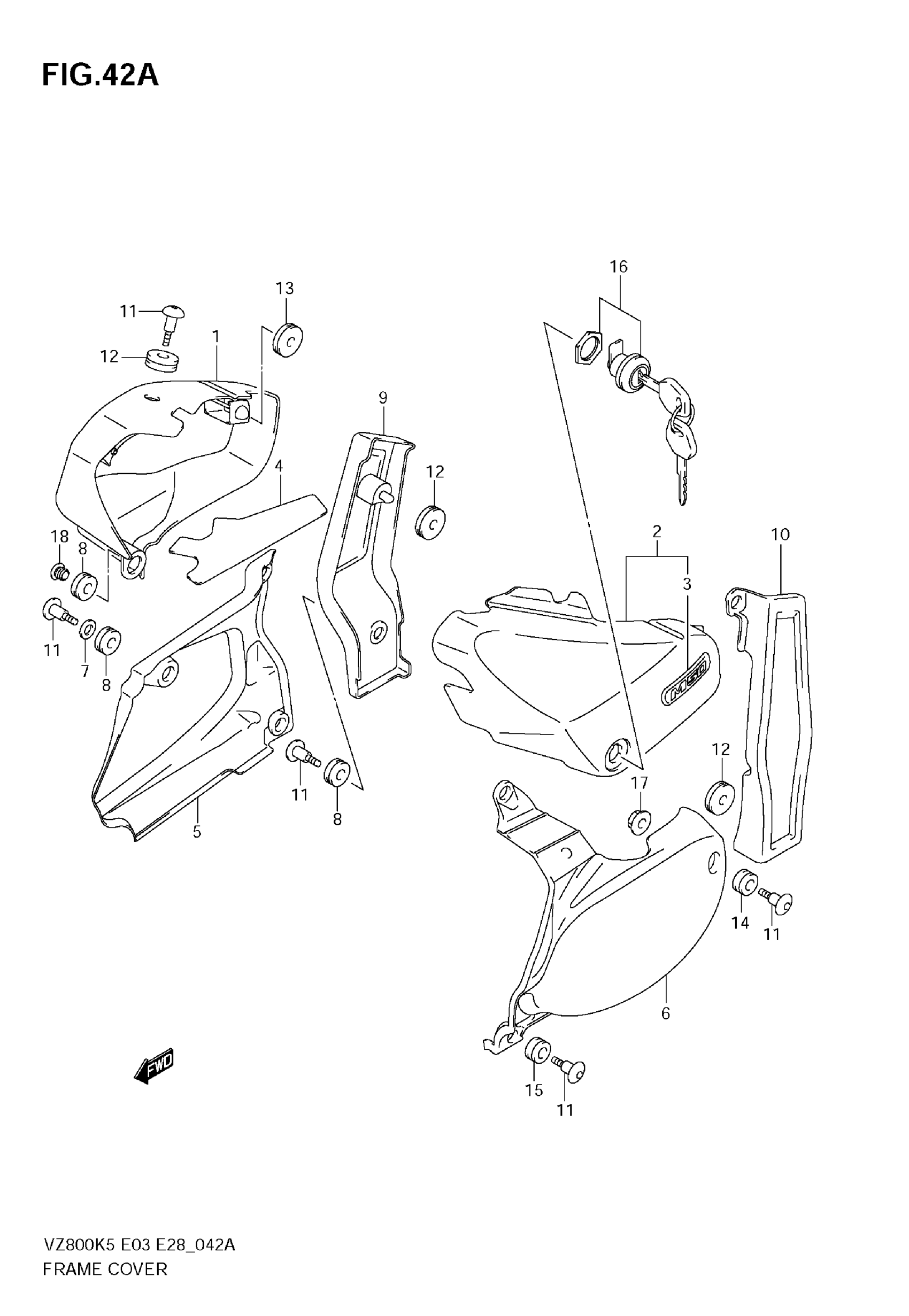

Suzuki VZ800 (2009) FRAME COVER (VZ800ZK7/ZK8) Diagram

#

Description
Price

1

COVER, FRAME RH (GRAY) | MODEL K7 E3,E28

47110-39G00-YHG

Unavailable

1

COVER, FRAME RH (GRAY) | MODEL K7 E33

47110-39G10-YHG

Unavailable

1

COVER,SIDE,R(BL | MODEL K8 E3,E28 This part replaces 47110-39G00-YAY.

47110-39G31-YAY

Unavailable

1

COVER,SIDE,R(BL | MODEL K8 E33 This part replaces 47110-39G10-YAY.

47110-39G41-YAY

Unavailable

2

COVER, FRAME LH (GRAY) | MODEL K7

47210-39G00-YHG

Unavailable

2

COVER, FRAME LH (BLACK) | MODEL K8; Includes Item(s) 3

47210-39G00-YAY

Unavailable

3

EMBLEM, M50 This part replaces 68131-39G00.

68131-39G01

$40.23

4

SHIELD, FRAME COVER RH

47166-41F00

$20.13

5

COVER, SIDE LOWER RH

47130-41F10

Unavailable

6

COVER, SIDE LOWER LH

47231-41F10

$324.87

7

WASHER

09160-10123

$2.13

8

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

9

COVER, SIDE REAR RH (BLACK)

47141-41F01-019

$155.65

10

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$154.90

11

SCREW

09139-06126

$3.65

12

CUSHION

09320-08018

$2.80

13

CUSHION BOX REAR

09320-08028

$2.80

14

CUSHION

09320-09501

$2.06

15

CUSHION This part replaces 09320-09045.

09320-09062

$2.14

16

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$69.50

17

NUT, SIDE LOWER LH

08316-1006B

$2.50

18

CAP This part replaces 09250-09001.

09250-09008

$1.56
