2009 Suzuki VZ800 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2009 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

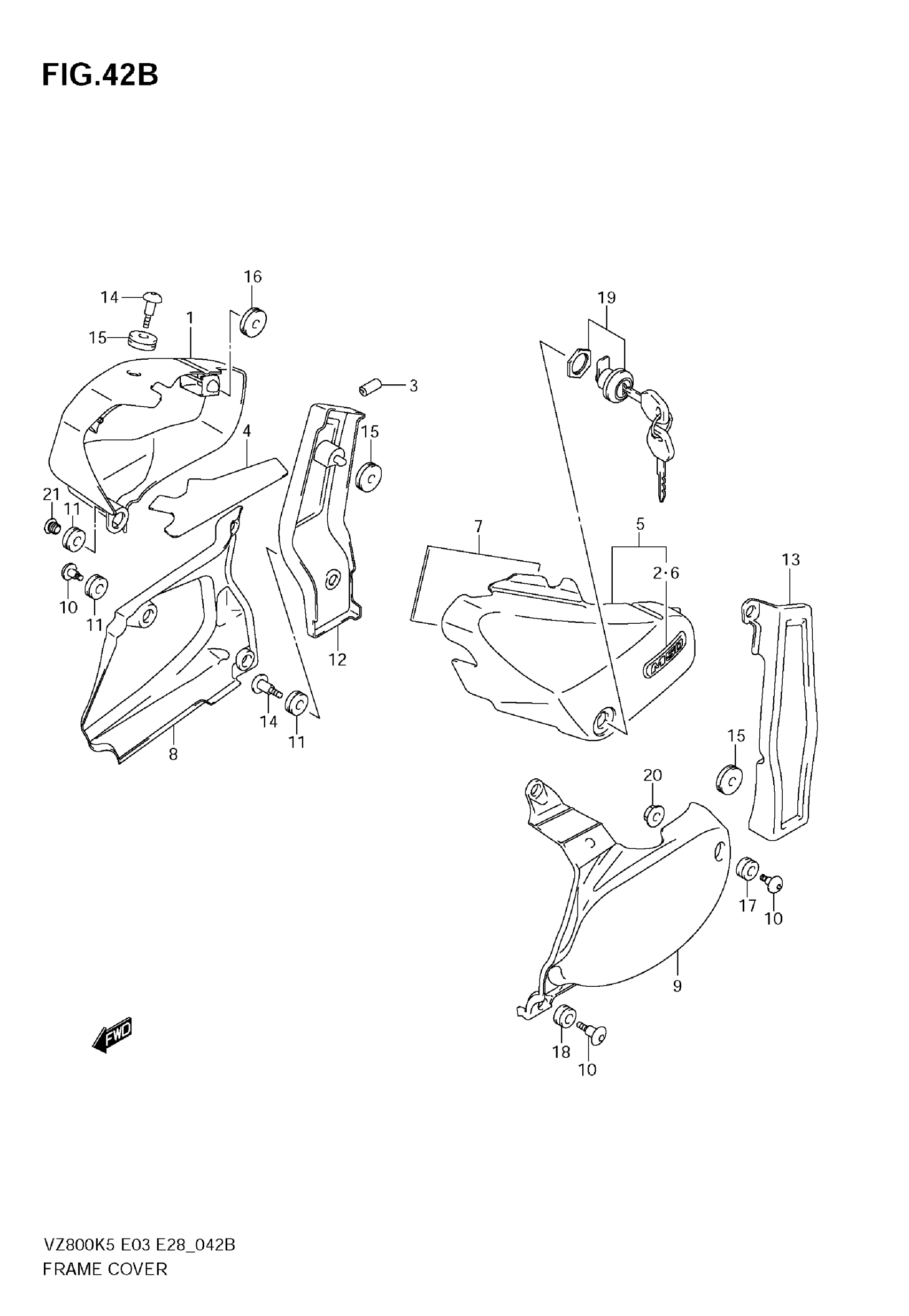

2009 Suzuki VZ800 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,SIDE,R(BL | E3,E28 This part replaces 47110-39G60-YAY.

47110-39G31-YAY

1
Out of stock

1

COVER,SIDE,R(BL | E33; Includes Item(s) 2 - 4 This part replaces 47110-39G40-YAY.

47110-39G41-YAY

1
Out of stock

2

EMBLEM, M50 This part replaces 68131-39G00.

68131-39G01

1
Out of stock

3

MOLDING

94631-35F00

1
Out of stock

4

SHIELD, RH

47166-41F00

1
Out of stock

5

COVER,SIDE,L(BL | Includes Item(s) 6 - 7 This part replaces 47210-39G30-YAY.

47210-39G31-YAY

1
Out of stock

6

EMBLEM, M50 This part replaces 68131-39G00.

68131-39G01

1
Out of stock

7

CUSHION, SIDE COVER

47217-41F00

1
Out of stock

8

COVER, SIDE LOWER RH

47130-41F10

1
Out of stock

9

COVER, SIDE LOWER LH

47231-41F10

1
Out of stock

10

SCREW

47133-43H00

3
Out of stock

11

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

3
Out of stock

12

COVER, SIDE REAR RH (BLACK)

47141-41F01-019

1
Out of stock

13

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

1
Out of stock

14

SCREW

09139-06126

6
Out of stock

15

CUSHION

09320-08018

8
Out of stock

16

CUSHION BOX REAR

09320-08028

1
Out of stock

17

CUSHION

09320-09501

7
Out of stock

18

CUSHION This part replaces 09320-09045.

09320-09062

1
Out of stock

19

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

1
Out of stock

20

NUT, SIDE LOWER LH

08316-1006B

1
Out of stock

21

CAP This part replaces 09250-09001.

09250-09008

1
Out of stock
