2004 Suzuki VZ800 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2004 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

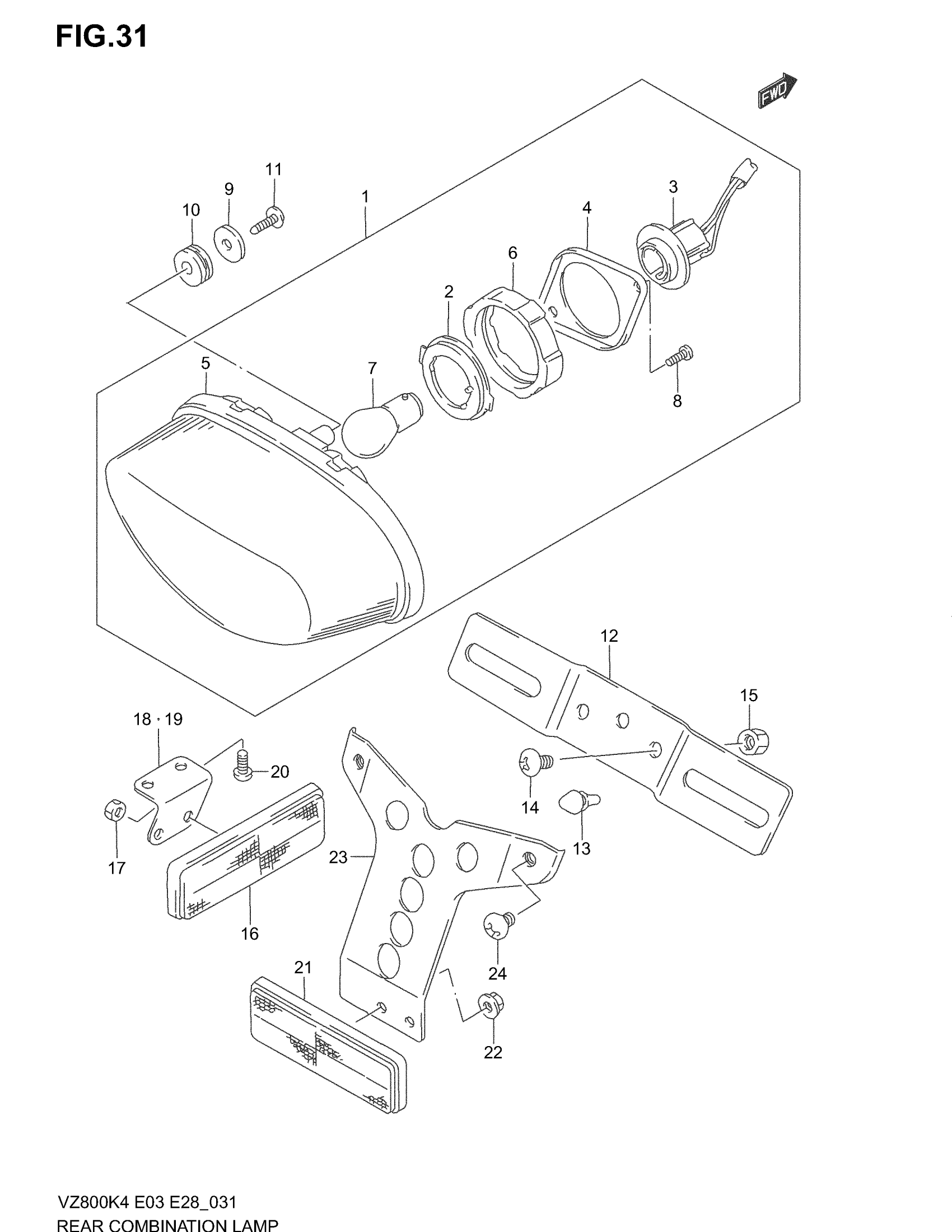

2004 Suzuki VZ800 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 8

35710-42E20

1
Out of stock

2

PLATE NO.1

35716-48B21

1
Out of stock

3

SOCKET & CORD

35718-42E10

1
Out of stock

4

PLATE

35736-48B21

1
Out of stock

5

LAMP UNIT

35740-42E11

1
Out of stock

6

CUSHION

35765-48B21

1
Out of stock

7

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

8

SCREW This part replaces 03211-04123.

03211-0412A

2
Out of stock

9

WASHER

09160-05501

3
Out of stock

10

CUSHION

09320-10015

3
Out of stock

11

SCREW This part replaces 03541-05123.

03541-0512A

3
Out of stock

12

BRACKET, LICENSE PLATE

35927-48B30

1
Out of stock

13

CUSHION

09321-06023

1
Out of stock

14

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

15

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

16

REFLEX REFLECTOR ASSY, RR SIDE

35970-24D60

2
Out of stock

17

NUT This part replaces 08310-00053.

08310-0005A

2
Out of stock

18

BRACKET, REAR SIDE RR R

35974-38A20

1
Out of stock

19

BRACKET, REAR SIDE RR L

35975-38A20

1
Out of stock

20

SCREW This part replaces 02112-06083.

02112-0608A

4
Out of stock

21

REFLEX REFLECTOR ASSY, RR

35970-24D60

1
Out of stock

22

NUT This part replaces 08316-10053.

08316-1005A

1
Out of stock

23

BRACKET, REAR REFLECTOR

35974-48E00

1
Out of stock

24

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock
