Description

Price

1

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-21E20.

31800-21E30

$61.62

2

COVER, RELAY ASSY

31861-47E00

$18.23

3

FUSE (30A)

09481-30101

$2.28

4

SCREW (6X8)

09128-06013

$1.24

5

CONTROL UNIT, STARTING MOTOR

31890-48E00

$69.57

6

RECTIFIER ASSY

32800-45C01

$309.67

7

BOLT This part replaces 07130-06163.

07130-0616B

$2.38

8

IGNITOR ASSY This part replaces 32900-48E30.

32900-48E31

$1,089.32

9

CUSHION, IGNITER

32980-40C01

$17.88

10

COIL ASSY, IGNITION

33410-48E00

$175.35

11

SPACER (6.2X12X16)

09180-06198

$4.70

12

BOLT This part replaces 07130-05163.

07130-0516A

$2.51

13

BOLT This part replaces 07130-05353.

07130-0535B

$3.42

14

CAP, SPARK PLUG

33510-11410

$23.76

15

SEAL, SPARK PLUG CAP

33541-47D00

$7.16

16

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

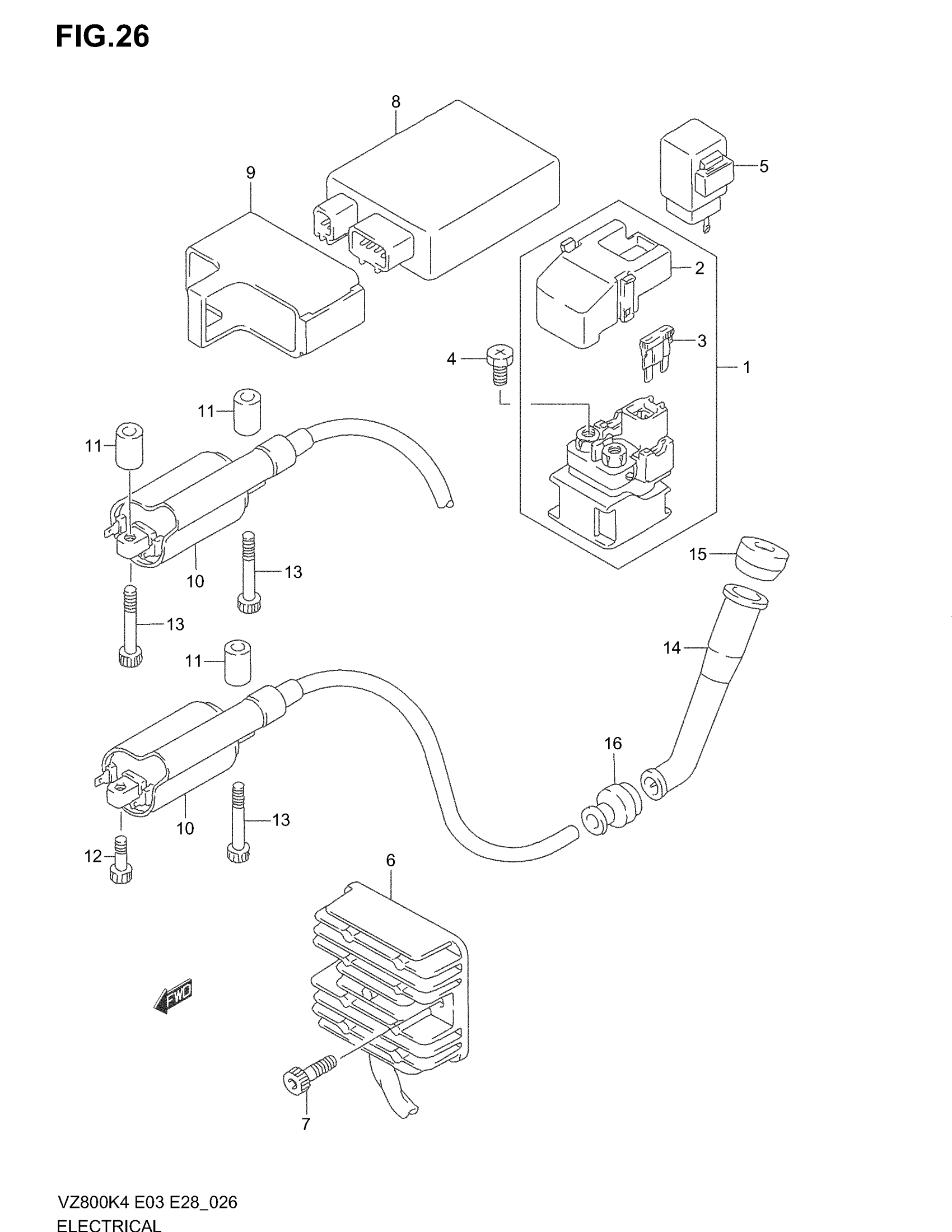

Suzuki VZ800 (2004) ELECTRICAL Diagram
