2004 Suzuki VZ800 Headlamp Housing Diagram

← All diagrams

Find the part on the Headlamp Housing diagram for your 2004 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

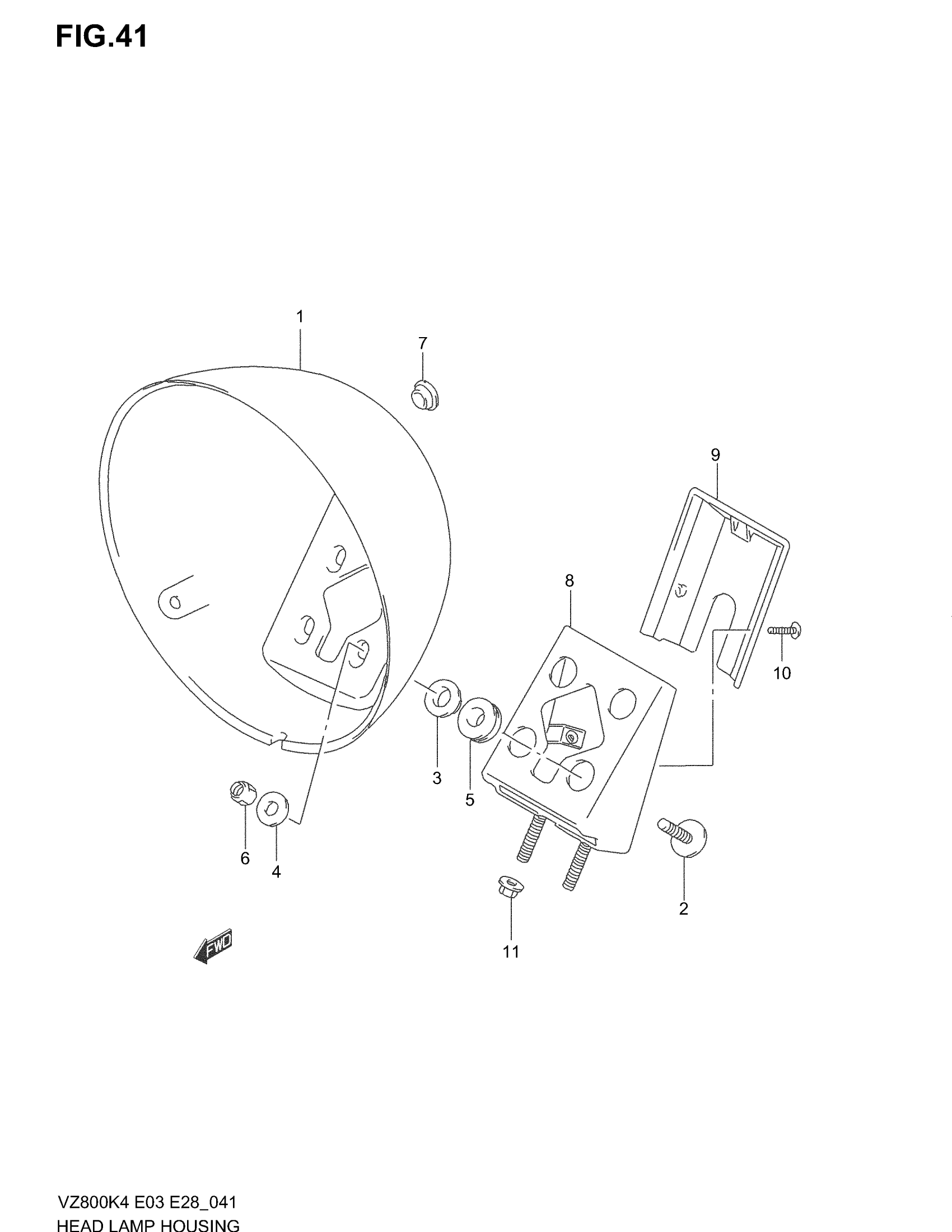

2004 Suzuki VZ800 Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP

51811-48E02

1
Out of stock

2

BOLT (6X25)

09116-06025

4

$2.64

In stock

3

WASHER (6.3X17X6)

09169-06063

4
Out of stock

4

WASHER (6.5X20X1.2)

09160-06138

4
Out of stock

5

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

4
Out of stock

6

.NUT This part replaces 08319-21063.

08319-2106B

4
Out of stock

7

CAP, HEADLAMP HOUSING

51816-48E01

1
Out of stock

8

BRACKET, HEADLAMP HOUSING

51850-48E01

1
Out of stock

9

COVER, BRACKET

51815-48E00

1
Out of stock

10

SCREW

02142-04107

2
Out of stock

11

NUT This part replaces 08319-31063.

08319-3106A

2
Out of stock
