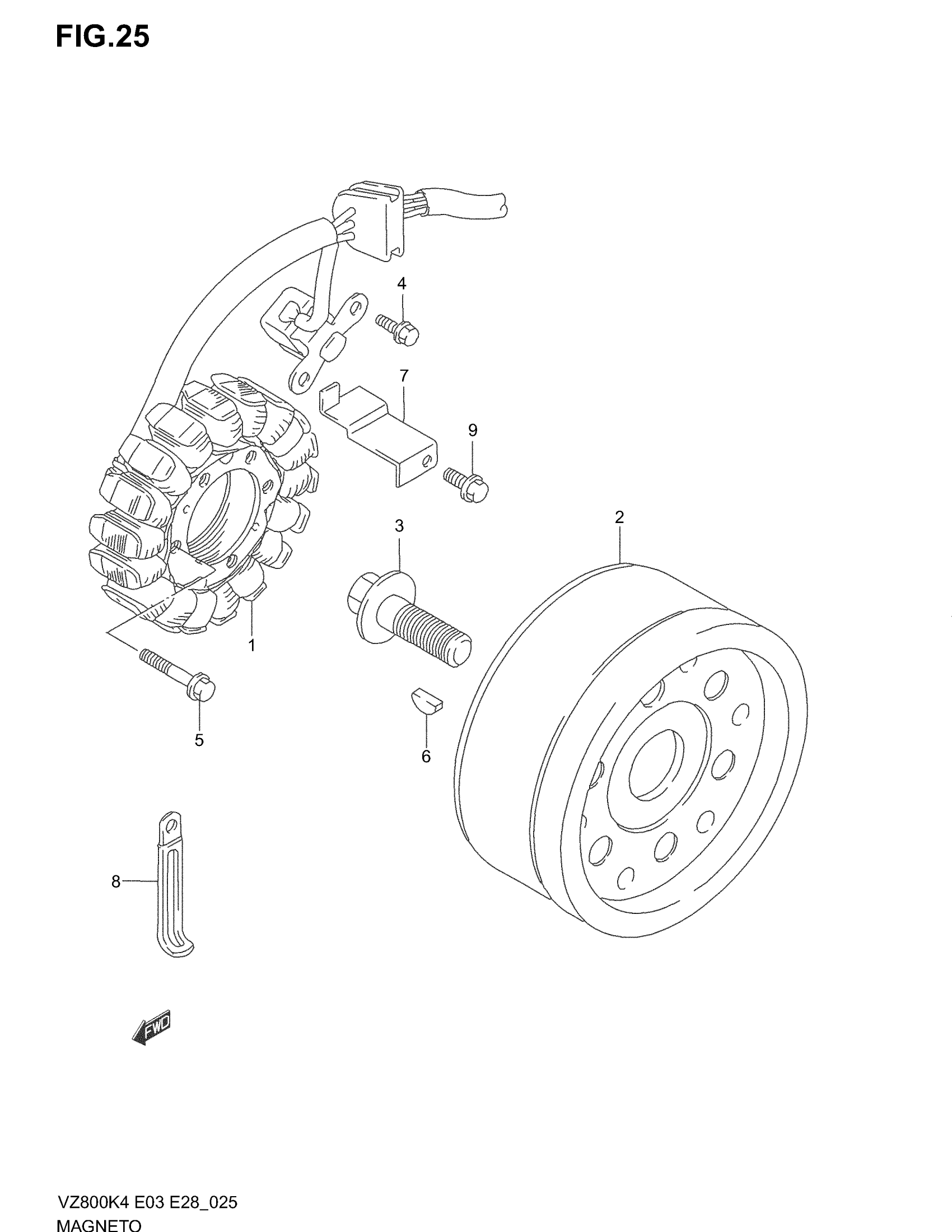

Suzuki VZ800 (2004) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY

32101-48E00

$568.12

2

ROTOR ASSY

32102-48E01

Unavailable

3

BOLT (14X43)

09103-14001

$12.85

4

BOLT This part replaces 01500-05103.

01500-0510B

$1.81

5

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

6

KEY

09420-04008

$3.08

7

CLAMP, LEAD WIRE

32371-45C00

$5.18

8

CLAMP (L:45)

09404-06429

$1.82

9

BOLT This part replaces 01547-06103.

01547-0610B

$2.47
