1993 Suzuki VX800P Starter Clutch Diagram

← All diagrams

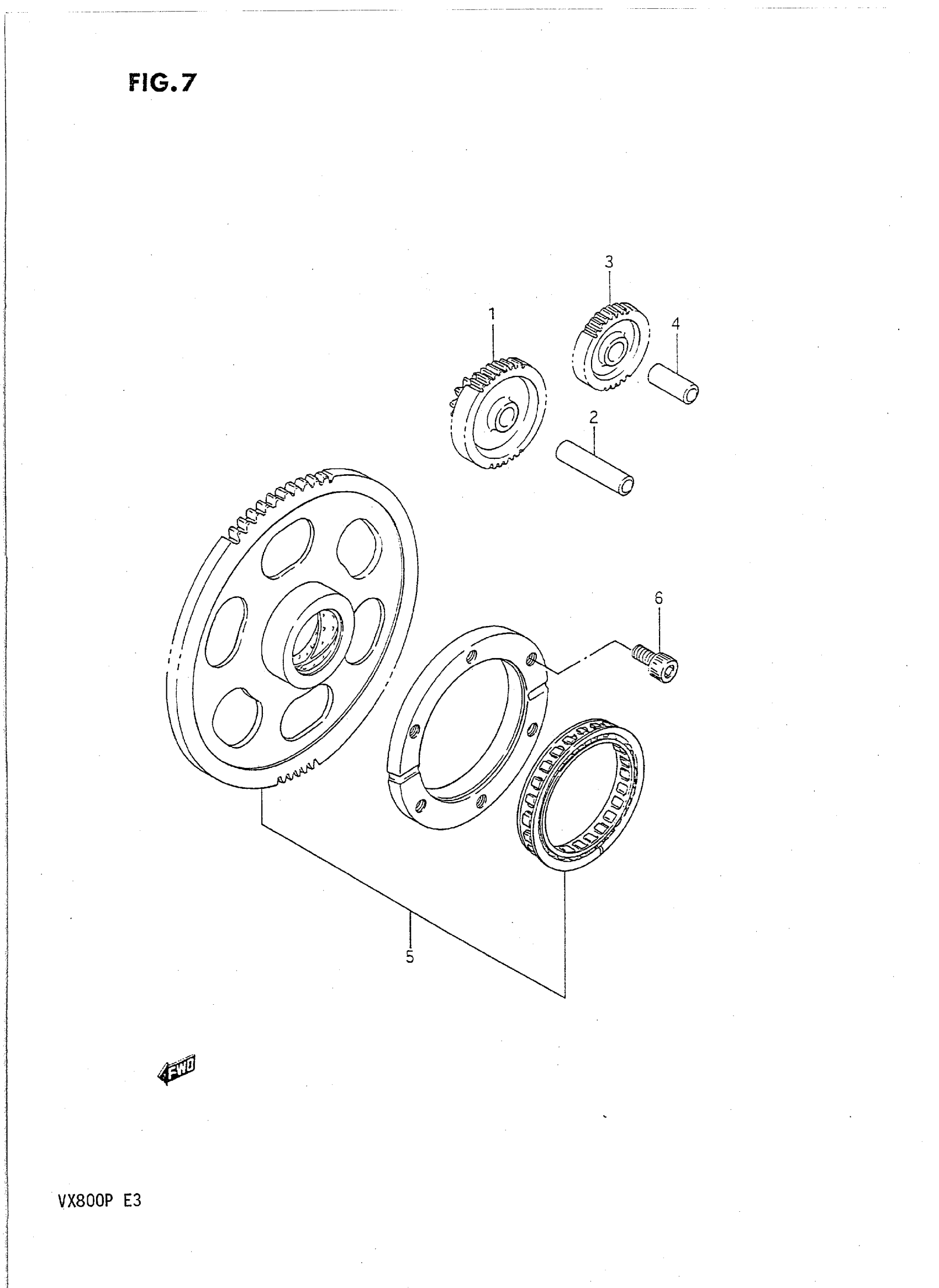

Find the part on the Starter Clutch diagram for your 1993 Suzuki VX800P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki VX800P Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, STARTER IDLE NO.1 | NT:12/41

12611-38A01

1
Out of stock

2

PIN (10X43) This part replaces 09206-10003.

09202-10008

1
Out of stock

3

GEAR, STARTER IDLE NO.2 | NT:32

12611-38A11

1
Out of stock

4

PIN (10X27) This part replaces 09206-10004.

09202-10006

1
Out of stock

5

CLUTCH SET, STARTER | MODEL L/M/N This part replaces 12600-38830.

12600-38832

1
Out of stock

5

CLUTCH SET, STARTER | MODEL P This part replaces 12600-45840.

12600-38832

1
Out of stock

6

6

$3.13

In stock
