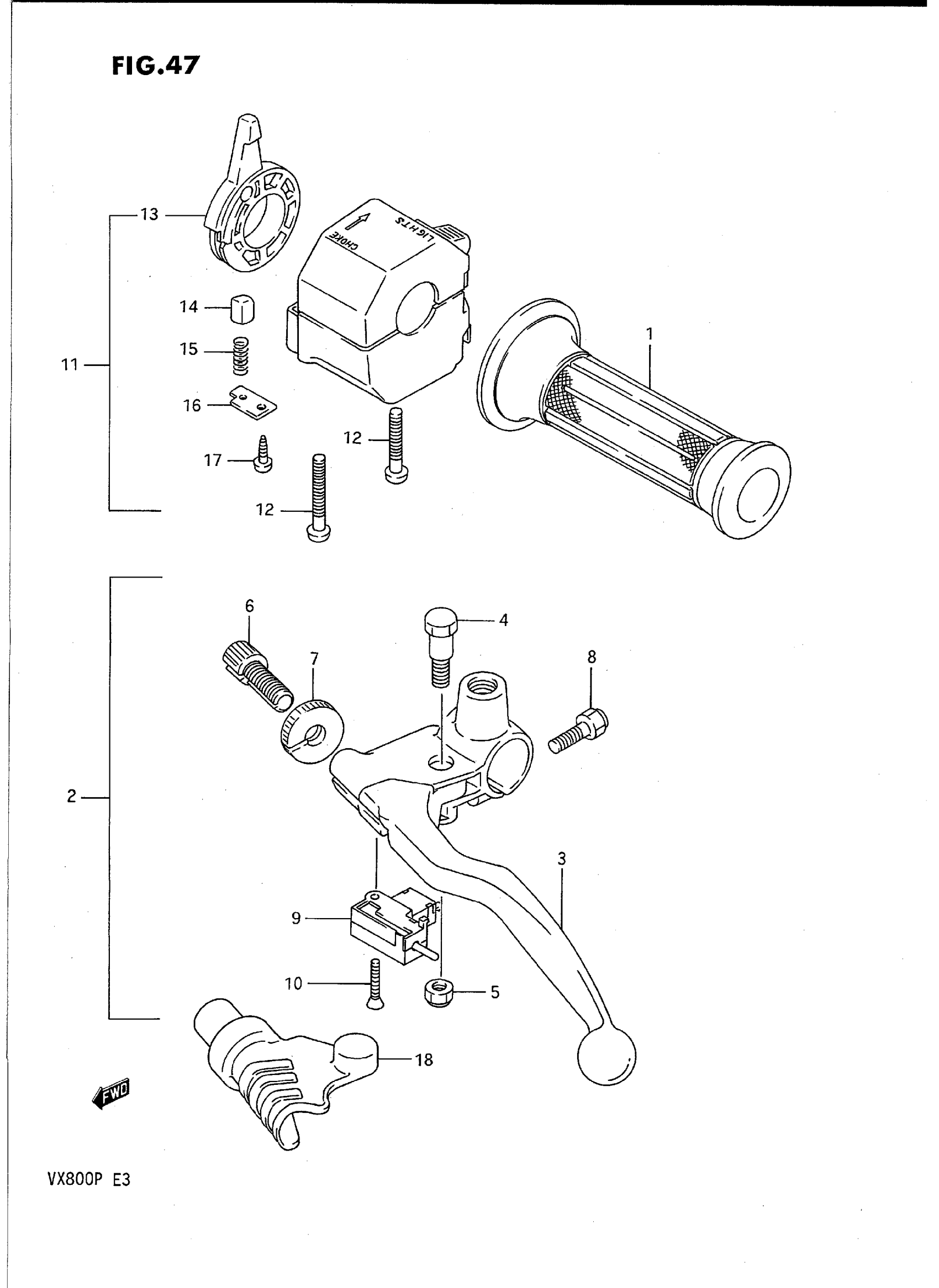

Suzuki VX800P (1993) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH

57211-49500

$13.14

2

LEVER ASSY, CLUTCH | MODEL L This part replaces 57500-45C10.

57500-45C30

Unavailable

2

LEVER ASSY, CLUTCH | MODEL M/N/P; Includes Item(s) 3 - 10

57500-45C30

Unavailable

3

LEVER

57620-45C00

$29.20

4

..BOLT,LEVER PIVOT This part replaces 57431-45C00.

57431-21D11

$8.94

5

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

6

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$8.29

7

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$7.92

8

..BOLT This part replaces 01547-06205.

01547-0620B

$2.43

9

.SWITCH,CLUTCH

57560-05A00

$11.12

10

SCREW

02132-03208

Unavailable

11

NO DESCRIPTION AVAILABLE | Includes Item(s) 12 - 17 This part replaces 37400-45C00.

37400-45C01

Unavailable

12

.SCREW This part replaces 02112-05455.

02112-0545B

$2.24

13

LEVER, CHOCK This part replaces 37481-30B00.

37481-30B01

Unavailable

14

PIECE, SLIDE

37482-30B00

Unavailable

15

SPRING

37483-30B00

Unavailable

16

PLATE

37486-30B00

Unavailable

17

SCREW This part replaces 03511-04125.

03511-0412A

$0.49

18

COVER,CLUTCH LE This part replaces 57661-45C00.

57661-45C01

$7.47
