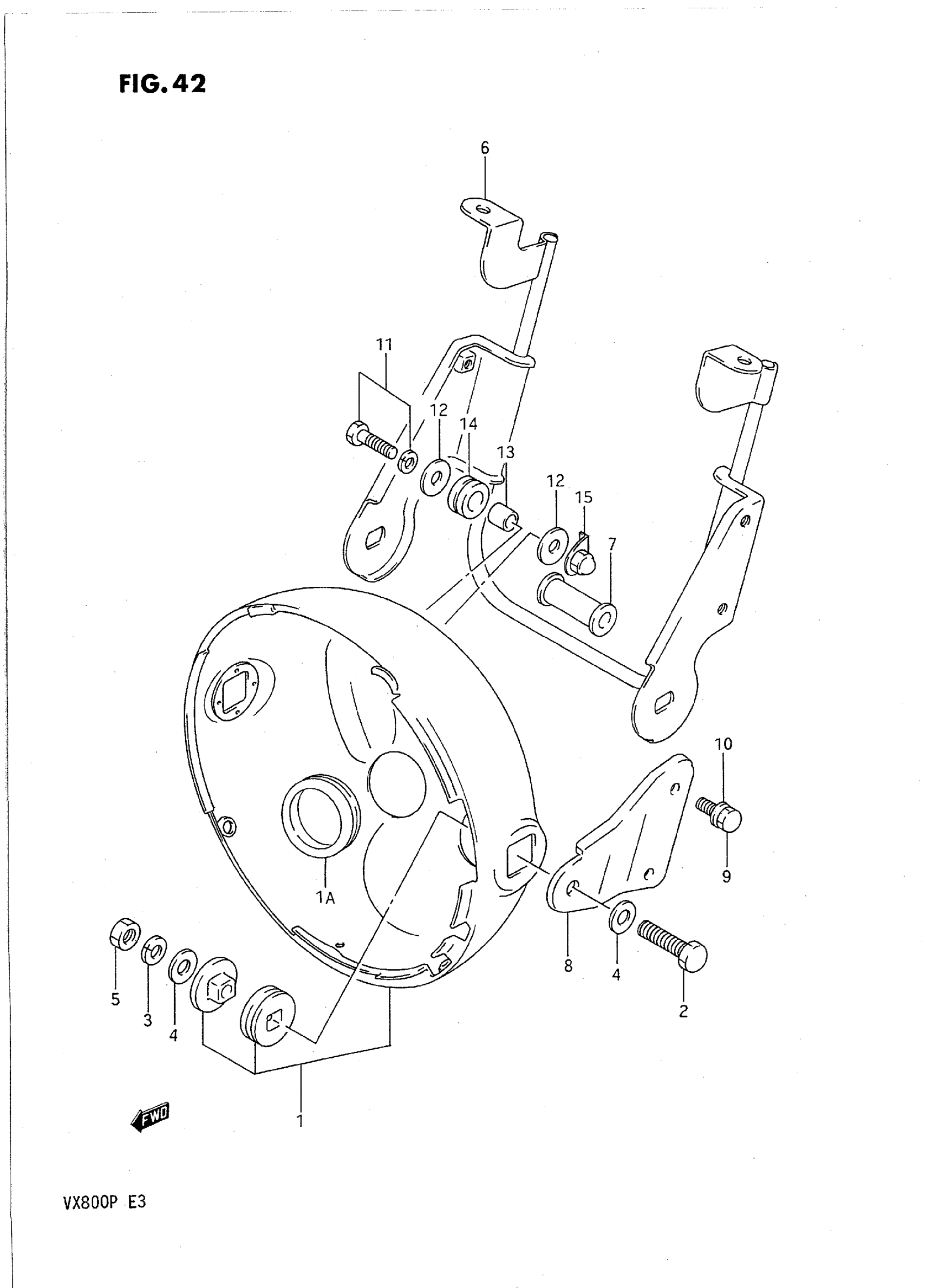

Find the part on the Headlamp Housing diagram for your 1993 Suzuki VX800P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki VX800P Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP | MODEL L/M This part replaces 51810-01D10.

51810-01D11

1
Out of stock

1

HOUSING, HEADLAMP | MODEL N/P; Includes Item(s) 1A

51810-01D11

1
Out of stock

1A

GROMMET This part replaces 51817-01D00.

51817-01D01

3
Out of stock

2

BOLT

01204-08307

2
Out of stock

3

2

$2.28

In stock

4

WASHER This part replaces 08322-11088.

08322-01087

4
Out of stock

5

2

$1.93

In stock

6

BRACKET, BEADLAMP

51580-45C00

1
Out of stock

7

CUSHION This part replaces 09320-08022.

09320-08522

1
Out of stock

8

STAY, HEADLAMP HOUSING RH | MODEL L/M

51851-45C00

1
Out of stock

8

STAY,HDLAMP HOU | MODEL N/P This part replaces 51851-01D11.

51011-0BE00

1
Out of stock

8

STAY, HEADLAMP HOUSING LH | MODEL L/M

51861-45C00

1
Out of stock

8

STAY,HDLAMP HOU | MODEL N/P This part replaces 51861-01D11.

51011-0BE00

1
Out of stock

9

BOLT

01204-06127

4
Out of stock

10

WASHER This part replaces 08322-21067.

08322-01067

4
Out of stock

11

BOLT This part replaces 01234-06258.

01234-0625A

1
Out of stock

12

WASHER This part replaces 09160-06006.

09160-06084

3
Out of stock

13

SPACER

09180-07004

1
Out of stock

14

CUSHION

09320-10015

1
Out of stock

15

PLATE

51815-06C00

1
Out of stock
