1993 Yamaha Vmax-4 (VX750T) Windshield Diagram

← All diagrams

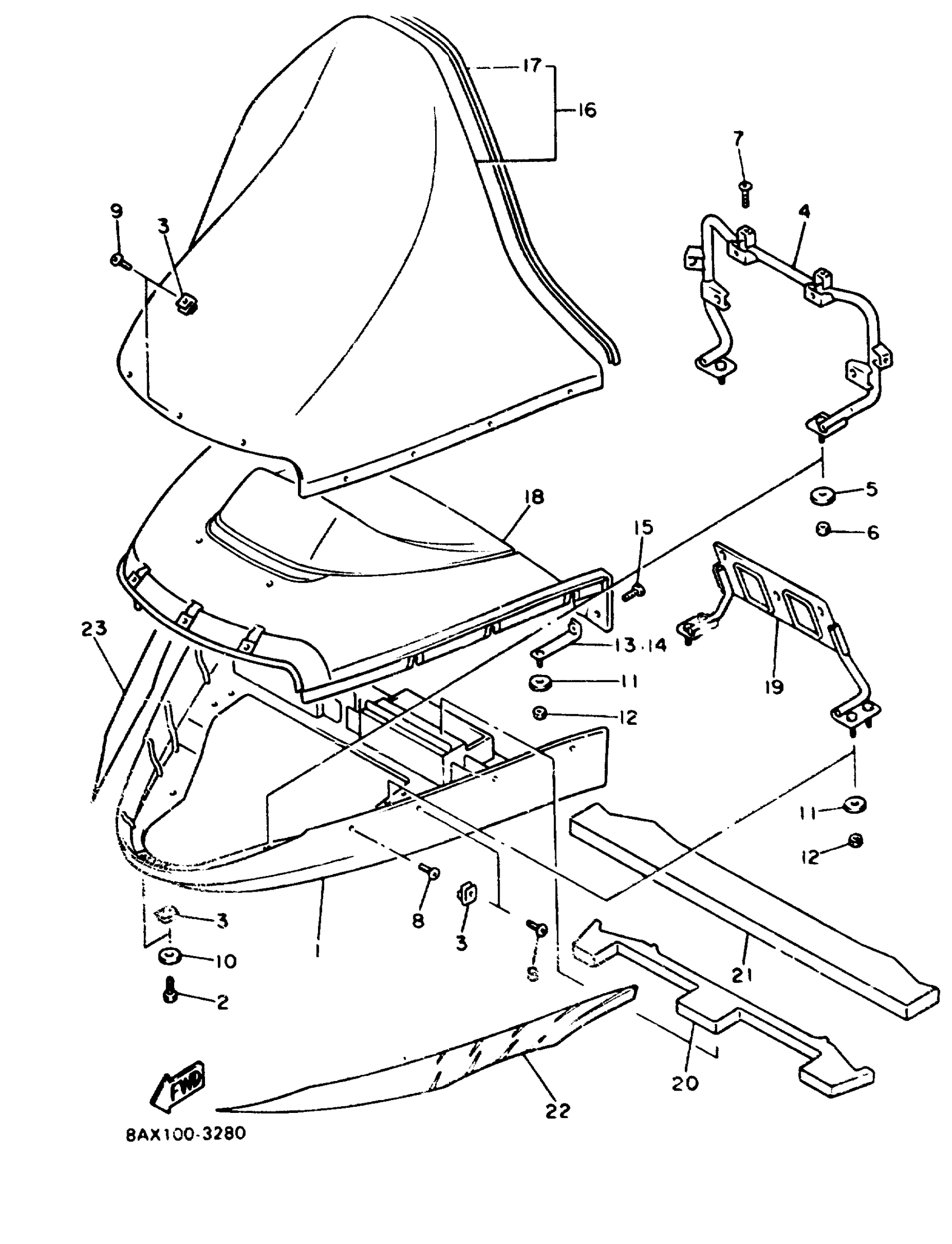

Find the part on the Windshield diagram for your 1993 Yamaha Vmax-4 (VX750T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha Vmax-4 (VX750T) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FAIRING

89A-77231-00-00

1
Out of stock

2

BOLT(6A1)

97095-05016-00

1

$1.46

In stock

3

NUT

89A-77144-00-00

1
Out of stock

4

SRAY, FAIRING

89A-77241-00-00

1
Out of stock

5

WASHER, PLATE (3Y6)

90201-083A6-00

1
Out of stock

6

NUT(6L2)

95333-08600-00

1

$3.20

In stock

7

SCREW, BINDING (10V)

90154-05013-00

1
Out of stock

8

SCREW, BINDING(2EK)

90154-05042-00

1
Out of stock

9

SCREW, ROUND HEAD(88R)

90150-05028-00

1

$2.64

In stock

10

WASHER, PLATE (7N7)

90201-052E8-00

1

$3.20

In stock

11

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

PLATE, BACK UP 1

89A-77153-00-00

1
Out of stock

14

PLATE, BACK UP 2

89A-77154-00-00

1
Out of stock

15

SCREW, BINDING (10V)

90154-05013-00

1
Out of stock

16

WINDSHIELD COMP. (89A-77210-00-00)

89A-77210-00-XX

1
Out of stock

17

TRIM,UPPER

87K-77213-00-00

1
Out of stock

18

COVER, HEADLIGHT

89A-77251-00-00

1
Out of stock

19

BRACKET, METER

89A-83519-00-00

1
Out of stock

20

LINING, SHROUD

8AB-77268-00-00

1
Out of stock

21

SHIELD, NOISE 2

89A-2199J-00-00

—

$80.97

In stock

22

STRIPE 1

8AX-77281-00-00

1
Out of stock

23

STRIPE 2

8AX-77282-00-00

1
Out of stock
