1993 Yamaha Vmax-4 (VX750T) Bumper Diagram

← All diagrams

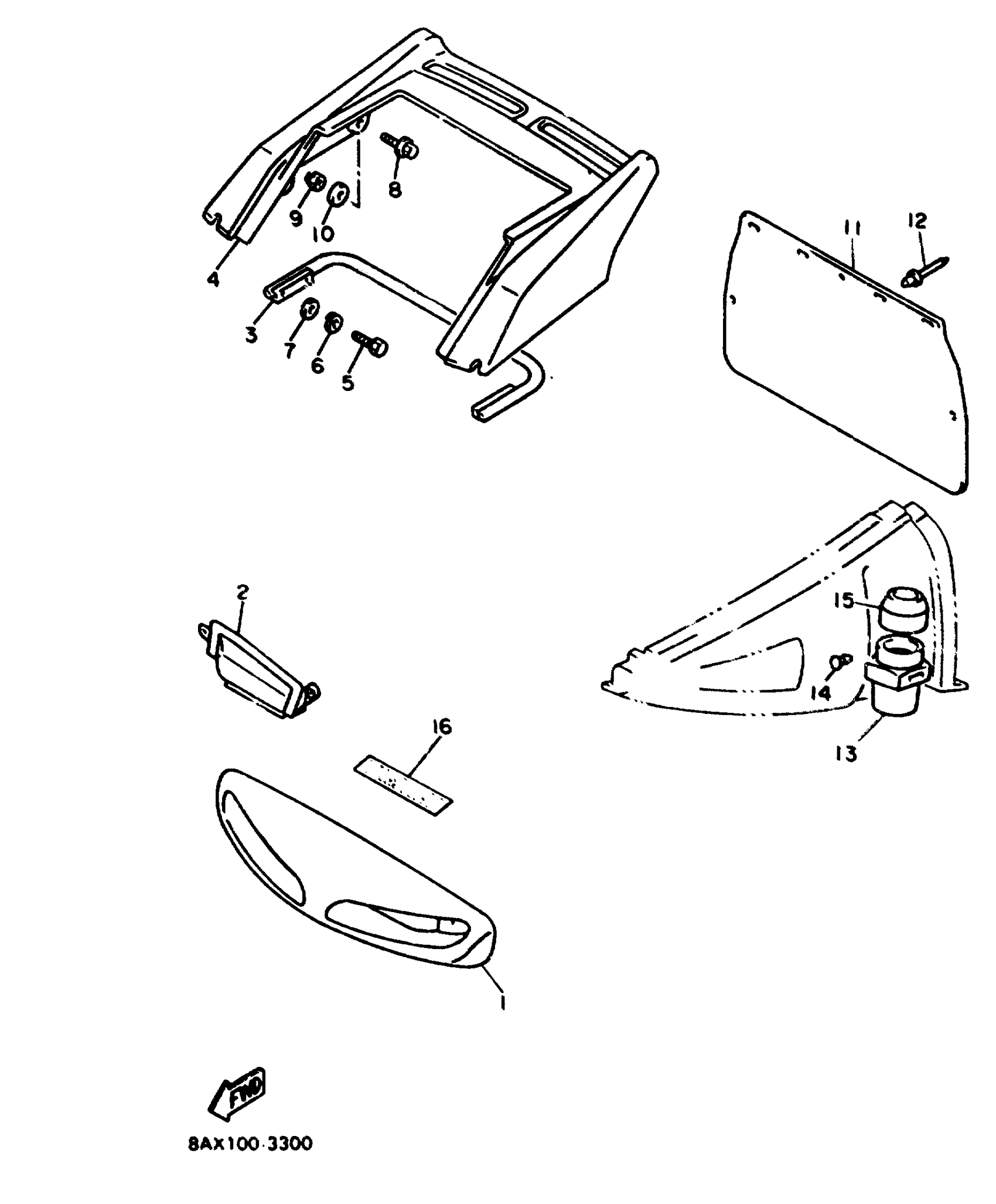

Find the part on the Bumper diagram for your 1993 Yamaha Vmax-4 (VX750T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha Vmax-4 (VX750T) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

89A-77511-00-00

1
Out of stock

2

STAY 4

8AX-77128-00-00

1
Out of stock

3

BUMPER, REAR 1

89A-77541-00-00

—

$93.29

In stock

4

BUMPER, REAR 2

89A-77542-00-00

1
Out of stock

5

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

6

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

7

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

8

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

9

NUT, NYLON

95707-06300-00

1

$3.20

In stock

10

WASHER, PLATE (8K2)

90201-06778-00

1

$3.69

In stock

11

FLAP

9V977-59500-00

1
Out of stock

12

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

13

PROTECTOR 1

82M-77551-00-00

1
Out of stock

14

RIVET (8M6)

90269-04025-00

1
Out of stock

15

PROTECTOR 4

8AX-77554-00-00

1
Out of stock

16

EMBLEM, YAMAHA

99246-00140-00

—

$24.05

In stock
