1993 Yamaha Vmax-4 (VX750T) Frame Diagram

← All diagrams

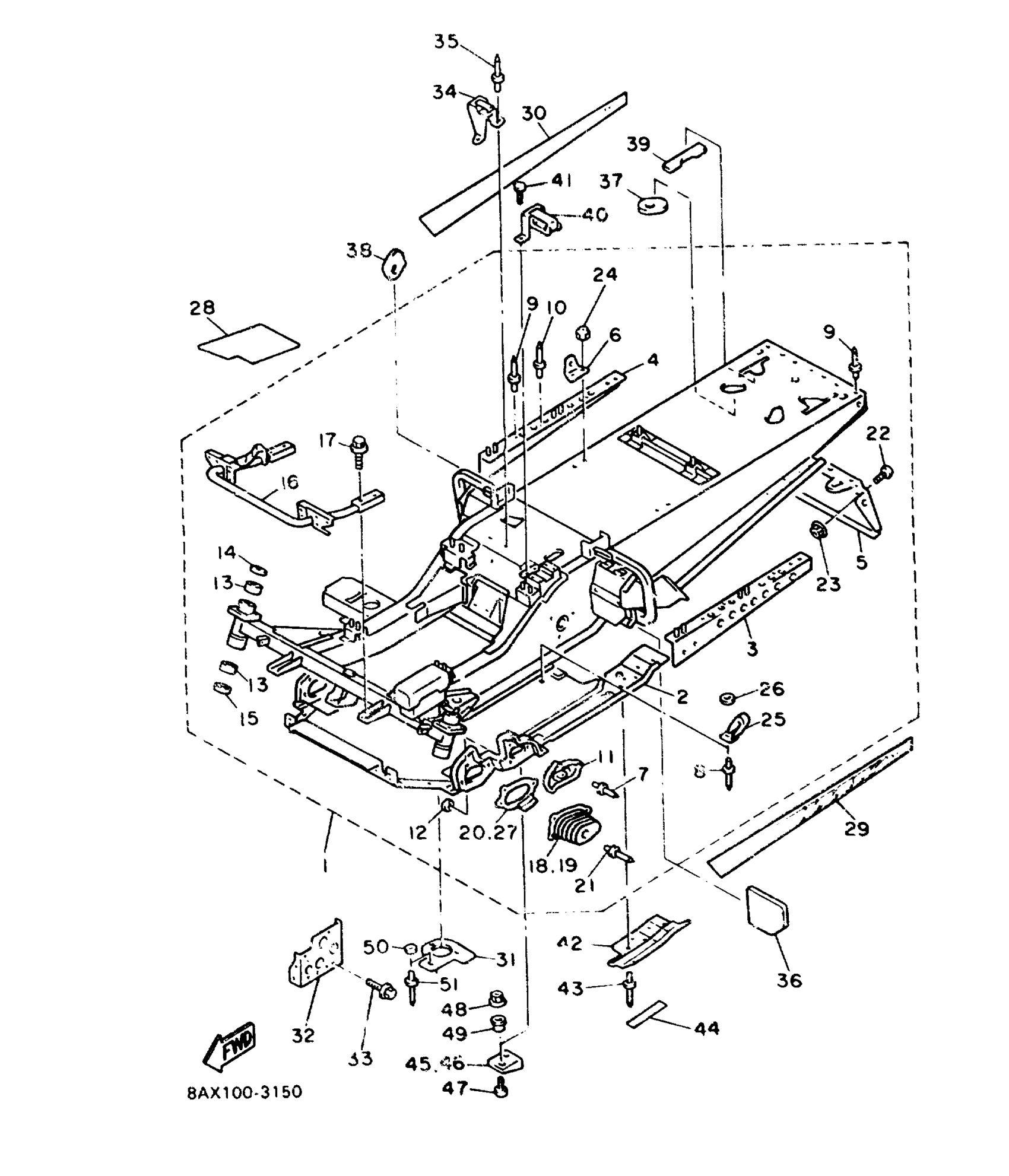

Find the part on the Frame diagram for your 1993 Yamaha Vmax-4 (VX750T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha Vmax-4 (VX750T) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME ASY

89A-21910-02-00

1
Out of stock

2

. PANEL, SUB FRAME 1

89A-21912-00-00

1
Out of stock

3

. PATCH 4

89A-21964-00-00

1
Out of stock

4

. PATCH 5

89A-21965-00-00

1
Out of stock

5

RNFCMNT,FRAME REAR

89A-21923-20-00

1
Out of stock

6

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

7

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

8

. RIVET, BLIND

90267-18141-00

1
Out of stock

9

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

10

RIVET(89R)

90269-04044-00

—
Out of stock

11

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

12

WASHER, PLATE

90201-04027-00

1
Out of stock

13

. BUSH, SOLID

90380-38205-00

1
Out of stock

14

. OIL SEAL

93102-38441-00

1
Out of stock

15

. OIL SEAL

93103-38172-00

1
Out of stock

16

. BUMPER, FRONT 2

89A-77512-00-00

1
Out of stock

17

. BOLT, FLANGE

95911-08040-00

1
Out of stock

18

. COVER 1

89A-2198F-00-00

1
Out of stock

19

. COVER 3

89A-2198J-00-00

1
Out of stock

20

. WASHER 2

89A-77526-00-00

1
Out of stock

21

RIVET, BLIND (8M6)

90267-48051-00

—

$1.88

In stock

22

SCREW, BIND(J39)

98980-06014-00

—

$5.66

In stock

23

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

24

NUT, NYLON

95707-06300-00

—

$3.20

In stock

25

CLAMP(51Y)

90465-08277-00

—
Out of stock

26

WASHER, PLATE

90201-04027-00

1
Out of stock

27

. WASHER 1

89A-77525-00-00

1
Out of stock

28

SHIELD, HEAT

89A-2199H-01-00

1
Out of stock

29

EMBLEM 1

8AX-77351-00-00

1
Out of stock

30

EMBLEM 2

8AX-77352-00-00

1
Out of stock

31

SHIELD, NOISE

89A-2199F-00-00

1
Out of stock

32

BRACKET, TOOL BOX FITTING

89A-21955-00-00

1
Out of stock

33

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

34

BRACKET 4

89A-2196G-00-00

1
Out of stock

35

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

36

COVER 2

89A-2198G-10-00

1
Out of stock

37

PATCH 5

82M-21965-00-00

1
Out of stock

38

PATCH 5

88R-21965-00-00

1
Out of stock

39

PATCH 6

82M-21966-00-00

1
Out of stock

40

BRACKET 3

89A-2196F-00-00

1
Out of stock

41

BOLT(4GV)

97017-05012-00

—

$6.17

In stock

42

FRAME UNDER 1

89A-2196A-01-00

1
Out of stock

43

RIVET, BLIND

90267-48018-00

—

$7.35

In stock

44

TRIM, LOWER

89A-77214-00-00

—

$6.66

In stock

45

PAD 1

89A-77151-00-00

1
Out of stock

46

PAD 2

89A-77152-00-00

1
Out of stock

47

SCREW, WITH WASHER (5U8)

90159-06056-00

—
Out of stock

48

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

49

COLLAR (3L6)

90387-06737-00

—

$6.60

In stock

50

WASHER, PLATE

90201-04027-00

1
Out of stock

51

RIVET, BLIND

90267-48018-00

—

$7.35

In stock
