1993 Yamaha Vmax-4 (VX750T) Seat Diagram

← All diagrams

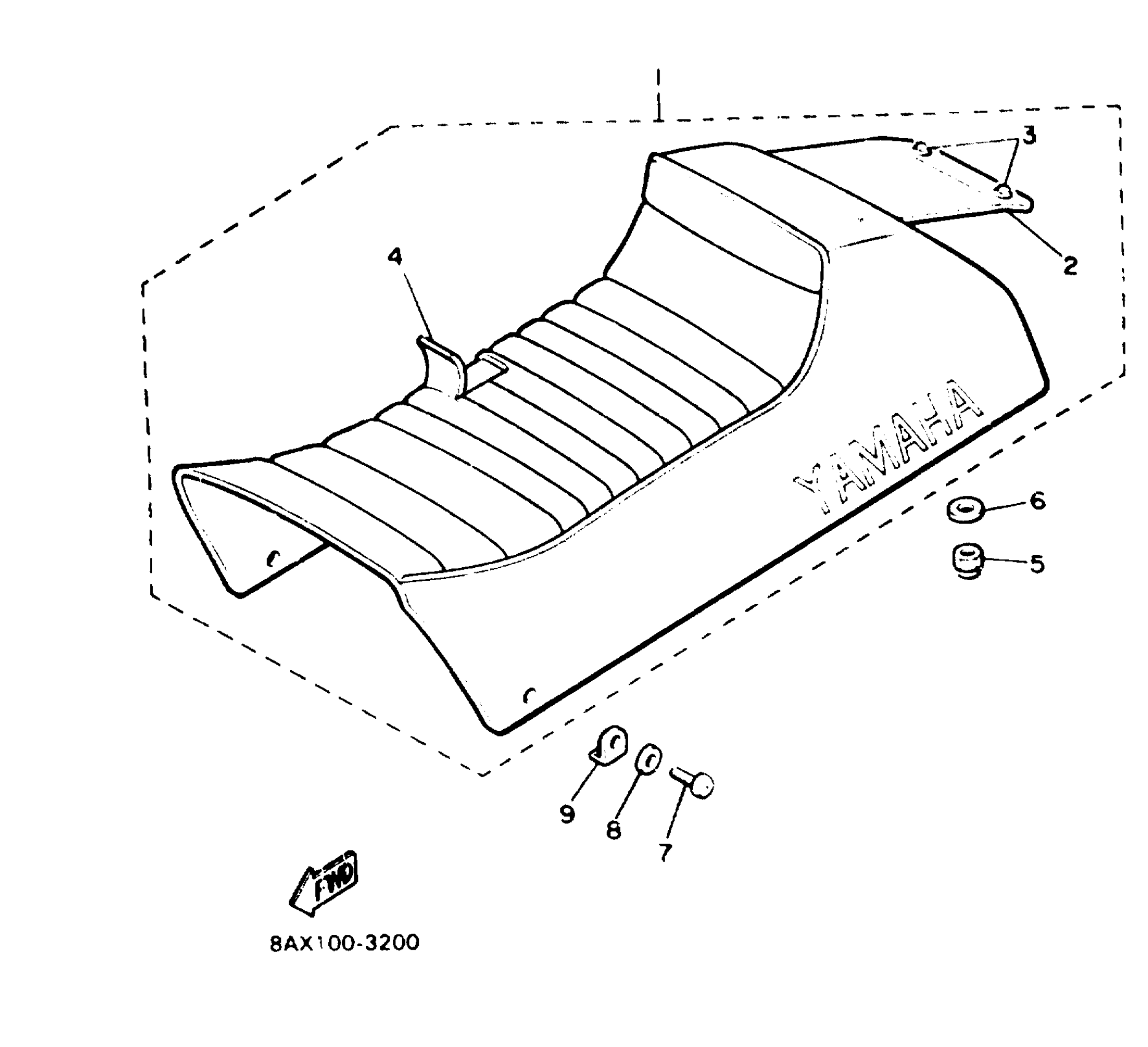

Find the part on the Seat diagram for your 1993 Yamaha Vmax-4 (VX750T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha Vmax-4 (VX750T) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASY

8BW-24710-10-00

1
Out of stock

2

. COVER, LUGGAGE BOX 2

8U9-77377-01-00

1
Out of stock

3

HOOK, SEAT

87E-24754-00-00

1

$13.06

In stock

4

. COVER, SINGLE SEAT

89A-24711-00-00

1
Out of stock

5

NUT, NYLON

95717-08300-00

1

$2.57

In stock

6

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

7

SCREW, BINDING

98907-06020-00

1

$6.18

In stock

8

WASHER, PLATE(36Y)

90201-063J2-00

1

$4.45

In stock

9

WASHER, CLAW

90214-14037-00

1
Out of stock
