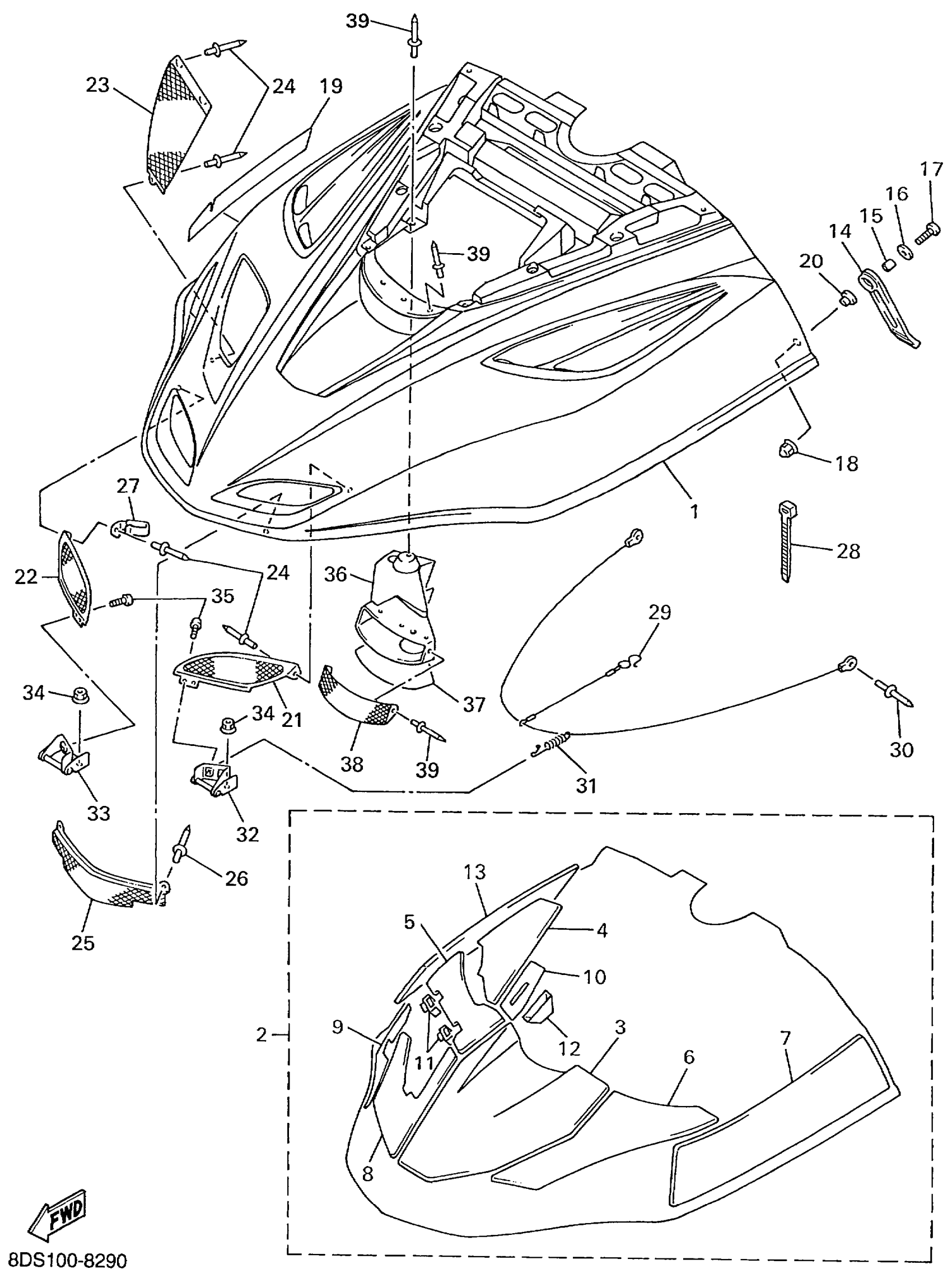

Yamaha VX700C (VMAX 700) 8DS2 1999 SHROUD Diagram

#

Description
Price

1

SHROUD

8CR-77111-01-00

Unavailable

2

LINING SET

8CR-W7726-00-00

Unavailable

3

DAMPER, NOISE 12

8CR-77272-00-00

$40.46

4

. DAMPER, NOISE 13

8CR-77273-00-00

Unavailable

5

. DAMPER, NOISE 14

8CR-77274-00-00

Unavailable

6

DAMPER, NOISE 15

8CR-77275-00-00

$24.43

7

DAMPER, NOISE 16

8CR-77276-00-00

$14.71

8

. DAMPER, NOISE 18

8CR-77278-00-00

Unavailable

9

. TAPE 1

8CR-7717E-00-00

Unavailable

10

. TAPE 2

8CR-7717F-00-00

Unavailable

11

. TAPE 3

8CR-7717G-00-00

Unavailable

12

. TAPE 4

8CR-7717H-00-00

Unavailable

13

. SHIELD, HEAT

8CR-2199H-00-00

Unavailable

14

BODY, LATCH 1

8V0-77171-00-00

$18.37

15

COLLAR (420)

90387-06241-00

$6.18

16

WASHER, PLATE

90201-06557-00

$2.75

17

SCREW, BINDING

98907-06025-00

$6.18

18

NUT, CROWN(1FN)

90176-06055-00

$3.89

19

TAPE, 5

8CS-7717J-00-00

Unavailable

20

C0LLAR

90387-062M9-00

$6.60

21

LOUVER 1

8CR-77131-00-00

Unavailable

22

LOUVER 2

8CR-77132-00-00

Unavailable

23

LOUVER 3

8CR-77133-00-00

Unavailable

24

RIVET, BLIND(8CJ)

90267-48182-00

$1.78

25

LOUVER 4

8CR-77134-00-00

Unavailable

26

RIVET, BLIND (8L0)

90267-48059-00

$2.46

27

CLAMP(51Y)

90465-08277-00

$9.43

28

CLAMP

90464-13077-00

$6.68

29

STOPPER, SHROUD

8CR-77118-00-00

Unavailable

30

RIVET, BLIND

90267-48018-00

Unavailable

31

CLAMP, ROD

89A-77159-00-00

$9.75

32

HINGE ASSY

8CR-77140-00-00

Unavailable

33

HINGE ASSY 2

8CR-7714A-00-00

$21.11

34

NUT, FLANGE(4MV)

95707-06500-00

$0.78

35

SCREW, BINDING

98907-06014-00

$5.60

36

DUCT

8CR-77194-00-00

$49.51

37

DAMPER, NOISE 17

8CR-77277-00-00

$18.54

38

LOUVER 5

8CR-77109-00-00

Unavailable

39

RIVET, BLIND(8CJ)

90267-48182-00

$1.78
