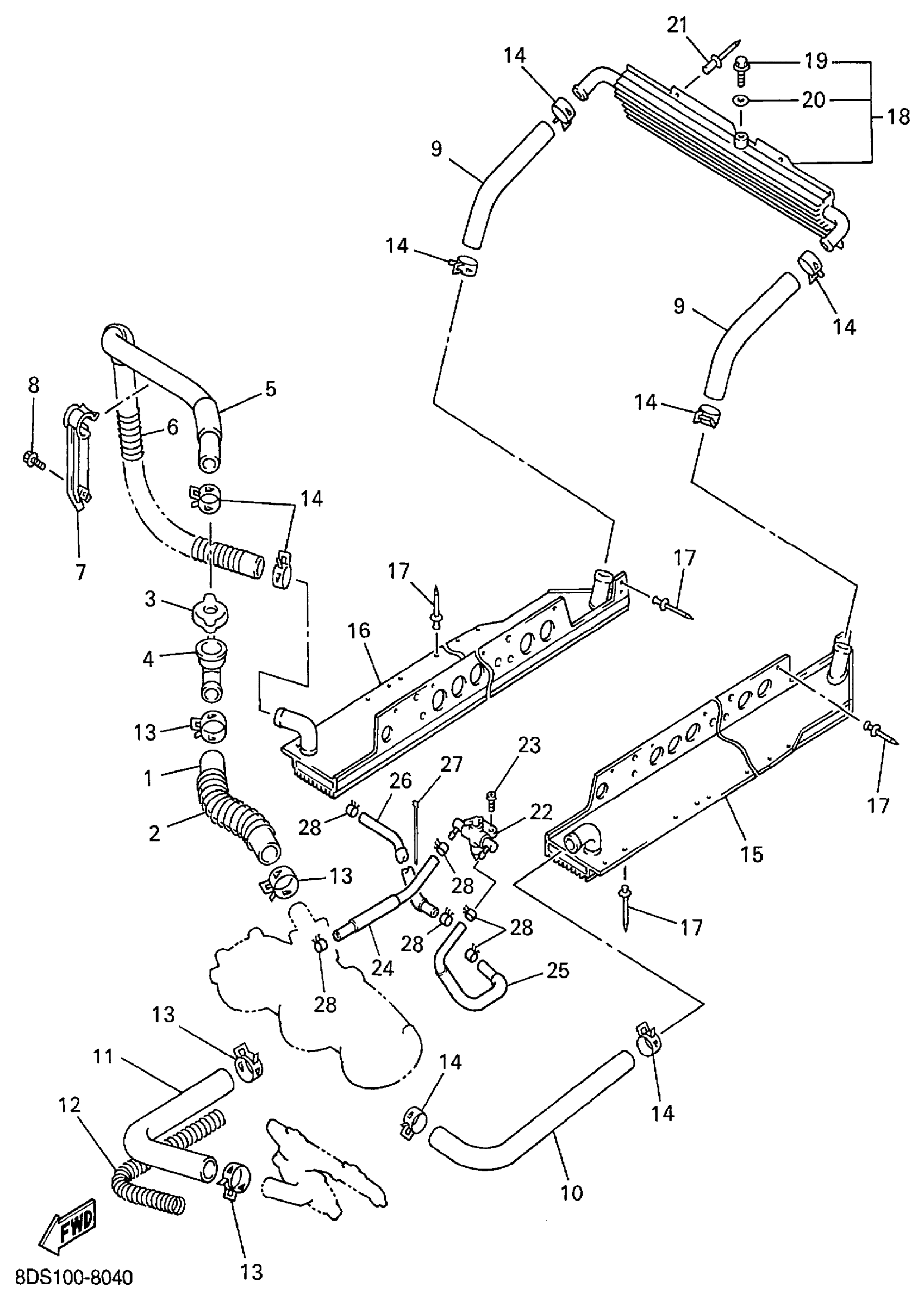

Yamaha VX700C (VMAX 700) 8DS2 1999 RADIATOR_HOSE Diagram

#

Description
Price

1

PIPE 2

8CH-12482-00-00

Unavailable

2

SPRING, COMPRESSION

90501-100K8-00

Unavailable

3

CAP, RADIATOR

4FL-12462-00-00

$55.82

4

SUPT, FILLER NECK

8CR-12591-00-00

Unavailable

5

PIPE 3

8CH-12483-10-00

Unavailable

6

SPRING, COMPRESSION

90501-143L9-00

Unavailable

7

CLAMP 1

8CR-12491-00-00

Unavailable

8

BOLT, FLANGE

95817-06014-00

$2.15

9

PIPE 4

8CR-12484-00-00

$15.52

10

PIPE 5

8CR-12485-00-00

Unavailable

11

PIPE 6

99999-03253-00

Unavailable

12

SPRING, COMPRESSION

90501-120K7-00

Unavailable

13

CLIP (8M6)

90467-28046-00

$12.43

14

CLIP (10V)

90467-23067-00

$3.86

15

HEAT EXCHANGER

8CH-1240E-02-00

Unavailable

16

HEAT EXCHANGER

8CH-1240F-03-00

Unavailable

17

RIVET, BLIND(8CR)

90267-47186-00

$2.31

18

HEAT EXCHANGER ASSY 4

8CH-1241A-01-00

Unavailable

19

BOLT, FLANGE

95817-06016-00

$1.49

20

WASHER, SEAL (7G5)

90210-06006-00

$5.72

21

RIVET, BLIND(8CR)

90267-47186-00

$2.31

22

COCK ASSY

8CH-1249A-03-00

Unavailable

23

SCREW, BINDING

98907-06020-00

$6.18

24

HOSE 1

8CH-1243A-01-00

Unavailable

25

HOSE 2

8CH-1243E-10-00

Unavailable

26

HOSE,3

8EX-1243F-00-00

Unavailable

27

BAND, SWITCH CORD

25G-83936-01-00

$4.12

28

CLIP

90467-11028-00

$5.14
