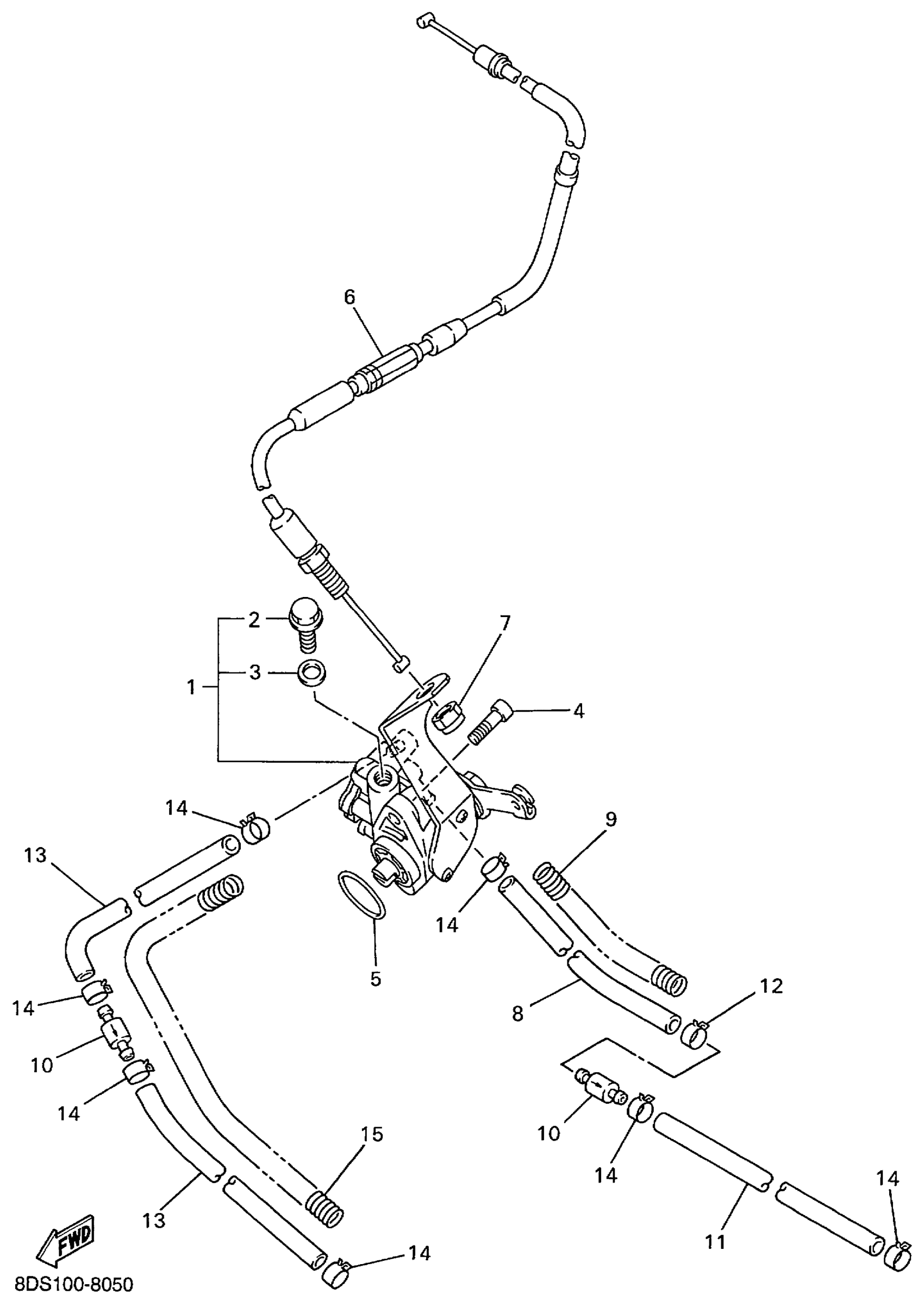

Yamaha VX700C (VMAX 700) 8DS2 1999 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8CH-13100-00-00

Unavailable

2

BOLT, BREATHER

89A-13185-00-00

$3.20

3

. GASKET, BREATHER BOLT

89A-13187-00-00

Unavailable

4

BOLT,SOCKET

91317-05014-00

$6.69

5

O-RING(3SB)

93210-20712-00

$3.91

6

PUMP CABLE ASSY

8CH-26320-01-00

Unavailable

7

NUT, NYLON

95717-08300-00

$2.57

8

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$9.15

9

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

10

CHECK VALVE

8CH-1316A-00-00

$39.07

11

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$9.15

12

CLIP(42X)

90467-07093-00

$1.72

13

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$9.15

14

CLIP (2A6)

90468-02025-00

$7.02

15

SPRING, COMPRESSION(3JK)

90501-101J5-00

Unavailable
