1997 Yamaha Vmax 600 XTC (Reverse) (VX600XTCRA) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1997 Yamaha Vmax 600 XTC (Reverse) (VX600XTCRA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

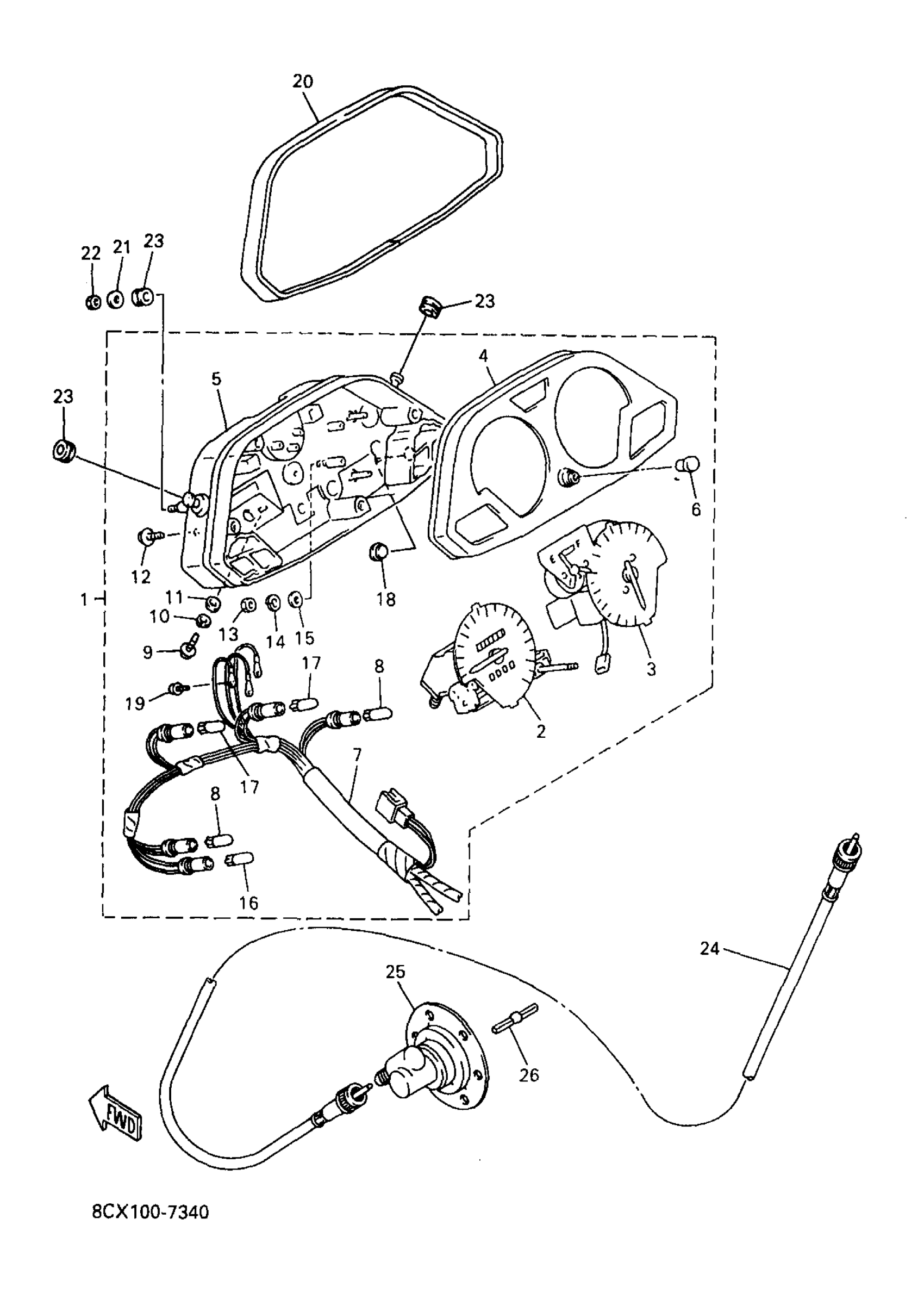

1997 Yamaha Vmax 600 XTC (Reverse) (VX600XTCRA) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

8CX-83500-40-00

1
Out of stock

2

SPEEDOMETER ASSY

8CR-83580-40-00

1
Out of stock

3

. TACHOMETER ASSEMBLY

8CX-83540-40-00

1
Out of stock

4

. COVER, METER

8CX-83559-40-00

1
Out of stock

5

. CASE, UNDER (8AS-8353H-20-00)

89A-8353H-40-00

1
Out of stock

6

KNOB, TRIP METER

29L-83578-00-00

—

$24.29

In stock

7

SOCKET CORD ASSY

8CX-83509-40-00

—

$56.71

In stock

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

9

SCREW, PAN HEAD

98517-04012-00

1

$3.28

In stock

10

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

11

WASHER(JF2)

92907-04600-00

1

$1.23

In stock

12

SCREW, TRUSS TAP.

97707-40014-00

—

$6.00

In stock

13

NUT(6TA)

95307-04600-00

1

$6.69

In stock

14

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

15

WASHER(JF2)

92907-04600-00

1

$1.23

In stock

16

BULB (6V 3W)

4N0-83516-00-00

—
Out of stock

17

BULB (12V-1.7W)

3GM-83517-00-00

—
Out of stock

18

. PLUG, BLIND

4BE-8352K-00-00

1
Out of stock

19

SCREW, WITH WASHER(36Y)

90159-03102-00

—
Out of stock

20

TRIM 5

8CR-77225-00-00

1
Out of stock

21

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

22

NUT(6TA)

95317-06600-00

—

$2.69

In stock

23

DAMPER

5J0-83513-00-00

—
Out of stock

24

SPEEDOMETER CABLE ASSY

8CR-83550-10-00

—

$72.28

In stock

25

METER GEAR HOUSING COMP.

8CR-47700-00-00

—

$142.55

In stock

26

JOINT

8K4-47715-00-00

—

$4.60

In stock
