1995 Yamaha Vmax 600 (VX600V) Track Suspension 2 Diagram

← All diagrams

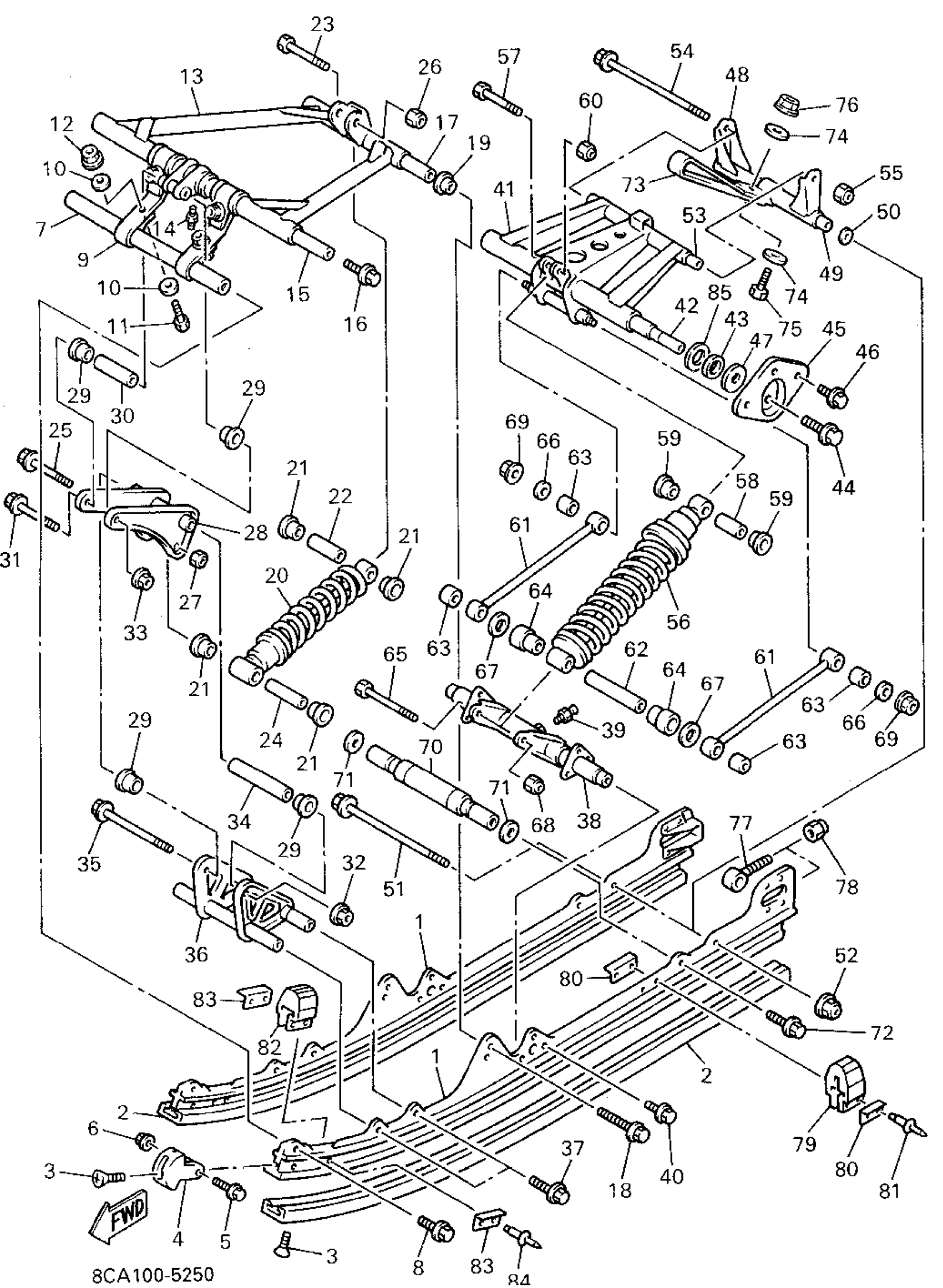

Find the part on the Track Suspension 2 diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Vmax 600 (VX600V) Track Suspension 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME, SLIDING

8AX-W4741-00-00

1
Out of stock

1

FRAME, SLIDING

8BX-W4741-00-00

1
Out of stock

2

RUNNER, SLIDING 1 (8AB-47421-00-00)

8AB-47421-10-XX

1
Out of stock

2

RUNNER 1, RED

8BX-47421-10-XX

1
Out of stock

3

SCREW, COUNTERSUNK

90151-06057-00

1
Out of stock

4

RUNNER,SLIDING 2

8AX-47422-01-00

1
Out of stock

5

BOLT, FLANGE

95817-06040-00

1
Out of stock

6

NUT,SELF-LOCKING

95607-06200-00

1
Out of stock

7

SHAFT 3

82M-47485-02-00

1
Out of stock

8

BOLT, FLANGE

95817-10030-00

1
Out of stock

9

STOPPER 1

8AB-47495-00-00

1
Out of stock

10

WASHER, PLATE

90201-06747-00

1
Out of stock

11

BOLT, HEXAGON

97017-06025-00

1
Out of stock

12

NUT, NYLON

95707-06300-00

1
Out of stock

13

ARM,PIVOT 1

89A-47331-03-00

1
Out of stock

14

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

15

SHAFT 6

8CM-47488-10-00

1
Out of stock

16

BOLT (8V0)

90109-10771-00

—
Out of stock

17

SHAFT 3

82M-47485-02-00

1
Out of stock

18

BOLT, FLANGE

95817-10030-00

1
Out of stock

19

COLLAR (8U7)

90387-105G6-00

—
Out of stock

20

SHOCK ABSORBER 2

8AB-47481-00-00

1
Out of stock

20

SHOCK ABSORBER 2

8BN-47481-00-00

1
Out of stock

20

SHOCK ABSORBER 2

8BR-47481-00-00

1
Out of stock

21

COLLAR (8U7)

90387-123G4-00

—
Out of stock

22

COLLAR

90387-08775-00

1
Out of stock

23

. BOLT

90101-08557-00

1
Out of stock

24

COLLAR

90387-08478-00

1
Out of stock

25

BOLT, WASHER BASED

90105-084A1-00

—
Out of stock

26

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

27

NUT, U

95617-08100-00

—
Out of stock

28

BRACKET 6

8U7-47464-00-00

1
Out of stock

29

COLLAR

90387-123G5-00

1
Out of stock

30

COLLAR

90387-08478-00

1
Out of stock

31

BOLT, FLANGE(JN5)

95817-08070-00

—
Out of stock

32

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

33

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

34

COLLAR

90387-084G0-00

1
Out of stock

35

BOLT, FLANGE

95817-08100-00

—
Out of stock

36

BRACKET 4

8AX-47418-00-00

1
Out of stock

37

BOLT, FLANGE(3GD)

95817-10025-00

—
Out of stock

38

BRACKET 2

8AX-47416-01-00

1
Out of stock

39

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

40

BOLT, FLANGE

95817-06020-00

—
Out of stock

41

ARM, PIVOT 2

8AV-47332-01-00

1
Out of stock

42

SHAFT 2

89A-47475-01-00

1
Out of stock

42

SHAFT 2

8AB-47475-00-00

1
Out of stock

43

COLLAR(8AB)

90387-2004V-00

—
Out of stock

44

BOLT (8V0)

90109-10771-00

—
Out of stock

45

BRACKET,REAR 2

8AB-47425-00-00

1
Out of stock

46

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

47

WASHER, PLATE (856)

90201-10321-00

—
Out of stock

48

BRACKET 3

8U7-47417-00-00

1
Out of stock

49

COLLAR

90387-08632-00

1
Out of stock

50

WASHER (1T1)

90201-08649-00

—
Out of stock

51

BOLT, WASHER BASED(51X)

90105-08346-00

—
Out of stock

52

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

53

COLLAR (8U7)

90387-083G6-00

—
Out of stock

54

BOLT, FLANGE

95827-08220-00

—
Out of stock

55

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

56

SHOCK ABSORBER

8AB-47480-00-00

1
Out of stock

56

SHOCK ABSORBER

8BN-47480-00-00

1
Out of stock

56

SHOCK ABSORBER

8BA-47480-00-00

1
Out of stock

56

SHOCK ABSORBER

8BN-47480-00-00

1
Out of stock

56

SHOCK ABSORBER

8BA-47480-00-00

1
Out of stock

57

BOLT(88R)

90101-10738-00

—
Out of stock

58

COLLAR (8U7)

90387-105G5-00

—
Out of stock

59

COLLAR (8U7)

90387-145G7-00

—
Out of stock

60

NUT, U

95617-10100-00

—
Out of stock

61

ROD, RELAY

8U7-47494-02-00

—
Out of stock

62

COLLAR

90387-1007P-00

1
Out of stock

63

COLLAR (8U7)

90387-143G7-00

—
Out of stock

64

COLLAR (8U7)

90387-144G2-00

—
Out of stock

65

BOLT

90101-10747-00

1
Out of stock

66

WASHER (853)

90201-08326-00

—
Out of stock

67

WASHER PLATE 148272190000

90201-14215-00

—
Out of stock

68

NUT, SELF-LOCKING(JN5)

95607-10200-00

—
Out of stock

69

NUT, NYLON

95717-08300-00

—
Out of stock

70

SHAFT 4

84J-47486-00-00

1
Out of stock

71

WASHER, PLATE (17K)

90201-106F2-00

—
Out of stock

72

BOLT, FLANGE

95817-10030-00

1
Out of stock

73

STOPPER 2

8AB-47496-00-00

1
Out of stock

74

WASHER, PLATE

90201-06747-00

1
Out of stock

75

BOLT(21W)

97017-06035-00

—
Out of stock

76

NUT, NYLON

95707-06300-00

1
Out of stock

77

COLLAR 3

8K2-47479-01-00

—
Out of stock

78

NUT, NYLON

95707-10300-00

—
Out of stock

79

DAMPER 1

89A-47456-00-00

1
Out of stock

80

PLATE, DAMPER

8K2-47458-01-00

—
Out of stock

81

RIVET, BLIND (8K4)

90267-48062-00

—
Out of stock

82

DAMPER 1

83R-47456-00-00

1
Out of stock

83

PLATE, DAMPER

8K2-47458-01-00

—
Out of stock

84

RIVET, BLIND (8K4)

90267-48062-00

—
Out of stock

85

WASHER, PLATE(1KE)

90201-207J5-00

—
Out of stock
