1995 Yamaha Vmax 600 (VX600V) Primary Sheave Diagram

← All diagrams

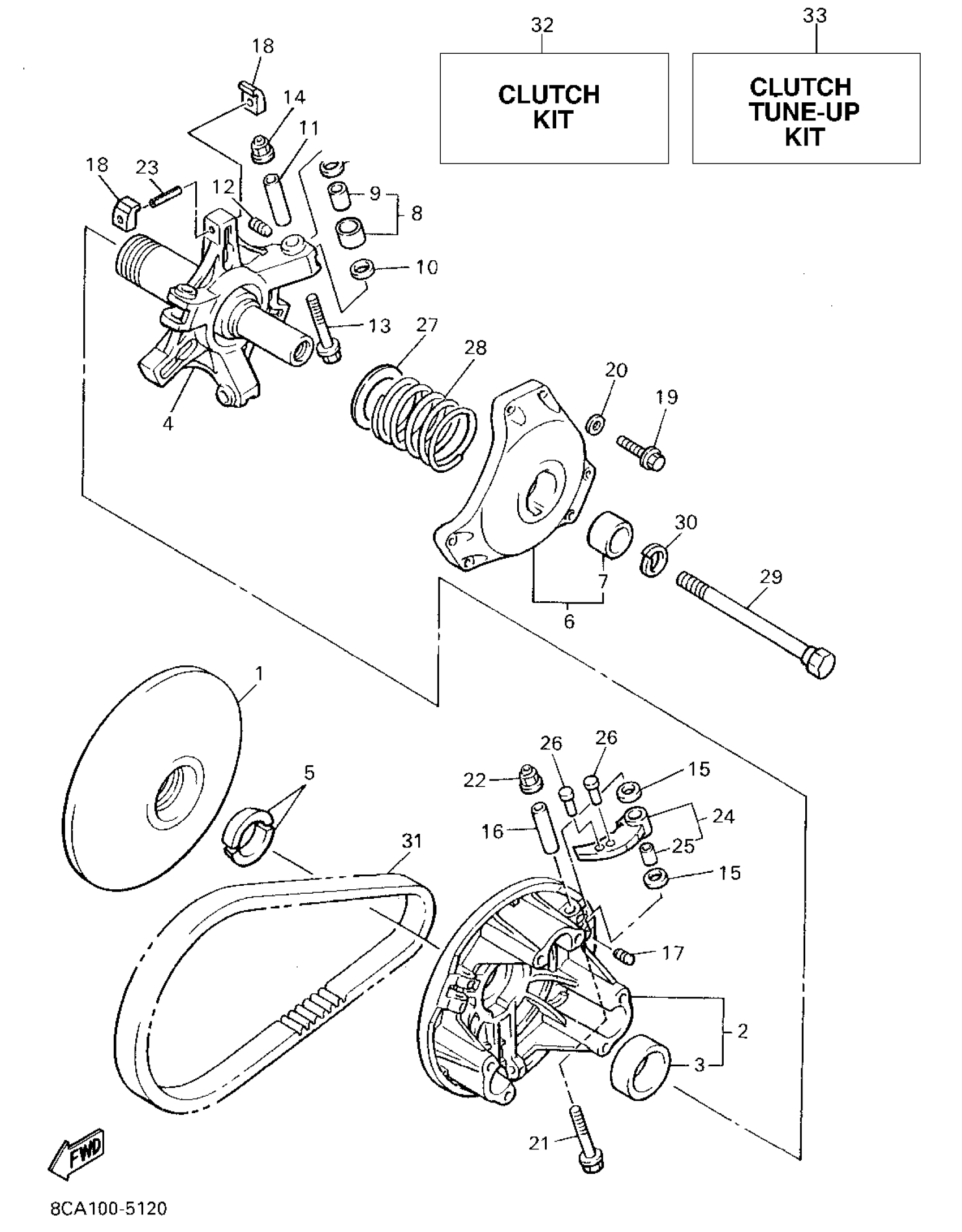

Find the part on the Primary Sheave diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Vmax 600 (VX600V) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

8BV-17611-19-00

1
Out of stock

2

1

$430.68

In stock

3

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

1

$50.08

In stock

4

SPIDER COMPLETE

8BW-17640-11-00

—

$293.52

In stock

5

STOPPER

8V0-17639-00-00

1

$10.52

In stock

6

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

—

$90.97

In stock

7

. BUSH, BIMETAL FORMED

90384-28244-00

1
Out of stock

8

ROLLER, COMP

8BH-17624-20-00

1

$60.88

In stock

9

. BUSH, SOLID

90380-08229-00

1
Out of stock

10

WASHER, PLATE(88R)

90202-08204-00

1
Out of stock

11

COLLAR

90387-0514T-00

1

$14.86

In stock

12

BOLT, SET

90113-05041-00

1
Out of stock

13

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

14

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

15

WASHER, PLATE(88R)

90202-08204-00

1
Out of stock

16

COLLAR

90387-0514T-00

1

$14.86

In stock

17

BOLT, SET

90113-05041-00

1
Out of stock

18

SLIDER

8BW-17653-00-00

—

$13.86

In stock

19

BOLT

95017-06030-00

1
Out of stock

20

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

21

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

22

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

23

PIN, SPRING (7F7)

91609-50032-00

—

$3.66

In stock

24

WEIGHT COMP

8CA-17605-01-00

1
Out of stock

25

. BUSH, SOLID

90380-08244-00

1
Out of stock

26

—

$7.55

In stock

26

RIVET, COUNTER SUNK (8G8)

90261-06017-00

—
Out of stock

26

—

$6.82

In stock

26

—

$2.72

In stock

26

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—

$6.78

In stock

26

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—

$6.78

In stock

26

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

—

$6.78

In stock

26

—

$5.62

In stock

27

WASHER, PLATE(88S)

90201-483P9-00

—

$11.66

In stock

28

SPRING, COMPRESSION(89L)

90501-521J6-00

—

$37.82

In stock

28

PRIMARY SPRING

90501-525J8-00

—

$37.45

In stock

28

SPRING, COMPRESSION(8AV)

90501-550J8-00

—

$45.37

In stock

28

SPRING, COMPRESSION(8AY)

90501-582J1-00

—

$58.54

In stock

28

SPRING, COMPRESSION(8CG)

90501-585J3-00

—

$28.94

In stock

28

SPRING, COMPRESSION(8AY)

90501-602J0-00

—

$38.97

In stock

28

SPRING, COMPRESSION(8CG)

90501-605J5-00

—

$35.58

In stock

29

BOLT (L=156.5MM)

8V0-17647-10-00

—

$21.45

In stock

30

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

31

V-BELT

89L-17641-02-00

1
Out of stock

32

CLUTCH ASSY

8AB-17601-19-00

1
Out of stock

33

CLUTCH TUNE-UP KIT

8AB-00000-52-00

1
Out of stock
