1995 Yamaha Vmax 600 (VX600V) Track Drive 1 Diagram

← All diagrams

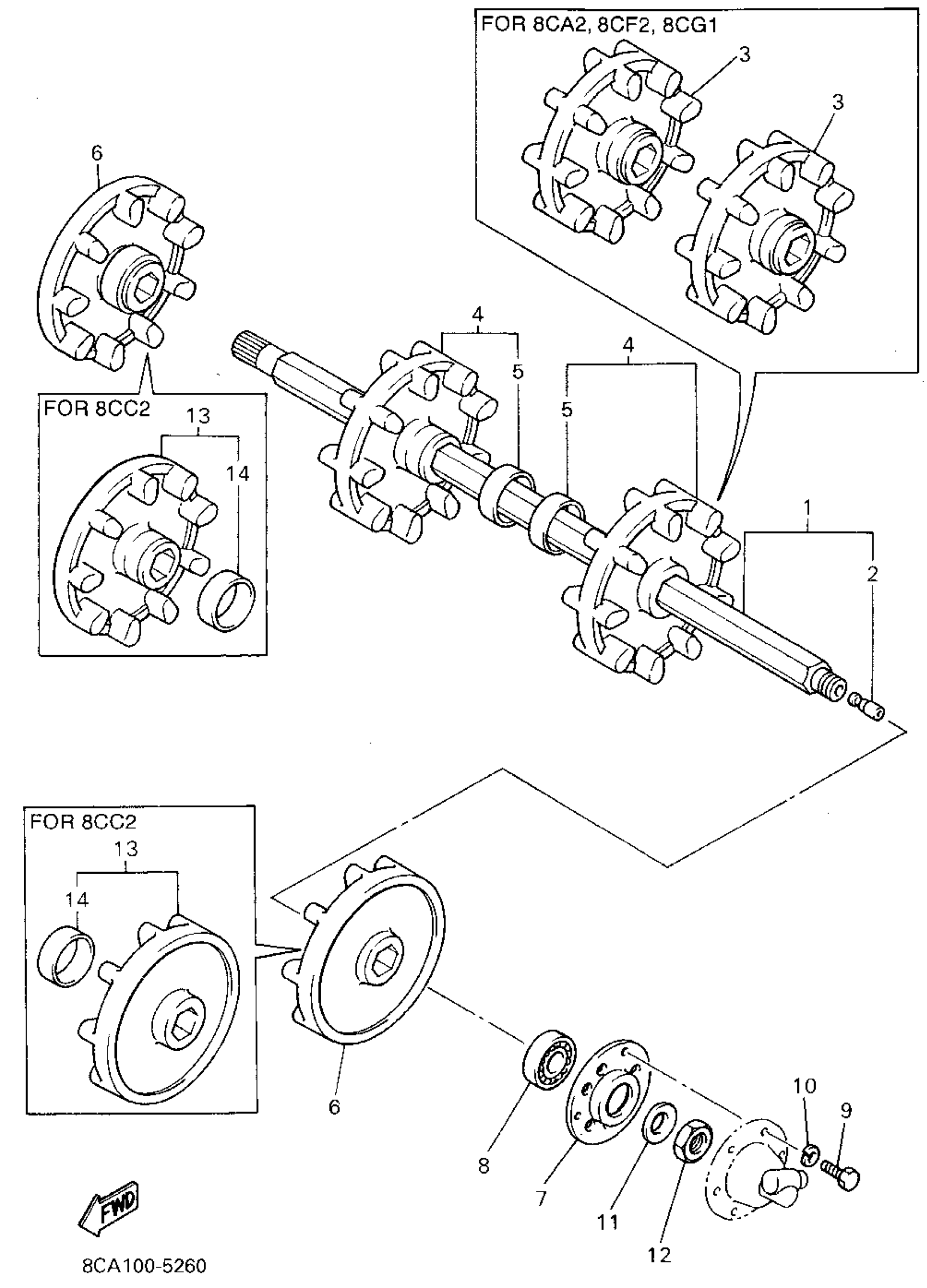

Find the part on the Track Drive 1 diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Vmax 600 (VX600V) Track Drive 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, FRONT

8AB-W4751-10-00

1
Out of stock

2

CONNECTOR

8K4-47577-00-00

1

$16.57

In stock

3

WHEEL, SPROCKET 1

8CM-47531-10-00

1

$139.82

In stock

4

WHEEL, SPROCKET 1

8CM-47531-10-00

1

$139.82

In stock

5

COLLAR(83R)

90387-514Y2-00

1

$11.23

In stock

6

WHEEL, SPROCKET 2

8BW-47532-10-00

1

$113.55

In stock

7

HOUSING, FRONT AXLE

89A-47551-00-00

1
Out of stock

8

BEARING(89A)

93306-27206-00

1

$64.23

In stock

9

BOLT, HEXAGON

97017-08016-00

1
Out of stock

10

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

11

WASHER 810475810000

90208-22001-00

1

$7.35

In stock

12

NUT (821-47579-00)

90170-22094-00

1

$5.34

In stock

13

WHEEL, SPROCKET 2

8CM-47532-10-00

1
Out of stock

14

COLLAR(83R)

90387-514Y2-00

1

$11.23

In stock
