1995 Yamaha Vmax 600 (VX600V) Secondary Sheave Diagram

← All diagrams

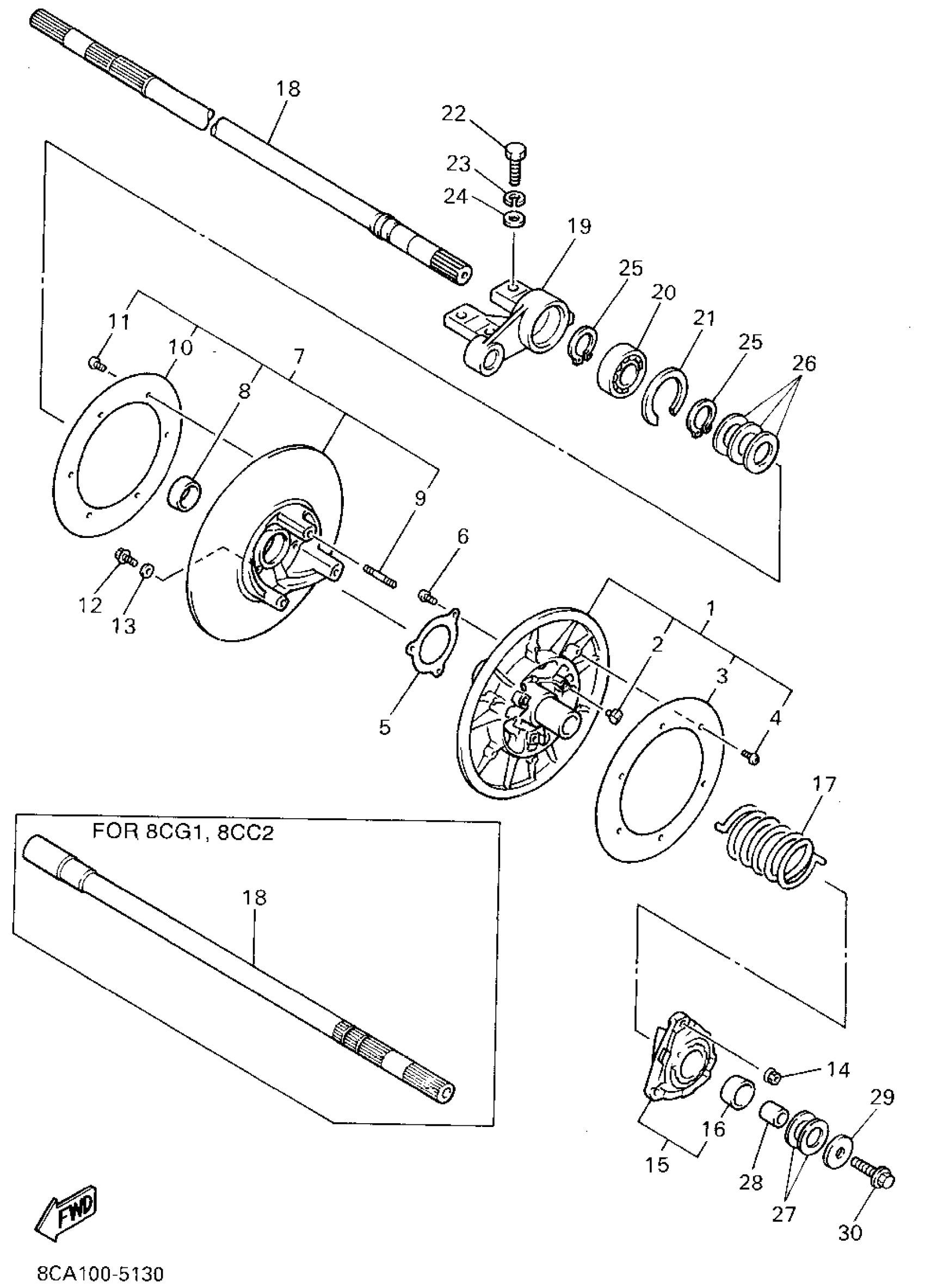

Find the part on the Secondary Sheave diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Vmax 600 (VX600V) Secondary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SECONDARY FIXED SHEAVE COMP.

8BV-17660-10-00

1
Out of stock

1

SECONDARY FIXED SHEAVE COMP.

8BV-17660-10-00

1
Out of stock

2

SHOE, RAMP

8AV-17688-10-00

1
Out of stock

3

. PLATE 1

8BV-17665-00-00

1
Out of stock

4

GASKET, EXHAUST

98507-05008-00

1
Out of stock

5

STOPPER, HOLDER

8BV-17656-00-00

1
Out of stock

6

SCREW, BINDING

98907-06016-00

1
Out of stock

7

SECONDARY SLIDING SHEAVE

8BV-17670-10-00

—
Out of stock

7

SECONDARY SLIDING SHEAVE

8BV-17670-10-00

—
Out of stock

8

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

1
Out of stock

9

BOLT, STUD 3

95617-08630-00

1
Out of stock

10

. PLATE 1

8BV-17665-00-00

1
Out of stock

11

GASKET, EXHAUST

98507-05008-00

1
Out of stock

12

BOLT, WASHER BASED(8BN)

90105-06734-00

1
Out of stock

13

WASHER, PLATE (22K)

90201-061H1-00

1
Out of stock

13

WASHER, PLATE (371)

90201-06431-00

—
Out of stock

14

NUT(8BN)

90179-08655-00

—
Out of stock

15

SEAT SPRING SET

8BV-17604-11-00

—
Out of stock

15

SEAT SPRING SET

8BV-17604-31-00

—
Out of stock

15

SEAT SPRING SET

8BV-17604-91-00

—
Out of stock

16

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

1
Out of stock

17

SPRING, TORSION(8AB)

90508-536A9-00

—
Out of stock

17

SPRING, TORSION(8BN)

90508-556A2-00

—
Out of stock

18

SHAFT,SECONDARY

8CL-17681-01-00

1
Out of stock

18

SHAFT, SECONDARY

8CM-17681-00-00

1
Out of stock

19

HOUSING, BEARING

8AB-47631-00-00

1
Out of stock

20

BEARING(83R)

93306-20582-00

—
Out of stock

21

CIRCLIP(26H)

99009-52500-00

—
Out of stock

22

BOLT,HEXAGON

97027-08022-00

1
Out of stock

23

WASHER(JN5)

92907-08100-00

—
Out of stock

24

WASHER(6TA)

92907-08600-00

—
Out of stock

25

CIRCLIP (256)

93410-25017-00

—
Out of stock

26

WASHER, PLATE (8R6)

90201-252F1-00

—
Out of stock

26

WASHER, PLATE (888)

90201-25526-00

—
Out of stock

26

WASHER, PLATE (888)

90201-25527-00

—
Out of stock

27

WASHER, PLATE (T=0.5)

90201-222F0-00

1
Out of stock

27

WASHER, PLATE (8L8)

90201-225A4-00

—
Out of stock

28

COLLAR

90387-1405J-00

1
Out of stock

29

WASHER, PLATE(42X)

90201-105H3-00

—
Out of stock

30

BOLT, WASHER BASED

90105-10741-00

1
Out of stock
