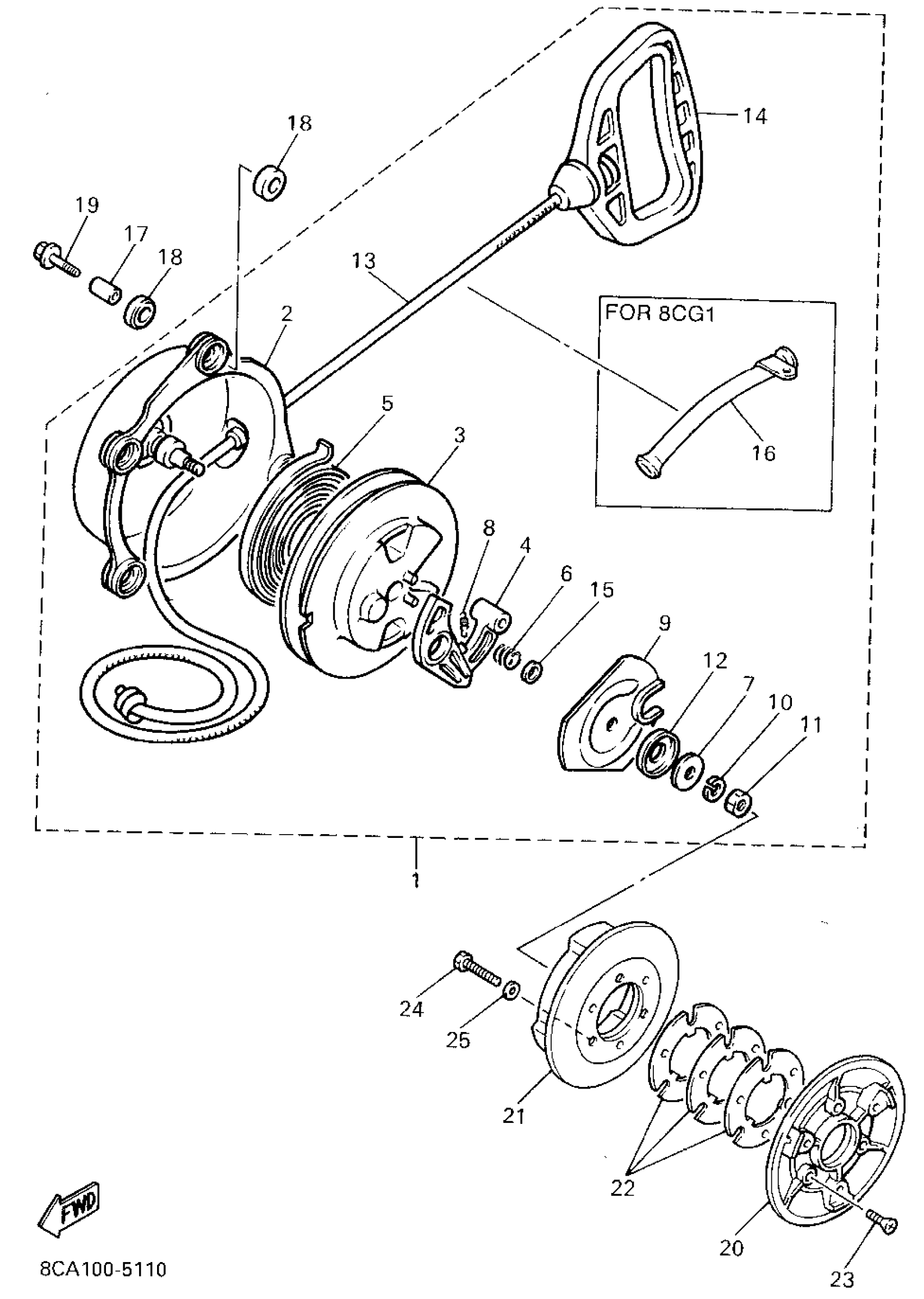

Yamaha VX600V (VMAX 600) 1995 STARTER Diagram

#

Description
Price

1

STARTER ASSY

84M-15710-01-00

Unavailable

1

STARTER ASSY

84M-15710-01-00

Unavailable

2

. CASE, STARTER

82M-15711-00-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$44.27

4

PAWL, DRIVE

8F3-15741-01-00

$20.42

5

SPRING, STARTER

8F3-15713-01-00

$39.64

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$8.88

7

WASHER, THRUST

8F3-15739-01-00

$10.70

8

SPRING, RETURN

8F3-15734-00-00

$4.97

9

. PLATE, DRIVE

82M-15716-00-00

Unavailable

10

WASHER, SPRING

92995-06100-00

$3.04

11

NUT(650)

95380-06700-00

$5.75

12

WASHER, THRUST

8G5-15739-00-00

$6.73

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.39

14

HANDLE, STARTER

8F3-15755-00-00

$21.46

15

COLLOR

82M-15779-00-00

Unavailable

16

. GUIDE, ROPE

8BB-15758-00-00

Unavailable

17

COLLAR

90387-063E9-00

Unavailable

18

BUSH (8M6)

90385-12036-00

Unavailable

19

BOLT, WITH WASHER(89J)

90119-06211-00

Unavailable

20

PULLEY 1

8CA-12618-00-00

Unavailable

21

PULLEY, STARTER

8CA-15723-00-00

Unavailable

22

SHIM

8CA-15721-00-00

Unavailable

22

SHIM

8CA-15721-00-00

Unavailable

23

SCREW, FLAT HEAD(4EM)

98707-06016-00

Unavailable

24

BOLT, HEXAGON

97017-08030-00

Unavailable

25

WASHER(6TA)

92907-08600-00

Unavailable
