1995 Yamaha Vmax 600 (VX600V) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

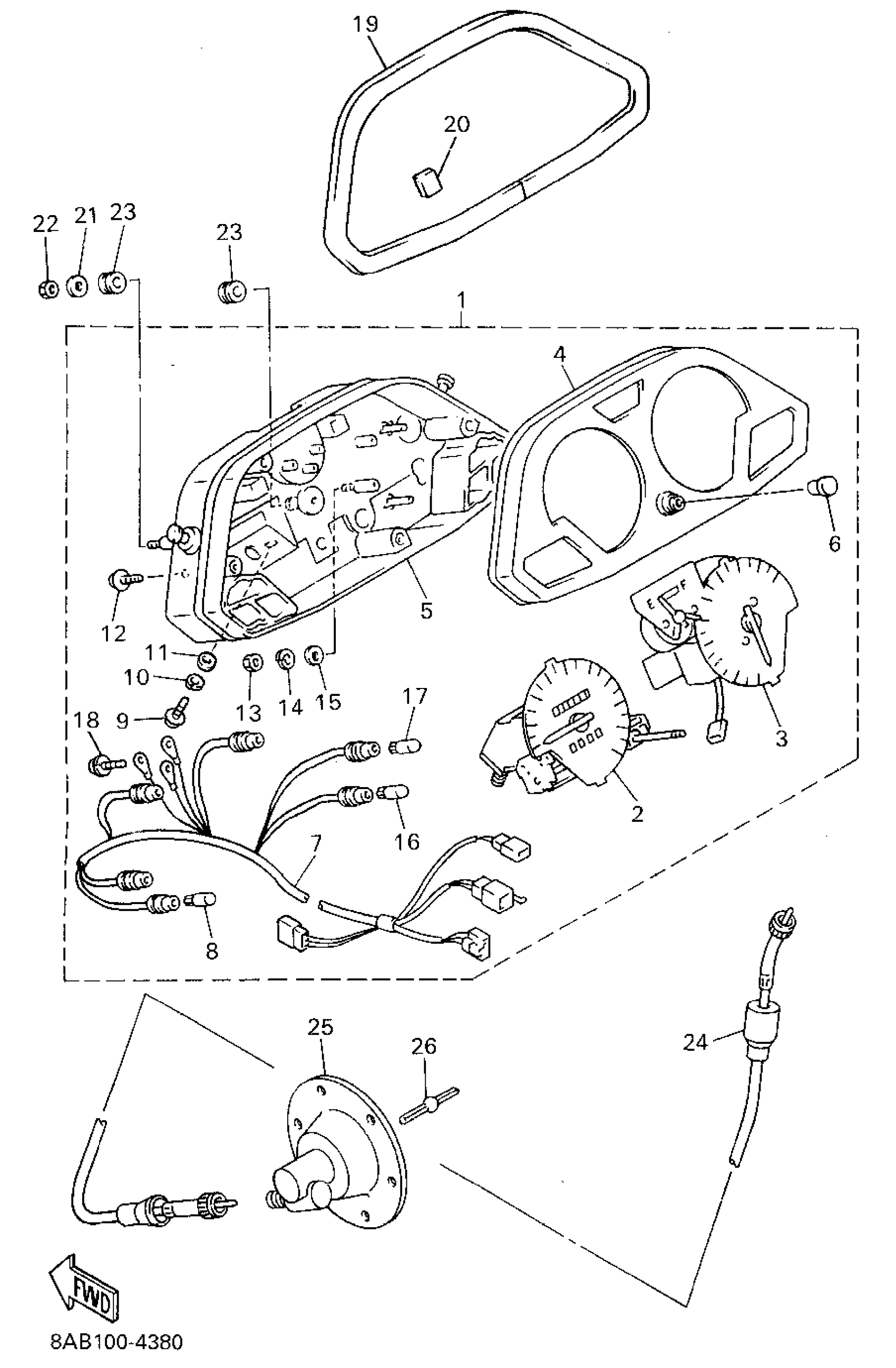

1995 Yamaha Vmax 600 (VX600V) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASY

89A-83500-42-00

1
Out of stock

2

SPEEDOMETER ASSY

8CR-83580-40-00

1
Out of stock

3

TACHOMETER ASSY

89A-83540-42-00

1
Out of stock

4

COVER,METER

88R-83559-20-00

1
Out of stock

5

. CASE, UNDER (8AS-8353H-20-00)

89A-8353H-40-00

1
Out of stock

6

KNOB, TRIP METER

29L-83578-00-00

—

$24.29

In stock

7

. SOCKET CORD ASSEMBLY

89A-83509-40-00

1
Out of stock

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

9

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

12

SCREW, TAPPING (10M)

90164-04009-00

1
Out of stock

13

NUT(6TA)

95307-04600-00

1

$6.69

In stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

15

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

16

BULB (6V 3W)

4N0-83516-00-00

—
Out of stock

17

BULB (12V-1.7W)

3GM-83517-00-00

—
Out of stock

18

SCREW, WITH WASHER(36Y)

90159-03102-00

—
Out of stock

19

TRIM 5

89A-77225-00-00

1
Out of stock

20

DAMPER 1

89A-77198-00-00

1
Out of stock

21

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

22

NUT(6TA)

95317-06600-00

—

$2.69

In stock

23

DAMPER

5J0-83513-00-00

—
Out of stock

24

SPEEDOMETER CABLE ASSEMBLY

8AB-83550-00-00

1
Out of stock

25

METER GEAR HOUSING COMP

83R-47700-00-00

—

$147.58

In stock

26

JOINT

8K4-47715-00-00

—

$4.60

In stock
