1995 Yamaha Vmax 600 (VX600V) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

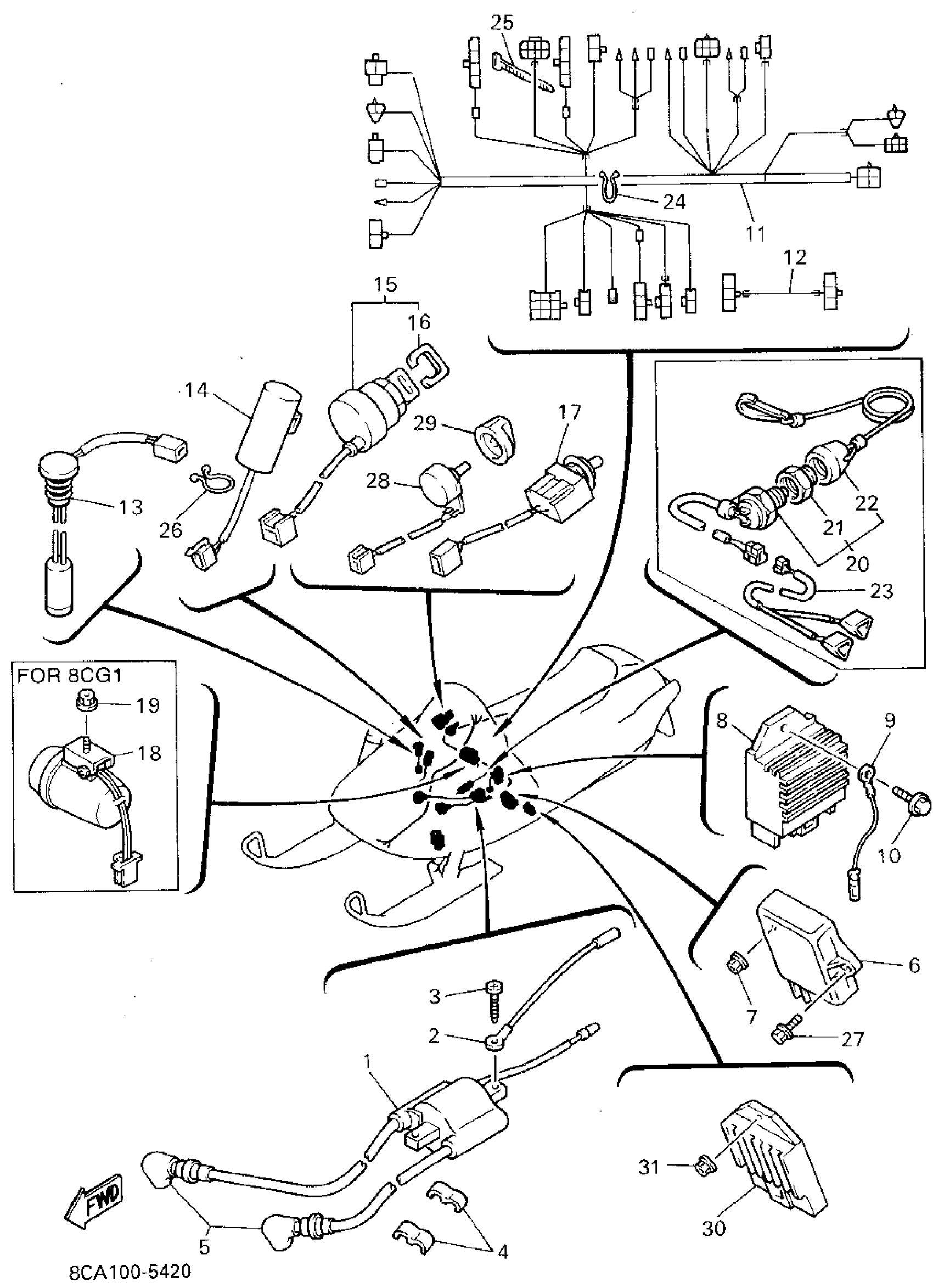

1995 Yamaha Vmax 600 (VX600V) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

8AB-82310-07-00

1
Out of stock

2

WIRE, SUB-LEAD

87D-82318-00-00

1
Out of stock

3

SCREW, TAPPING(65J)

97780-60625-00

1

$2.75

In stock

4

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

5

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

6

C.D.I. UNIT ASSEMBLY

8CA-85540-00-00

1
Out of stock

7

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

8

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

1

$91.88

In stock

9

WIRE, SUB-LEAD

87D-82318-00-00

1
Out of stock

10

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

11

WIRE HARNESS ASSEMBLY

8AB-82590-10-00

1
Out of stock

12

WIRE, LEAD

8AB-8471G-00-00

1
Out of stock

13

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

—

$60.48

In stock

14

CONDENSER, SMOOTHING

1NL-81965-01-00

—
Out of stock

15

MAIN SWITCH ASSY

8AB-82510-01-00

1
Out of stock

16

CAP, KEY

526-82579-00-00

—

$6.72

In stock

17

SWITCH

8JD-82917-00-00

—
Out of stock

18

BUZZER

8CL-83383-00-00

1
Out of stock

19

NUT,SELF-LOCKING

95607-06200-00

—

$10.25

In stock

20

STOP SWITCH ASSY

8H8-82550-01-00

—

$83.12

In stock

21

NUT

8H8-82557-00-00

—

$3.78

In stock

22

CAP, SWITCH

8H8-82552-09-00

—

$42.05

In stock

23

WIRE, SUB-LEAD

89L-82318-00-00

—

$31.15

In stock

24

CLAMP

90464-20031-00

1

$2.62

In stock

25

BAND

341-26397-01-00

1
Out of stock

26

CLAMP (3Y2)

90464-16039-00

—
Out of stock

27

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

28

RESISTOR, VARIABLE

8CR-87283-00-00

1
Out of stock

29

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

1
Out of stock

30

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

1
Out of stock

31

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock
