1995 Yamaha Vmax 600 (VX600V) Headlight Diagram

← All diagrams

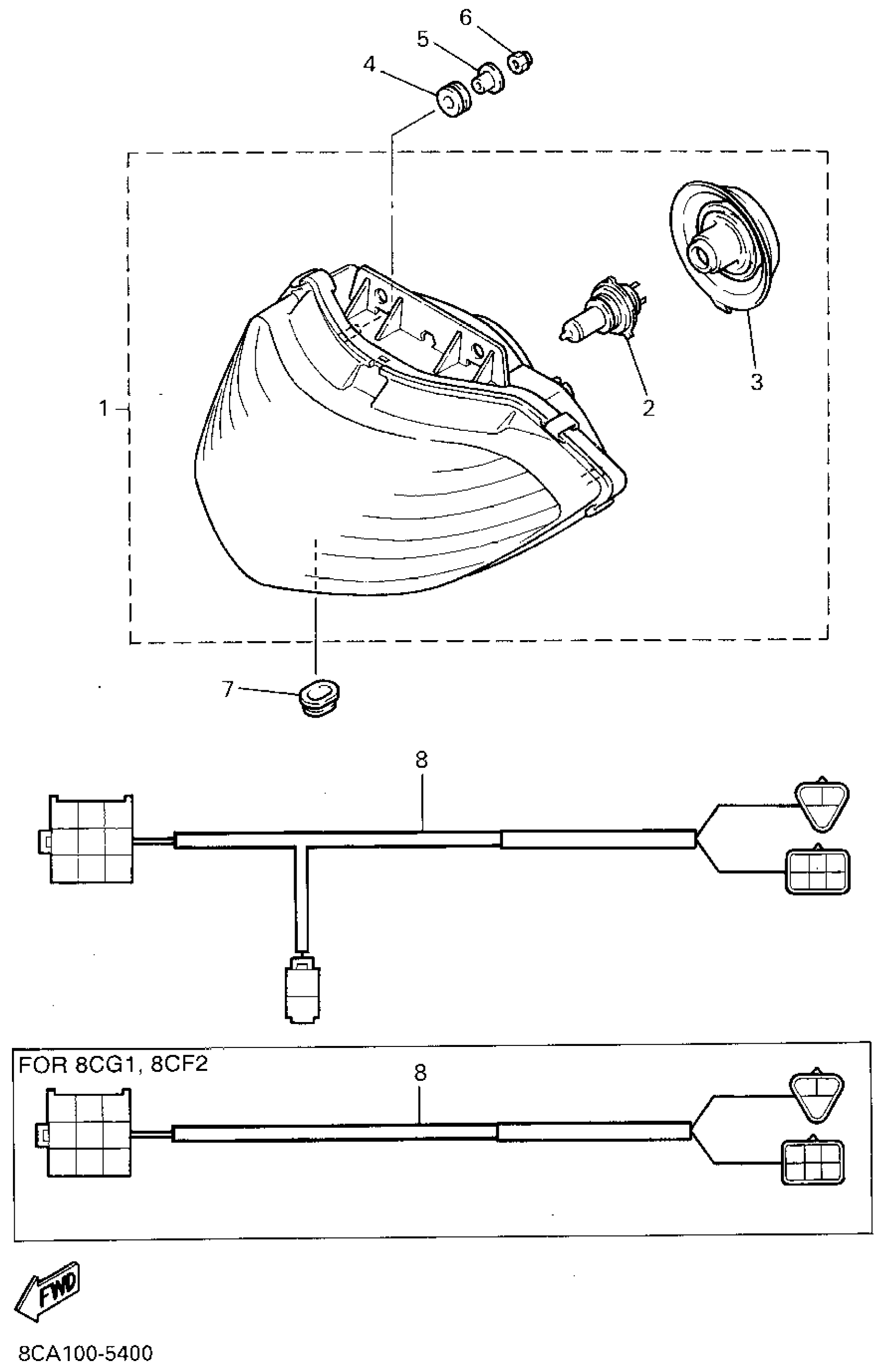

Find the part on the Headlight diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Vmax 600 (VX600V) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASY

8AB-84310-01-00

1
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

COVER, SOCKET

89A-84397-00-00

—

$11.09

In stock

4

GROMMET (1E5)

90480-13163-00

1

$6.33

In stock

5

COLLAR(42G)

90387-062L2-00

1
Out of stock

6

NUT(6TA)

95317-06600-00

1

$2.69

In stock

7

GROMMET

90480-01580-00

1
Out of stock

8

CORD,HEADLIGHT

8AB-84359-10-00

1
Out of stock

8

CORD,HEADLIGHT

8AB-84359-10-00

1
Out of stock
