2001 Yamaha V-MAX 500 (VX500F) Windshield Diagram

← All diagrams

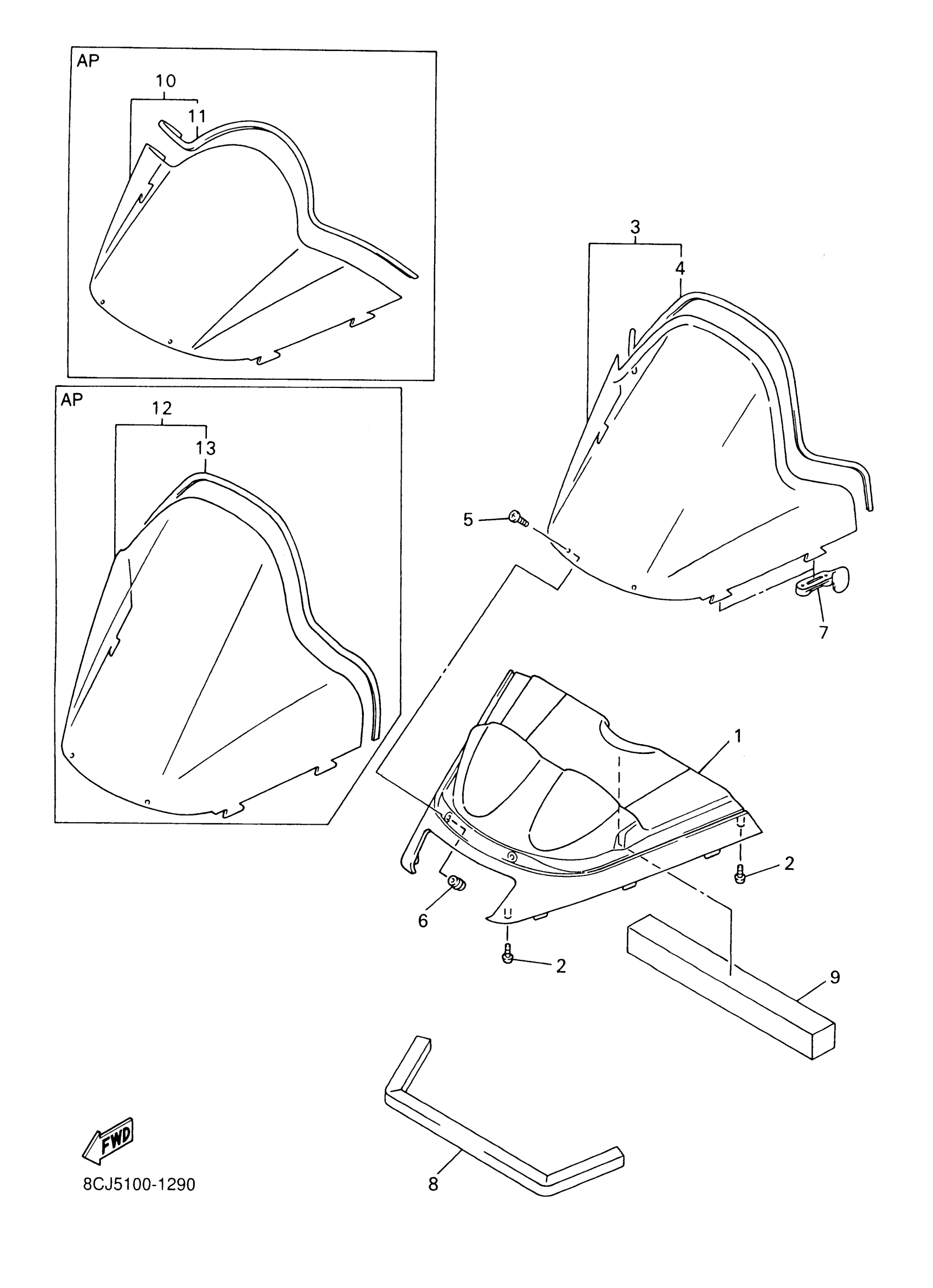

Find the part on the Windshield diagram for your 2001 Yamaha V-MAX 500 (VX500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha V-MAX 500 (VX500F) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLIGHT

8DF-77251-01-00

1
Out of stock

2

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

3

WINDSHIELD, VMAX

8CR-77210-00-XX

1
Out of stock

4

TRIM,UPPER

87K-77213-00-00

1
Out of stock

5

SCREW, ROUND HEAD(1UX)

90150-05024-00

1

$2.85

In stock

6

NUT(1KT)

90179-05523-00

1

$4.33

In stock

7

FASTNER

82H-77223-00-00

1

$7.63

In stock

8

DAMPER, NOISE 19

8CR-77279-00-00

1
Out of stock

9

SHIELD, NOISE 2

8CR-2199J-00-00

1

$30.09

In stock

10

WINDSHIELD COMP. (8CV-77210-00-00)

8CV-77210-00-XX

1
Out of stock

11

TRIM,UPPER

87K-77213-00-00

1
Out of stock

12

WINDSHIELD COMP.

8DM-77210-00-00

1
Out of stock

13

TRIM, UPPER

8DM-77213-00-00

—

$35.48

In stock
