2001 Yamaha V-Max 500 (VX500F) Emblem Diagram

← All diagrams

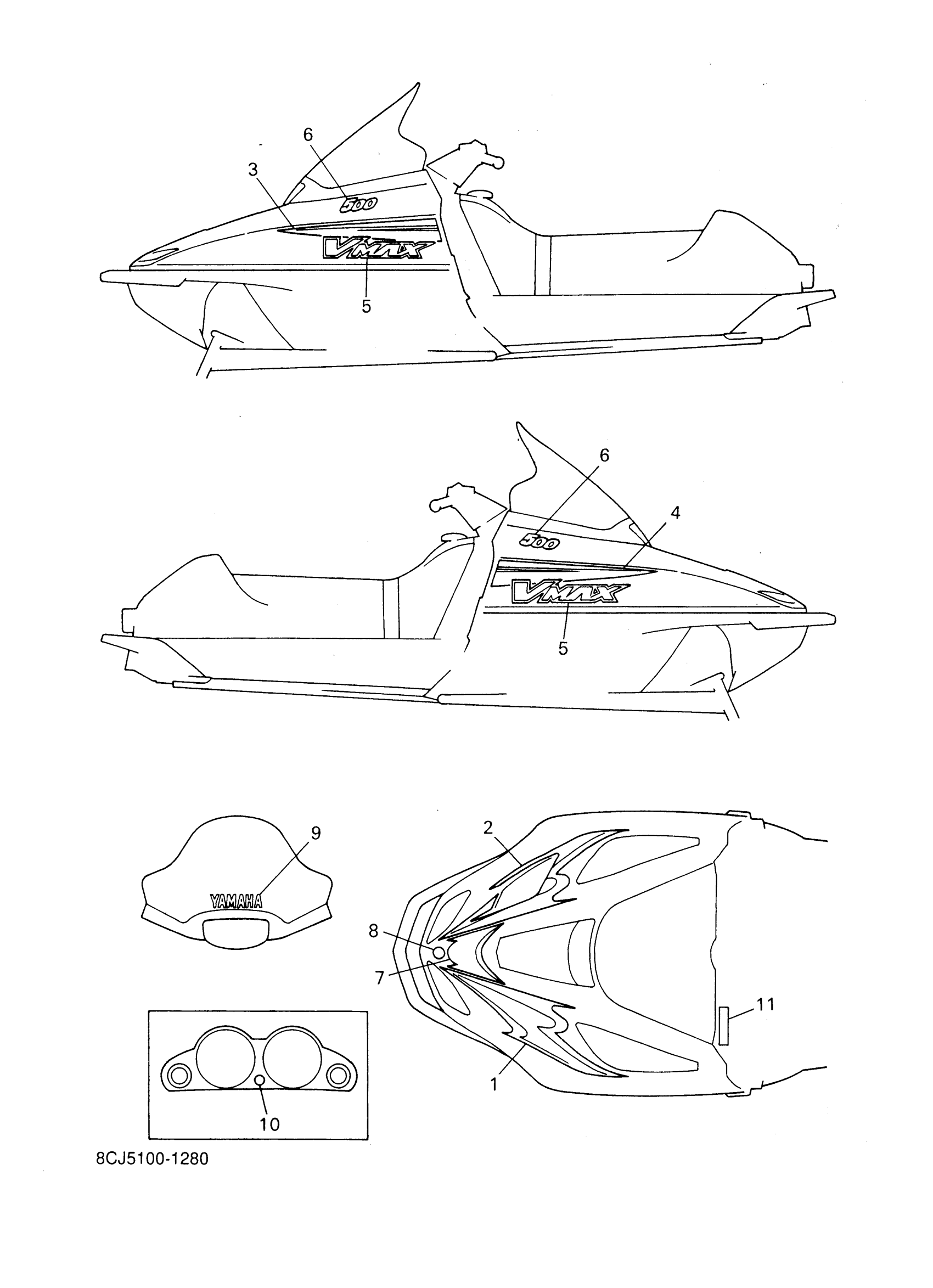

Find the part on the Emblem diagram for your 2001 Yamaha V-Max 500 (VX500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha V-Max 500 (VX500F) Emblem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRAPHIC 1

8DS-7711A-00-00

1
Out of stock

2

GRAPHIC 5

8DS-7711E-00-00

1
Out of stock

3

GRAPHIC 2

8DS-7711B-00-00

1
Out of stock

4

GRAPHIC 3

8DS-7711C-00-00

1
Out of stock

5

EMBLEM 1

8CJ-77141-00-00

1
Out of stock

6

EMBLEM 2

8CT-77142-30-00

1
Out of stock

7

GRAPHIC 4

8DS-7711D-00-00

1
Out of stock

8

EMBLEM

8AC-2414B-01-00

1
Out of stock

9

EMBLEM, YAMAHA

4TV-2153A-00-00

1
Out of stock

10

EMBLEM

4XV-2341B-00-00

1
Out of stock

11

LABEL, WARNING 1

8DS-77761-00-00

1
Out of stock
