2001 Yamaha V-Max 500 (VX500F) Bumper Diagram

← All diagrams

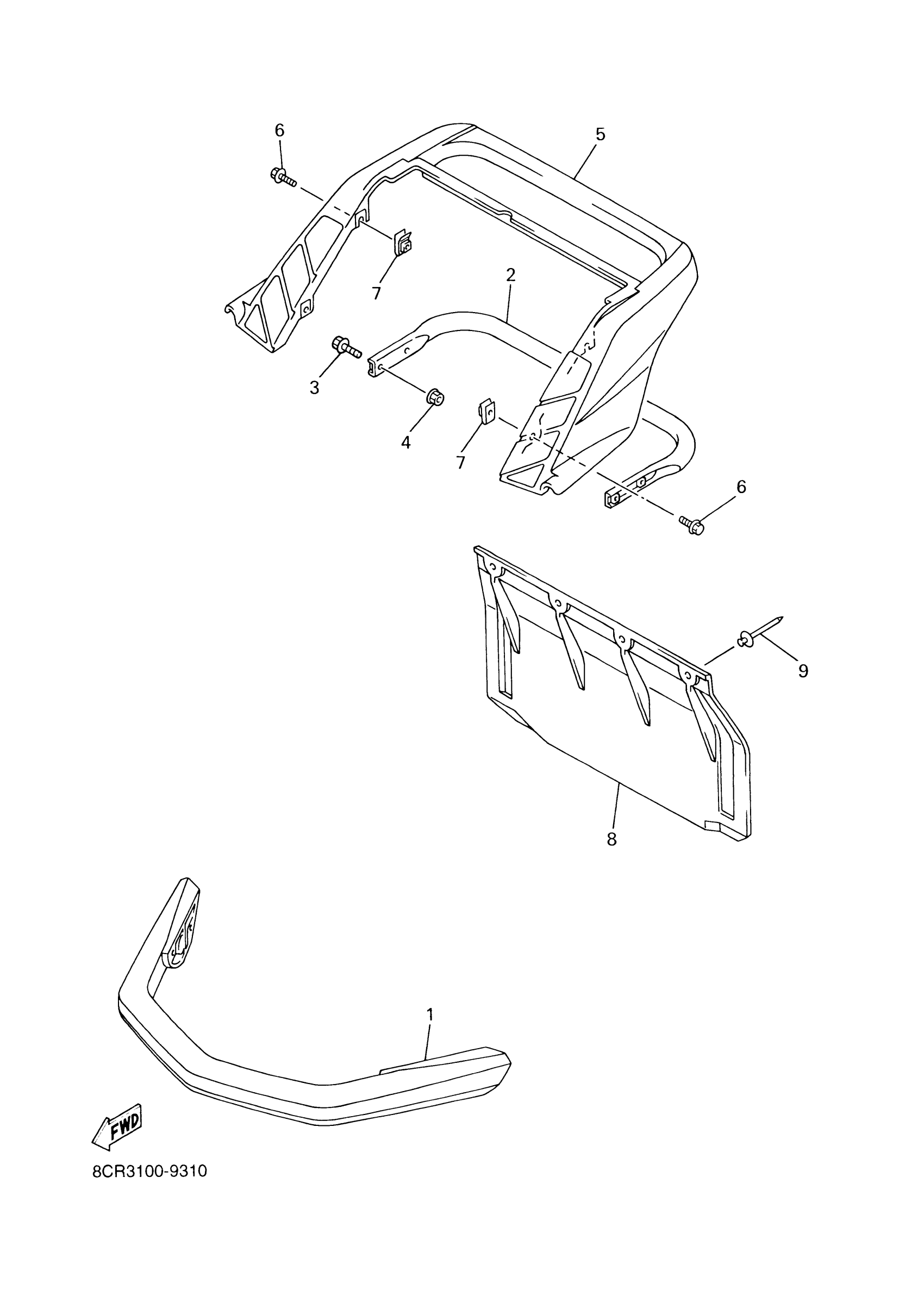

Find the part on the Bumper diagram for your 2001 Yamaha V-Max 500 (VX500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha V-Max 500 (VX500F) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8CR-77511-00-00

1
Out of stock

2

BUMPER, REAR 1

8DF-77541-00-00

1
Out of stock

3

BOLT, SMALL FLANGE

95027-08016-00

1
Out of stock

4

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

5

BUMPER, REAR 2

8CR-77542-00-00

1
Out of stock

6

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

7

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock

8

FLAP

8GW-77595-00-00

1
Out of stock

9

RIVET, BLIND(8CH)

90267-47187-00

1
Out of stock
