2001 Yamaha V-Max 500 (VX500F) Steering Gate Diagram

← All diagrams

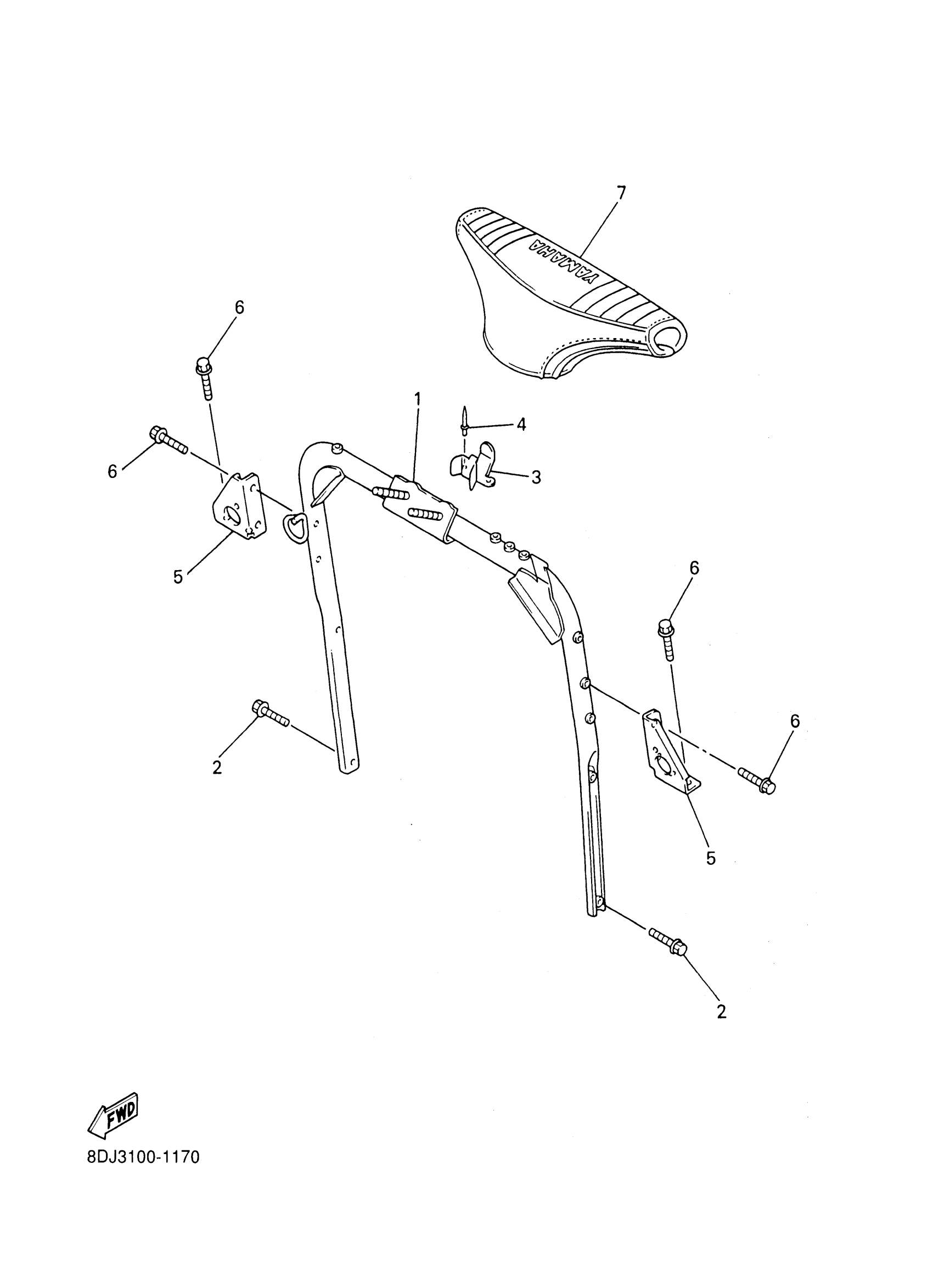

Find the part on the Steering Gate diagram for your 2001 Yamaha V-Max 500 (VX500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha V-Max 500 (VX500F) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE COMP.

8CR-23870-10-00

1
Out of stock

2

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

3

HOLDER 2

8DF-23867-00-00

1
Out of stock

4

RIVET, BLIND(3JB)

90267-48095-00

1

$2.00

In stock

5

BRACKET 1

8CR-23881-00-00

—

$9.85

In stock

6

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

7

PAD, STEERING

8CR-23815-01-00

—

$149.63

In stock
