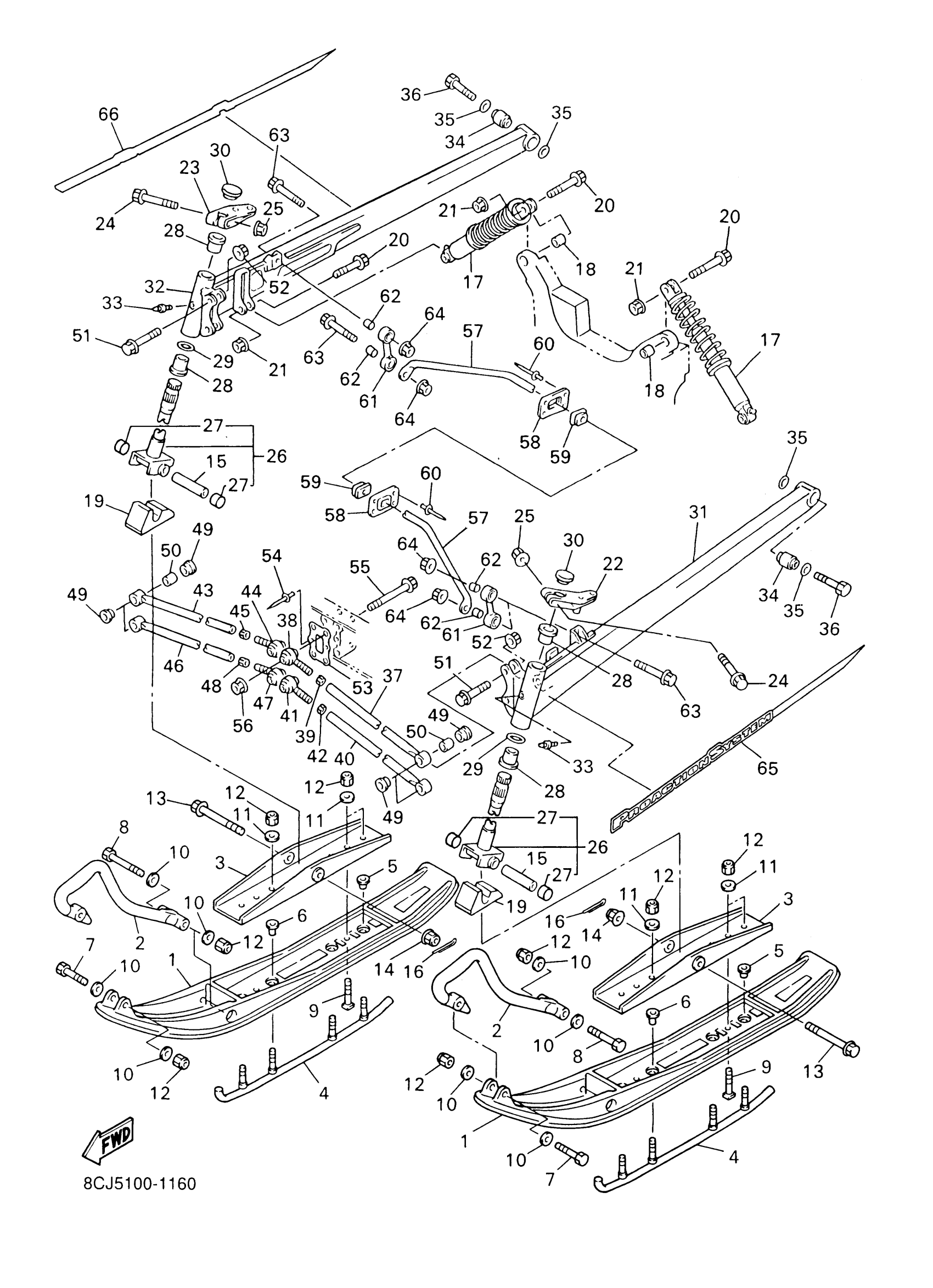

2001 Yamaha V-MAX 500 (VX500F) SKI Diagram
Find the part on the SKI diagram for your 2001 Yamaha V-MAX 500 (VX500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
3
SADDLE 1
8DM-23766-00-00
4
RUNNER 1
8DM-23731-00-00
5
BUSH, SKI 1
8DM-23751-00-00
6
BUSH, SKI 1
8DM-23751-10-00
13
BOLT, WASHER BASED(8AB)
90105-10712-00
17
ABSORBER ASSY 1
8CJ-2376A-00-00
18
BUSH
8CR-2376B-00-00
23
ARM, OUTSIDE 2
8CR-23852-00-00
26
COLUMN, SKI ASSY
8DM-23803-00-00
31
ARM, FRONT 1
8DM-2382E-10-00
32
ARM, FRONT 2
8DM-2382F-10-00
37
ARM, CONTROL 1
8CR-2384E-20-00
39
NUT, HEXAGON
95337-12600-00
41
JOINT 3
8DN-23832-00-00
42
NUT
95314-14600-00
43
ARM, CONTROL 1
8CR-2384E-20-00
45
NUT, HEXAGON
95337-12600-00
47
JOINT 3
8DN-23832-00-00
48
NUT
95314-14600-00
54
RIVET, BLIND (8J5)
90267-48057-00
55
BOLT, FLANGE
90105-124A2-00
58
COVER, STABILIZER FRONT
8CR-2386H-00-00
59
BUSH, STABILIZER FRONT
8CR-2386G-00-00
65
EMBLEM 15
8DS-77371-00-00
66
EMBLEM 16
8DS-77372-00-00
