2001 Yamaha V-MAX 500 (VX500F) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 2001 Yamaha V-MAX 500 (VX500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

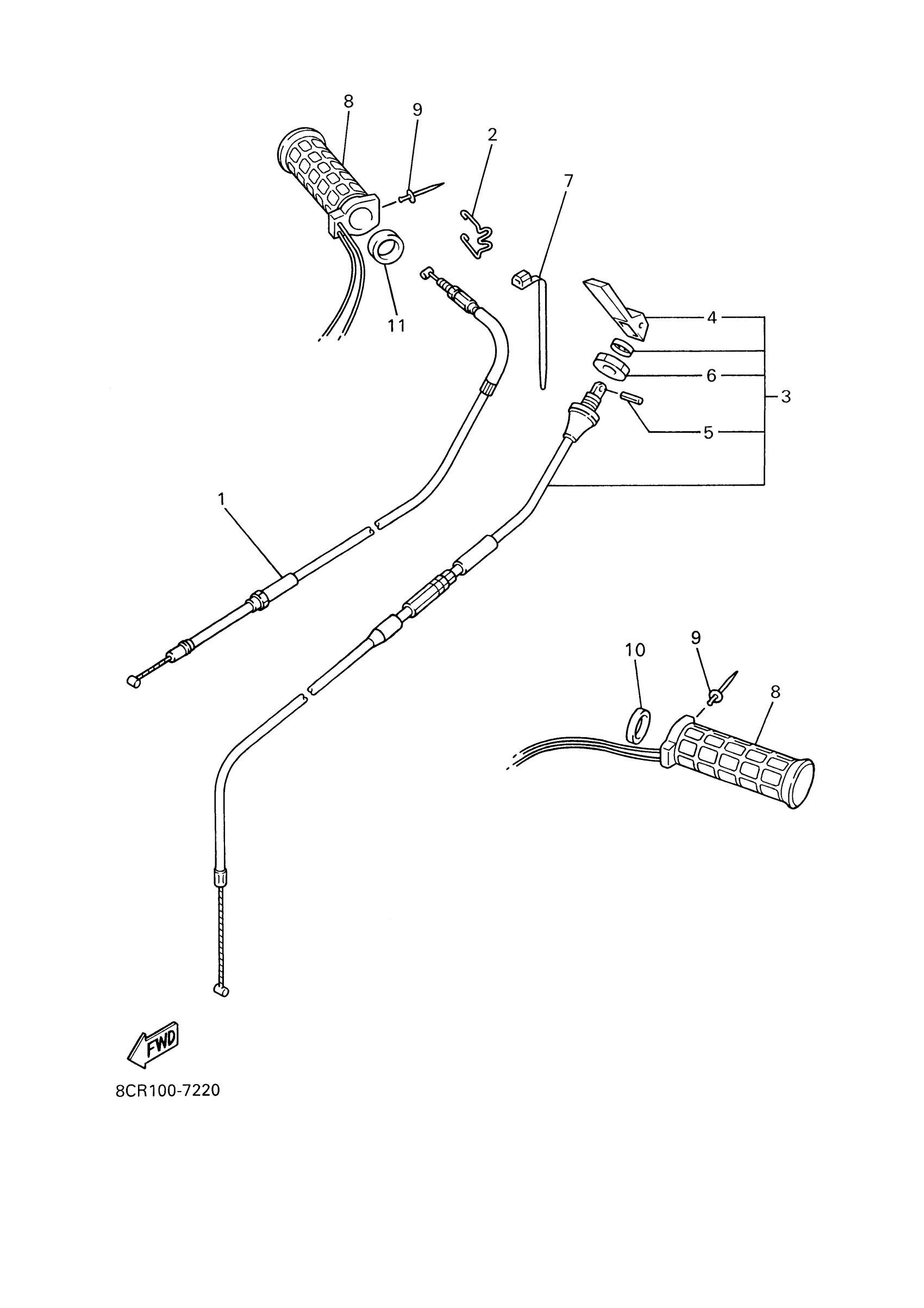

2001 Yamaha V-MAX 500 (VX500F) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

8CR-26311-01-00

1
Out of stock

2

CLIP, CABLE

8M6-26391-01-00

1
Out of stock

3

STARTER CABLE ASSY

8CR-26330-01-00

1
Out of stock

4

KNOB, STARTER

8U9-26325-00-00

1

$10.03

In stock

5

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

6

Nut

8G8-26333-00-00

—

$7.35

In stock

7

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

8

88T GRIP BLACK 1 PC

88T-26240-85-BK

1
Out of stock

9

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

10

COLLAR

90387-22726-00

1
Out of stock

11

COLLAR

90387-224F9-00

1
Out of stock
