2015 Yamaha VX (VX1100CP) Engine Mount Diagram

← All diagrams

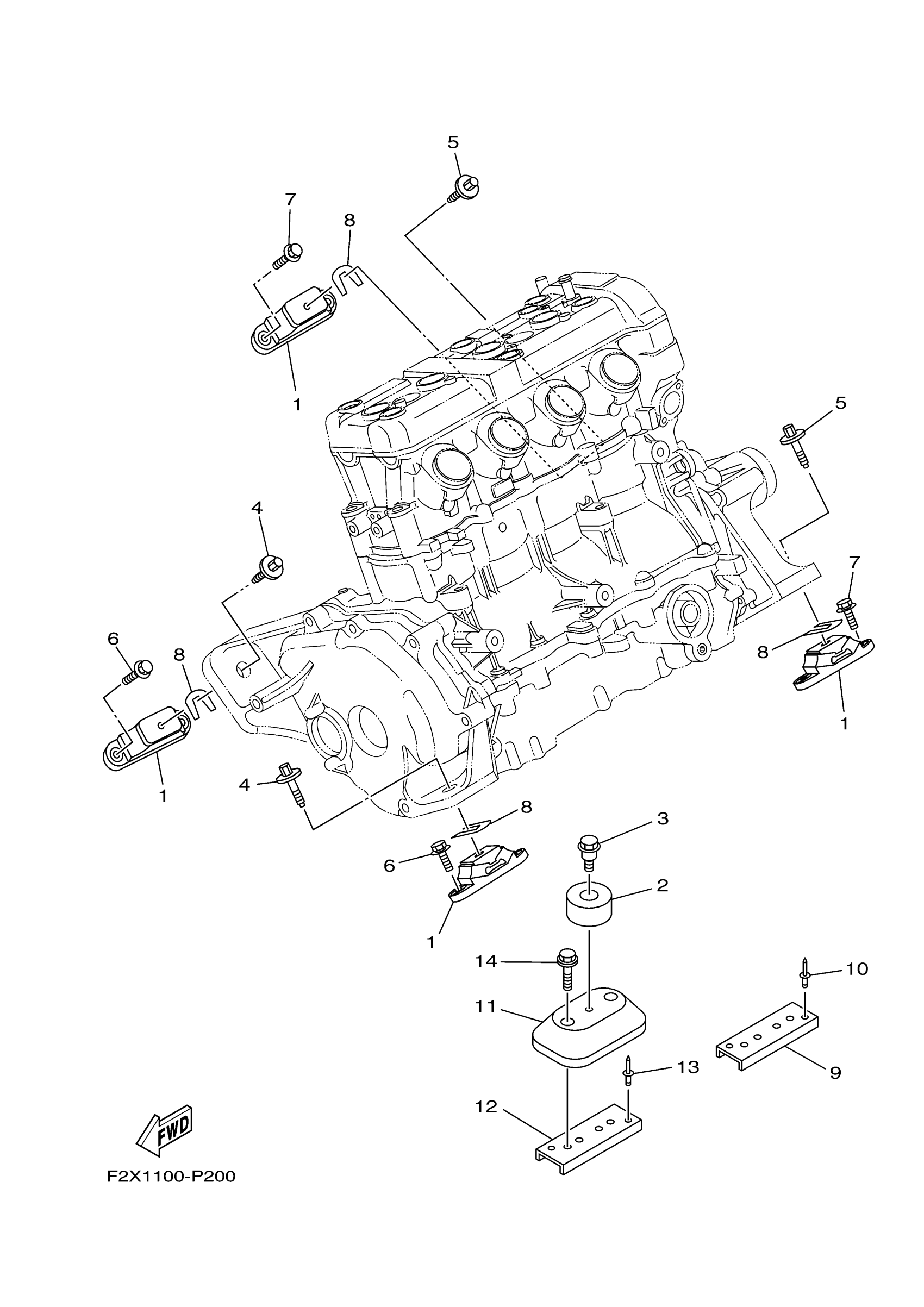

Find the part on the Engine Mount diagram for your 2015 Yamaha VX (VX1100CP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha VX (VX1100CP) Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOUNT RUBBER

67X-44517-10-00

1

$100.26

In stock

2

STOPPER, LOWER MOUNT RUBBER

6D3-44574-00-00

1

$21.99

In stock

3

BOLT

90109-06M92-00

1

$5.38

In stock

4

BOLT, WITH WASHER

90119-08860-00

1

$4.38

In stock

5

BOLT, WITH WASHER

90119-08860-00

1

$4.38

In stock

6

BOLT, WITH WASHER

90119-08829-00

1

$4.38

In stock

7

BOLT, WITH WASHER

90119-08829-00

1

$4.38

In stock

8

SHIM (T=0.1)

EU0-67354-A0-00

1

$4.45

In stock

8

SHIM (T=0.3)

EU0-67354-B0-00

1

$5.34

In stock

8

SHIM (T=0.5)

EU0-67354-C0-00

1

$4.45

In stock

8

SHIM (T=1.0)

EU0-67354-D0-00

1

$4.00

In stock

8

SHIM (T=2.0)

EU0-67354-E0-00

1

$4.00

In stock

9

PLATE

F2S-U732B-00-00

1
Out of stock

10

RIVET, BLIND

90267-489U2-00

1

$1.62

In stock

11

SPACER,ENGINE MOUNT

F2N-U721B-00-00

1

$27.68

In stock

12

PLATE

F2N-U732B-10-00

1

$6.31

In stock

13

RIVET, BLIND

90267-489U2-00

1

$1.62

In stock

14

BOLT, WITH WASHER

90119-06892-00

1

$4.31

In stock
