2015 Yamaha VX (VX1100CP) Crankcase Diagram

← All diagrams

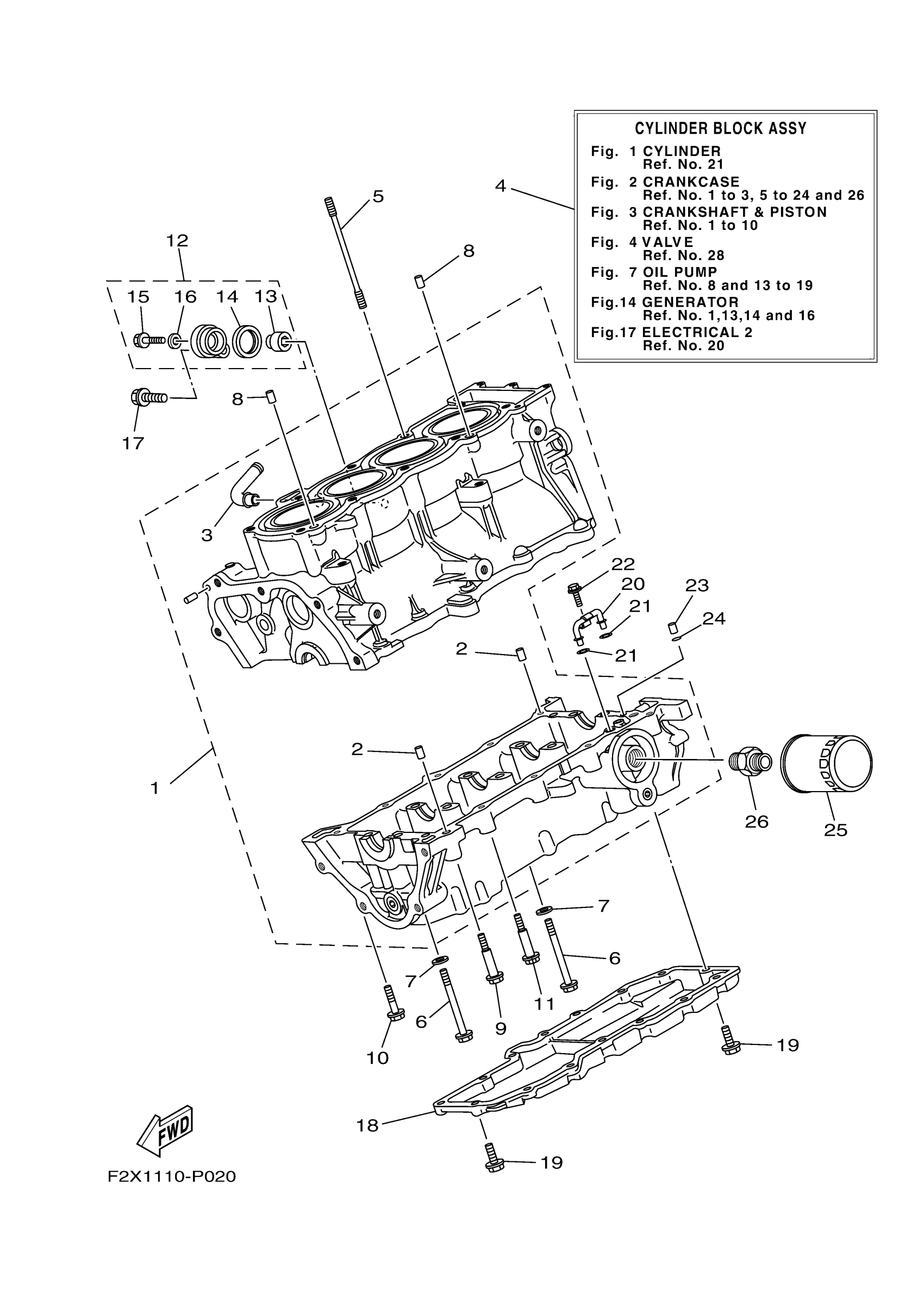

Find the part on the Crankcase diagram for your 2015 Yamaha VX (VX1100CP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha VX (VX1100CP) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

6BU-15100-00-00

1
Out of stock

2

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

3

. NIPPLE

6D3-51129-00-00

1
Out of stock

4

CYLINDER BLOCK ASSY

6BU-W009B-01-94

1
Out of stock

5

BOLT, STUD

90116-10058-00

1
Out of stock

6

BOLT, WASHER BASED

90105-093A5-00

1
Out of stock

7

WASHER, PLATE(1AA)

90201-096J9-00

1
Out of stock

8

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

9

BOLT

90109-06051-00

1
Out of stock

10

BOLT, FLANGE(3JP)

95814-06070-00

1
Out of stock

11

BOLT, FLANGE

90105-06M17-00

1
Out of stock

12

ANODE COVER ASSY

69J-11301-11-00

1
Out of stock

13

. ANODE

68V-11325-02-00

1
Out of stock

14

GROMMET, ANODE

67F-11328-01-00

1
Out of stock

15

BOLT (689)

90105-06M07-00

1
Out of stock

16

. GASKET

90430-06M03-00

1
Out of stock

17

BOLT, HEXAGON W/W DEEP RECESS

97E95-08540-00

1
Out of stock

18

PAN, OIL

6B6-1310A-01-00

1
Out of stock

19

BOLT, WITH WASHER(61B)

97513-06520-00

—
Out of stock

20

PIPE, DELIVERY 1

60E-13161-00-00

1
Out of stock

21

O-RING(26H)

93210-06667-00

—
Out of stock

22

BOLT, FLANGE(4MY)

95027-06010-00

—
Out of stock

23

PIN, DOWEL

99530-08012-00

1
Out of stock

24

. O-RING

93210-08001-00

1
Out of stock

25

ELEMENT ASSY, OIL

5GH-13440-90-00

—
Out of stock

26

BOLT, UNION

90401-20007-00

1
Out of stock
