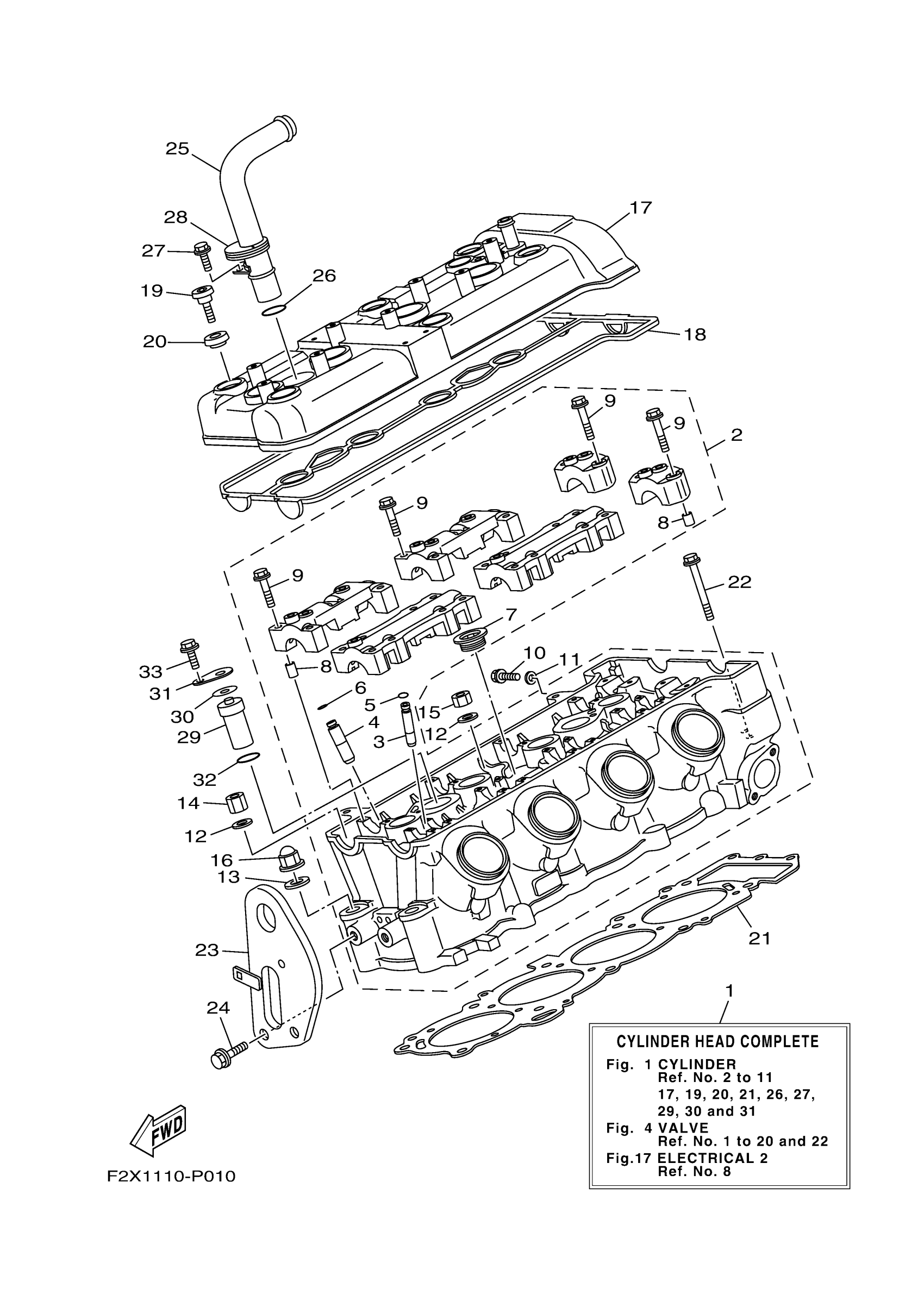

Yamaha VX1100CP (VX) F2X7 2015 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD COMPLETE

6EX-W009A-01-94

Unavailable

2

CYLINDER HEAD ASSY

6D3-11102-00-00

$2,710.59

3

GUIDE, INTAKE VALVE

3TJ-11133-10-00

$61.97

4

GUIDE, INTAKE VALVE

1WG-11133-11-00

$46.74

5

CIRCLIP(1HX)

93440-07149-00

$6.23

6

CIRCLIP(1WG)

93440-10153-00

$1.95

7

PLUG, STRAIGHT SCREW

90340-27001-00

$16.41

8

PIN, DOWEL(3XW)

91808-16023-00

$5.26

9

. BOLT, FLANGE

90105-06026-00

Unavailable

10

BOLT, FLANGE(2UJ)

95024-06012-00

$3.43

11

GASKET 256113960000

90430-06014-00

Unavailable

12

WASHER, PLATE

90201-10033-00

$5.84

13

WASHER, PLATE

90201-10019-00

$2.95

14

NUT

90179-10006-00

$7.11

15

NUT (26H)

90179-10414-00

$8.90

16

NUT, CAP

90176-10001-00

$3.33

17

COVER, CYLINDER HEAD 1

6EX-11191-00-00

$157.56

18

GASKET, HEAD COVER 1

60E-11193-01-00

$53.70

19

BOLT(4BP)

90109-066F0-00

Unavailable

20

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

21

. GASKET, CYLINDER HEAD 1

6D3-11181-00-00

$95.40

22

BOLT, WITH WASHER

97513-06555-00

$2.80

23

BRACKET, REFLECTOR 1

6D3-85132-00-00

$22.71

24

BOLT, WITH WASHER(61B)

97513-08520-00

Unavailable

25

PIPE 2

6EX-12482-00-00

$34.49

26

O-RING (716)

93210-18417-00

Unavailable

27

BOLT,SOCKET

91317-06016-00

Unavailable

28

SEAL, PIPE 1

6EX-12494-00-00

$5.00

29

PIPE 3

60E-12483-10-00

$21.95

30

GASKET 1

60E-12474-01-00

Unavailable

31

PLATE 2

60E-12537-01-00

$2.73

32

O-RING (716)

93210-18417-00

Unavailable

33

BOLT,SOCKET

91317-06016-00

Unavailable
