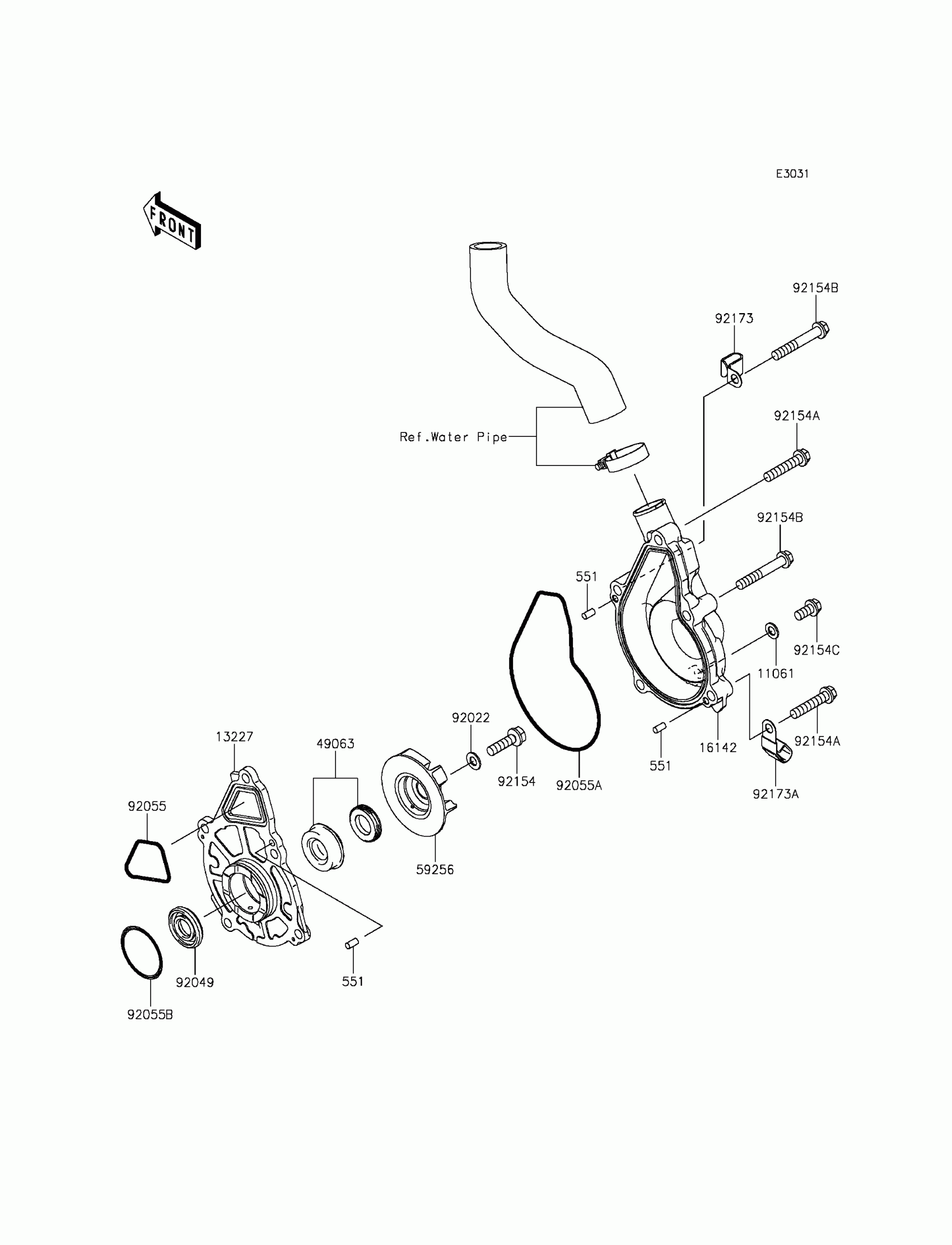

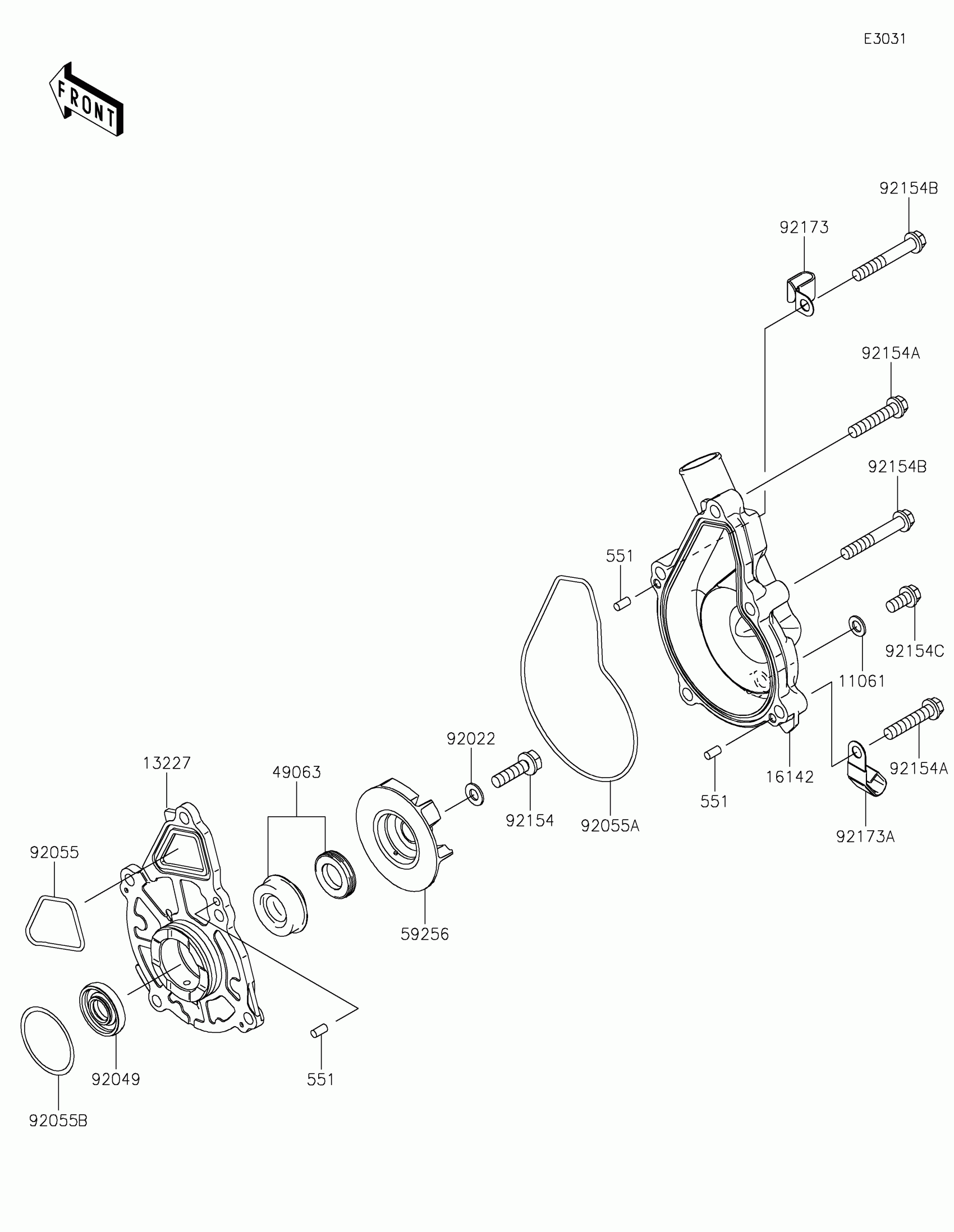

2016 Kawasaki Vulcan® S Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2016 Kawasaki Vulcan® S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Vulcan® S Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

551

PIN-DOWEL,4X8

551A0408

1

$0.80

In stock

11061

GASKET

11061-0107

1

$2.12

In stock

13227

HOUSING

13227-0023

1

$45.18

In stock

16142

COVER-PUMP

16142-0723

1

$65.11

In stock

49063

SEAL-MECHANICAL

49063-1055

1

$18.61

In stock

59256

IMPELLER

59256-0009

1

$24.20

In stock

92022

1

$3.13

In stock

92049

SEAL-OIL,12X28.55X5

92049-0115

1
Out of stock

92055

RING-O,CASE-HOUSING

92055-0082

1

$3.11

In stock

92055A

1

$6.90

In stock

92055B

RING-O,33.2MM

92055-1155

1

$11.45

In stock

92154

BOLT,FLANGED,6X22

92154-1069

1

$2.44

In stock

92154A

BOLT,FLANGED,6X30

92154-1773

1

$1.10

In stock

92154B

BOLT,FLANGED,6X40

92154-1774

1

$1.32

In stock

92154C

BOLT,FLANGED,6X12

92154-1777

1

$0.93

In stock

92173

CLAMP

92173-0082

1

$5.42

In stock

92173A

CLAMP,HARNESS

92173-1368

1

$5.46

In stock
